NTP0: x86 SBC, NTPSec, NTP-disciplined (stratum 2)
Seven Day - September 14, 2026 03:00 UTC

Report generated: Mon Sep 14 03:08:09 2026 UTC
Start Time: Mon Sep 7 03:08:07 2026 UTC
End Time: Mon Sep 14 03:08:07 2026 UTC
Report Period: 7.0 days

Return to It's About Time

Section Time Frame NTP Server
Local Clock Time/Frequency Offsets One Hour NTP0: x86 SBC, NTPSec, NTP-disciplined (stratum 2)
Local RMS Time Jitter Three Hour NTP1: RPi4B, Uputronics M8, NTPSec
Local RMS Frequency Jitter Six Hour NTP2: CM4, Bollar ZED-F9T, NTPSec
Local Clock Time Offset Histogram Twelve Hour NTP3: CM5, TimeHat LEA-M8T, NTPSec
Local Temperatures One Day NTP4: SecureSync, Rubidium, NTP (Classic)
Local Frequency/Temp Two Day NTP5: RPi3B+, Uputronics MAX-M8Q, NTPSec
Local GPS Three Day NTP6: CM4, TimeBeat OTC Mini, PTP
Server Offsets Seven Day NTP7: LeoNTP, Standalone GNSS, Firmware
Server Jitters Fourteen Day (Updated Daily)
Summary One Month (Updated Daily)
NTPQ Stats
GNSS Performance

NTP0 runs on a low-power x86 single board computer with no GNSS or PPS hardware; it is disciplined over the network by NTP only (stratum 2, from the GNSS fleet). It processes and renders the NTPViz reports and lets us observe the effects of CPU load on NTP jitter.

If graphs don't match report time above, force refresh the browser. The images have been cached.


Local Clock Time/Frequency Offsets

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -97.493 -55.984 -43.251 1.379 46.810 67.020 163.209 90.061 123.004 27.124 1.329 µs 0.1836 3.146
Local Clock Frequency Offset -5.127 -3.410 -2.730 -1.467 -0.356 0.140 1.870 2.374 3.550 0.737 -1.506 ppm -0.236 3.389

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 4.984 13.637 22.106 34.958 50.386 58.901 90.223 28.280 45.264 8.789 35.396 µs 0.2752 3.907

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 0.099 0.221 0.374 0.615 0.913 1.068 1.717 0.539 0.847 0.168 0.625 ppm 0.3493 3.846

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -97.493 -55.984 -43.251 1.379 46.810 67.020 163.209 90.061 123.004 27.124 1.329 µs 0.1836 3.146

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Local Temperatures

local temps plot

Local temperatures. These will be site-specific depending upon what temperature sensors you collect data from. Temperature changes affect the local clock crystal frequency and stability. The math of how temperature changes frequency is complex, and also depends on crystal aging. So there is no easy way to correct for it in software. This is the single most important component of frequency drift.

The Local Temperatures are from field 3 from the tempstats log file.



Local Frequency/Temp

local freq temps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -5.127 -3.410 -2.730 -1.467 -0.356 0.140 1.870 2.374 3.550 0.737 -1.506 ppm -0.236 3.389
Temp ZONE0 53.000 54.000 60.000 62.000 63.000 63.000 64.000 3.000 9.000 1.582 62.068 °C
Temp ZONE1 54.000 56.000 61.000 64.000 65.000 65.000 66.000 4.000 9.000 1.662 63.458 °C

The frequency offsets and temperatures. Showing frequency offset (red, in parts per million, scale on right) and the temperatures.

These are field 4 (frequency) from the loopstats log file, and field 3 from the tempstats log file.



Server Offsets

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.

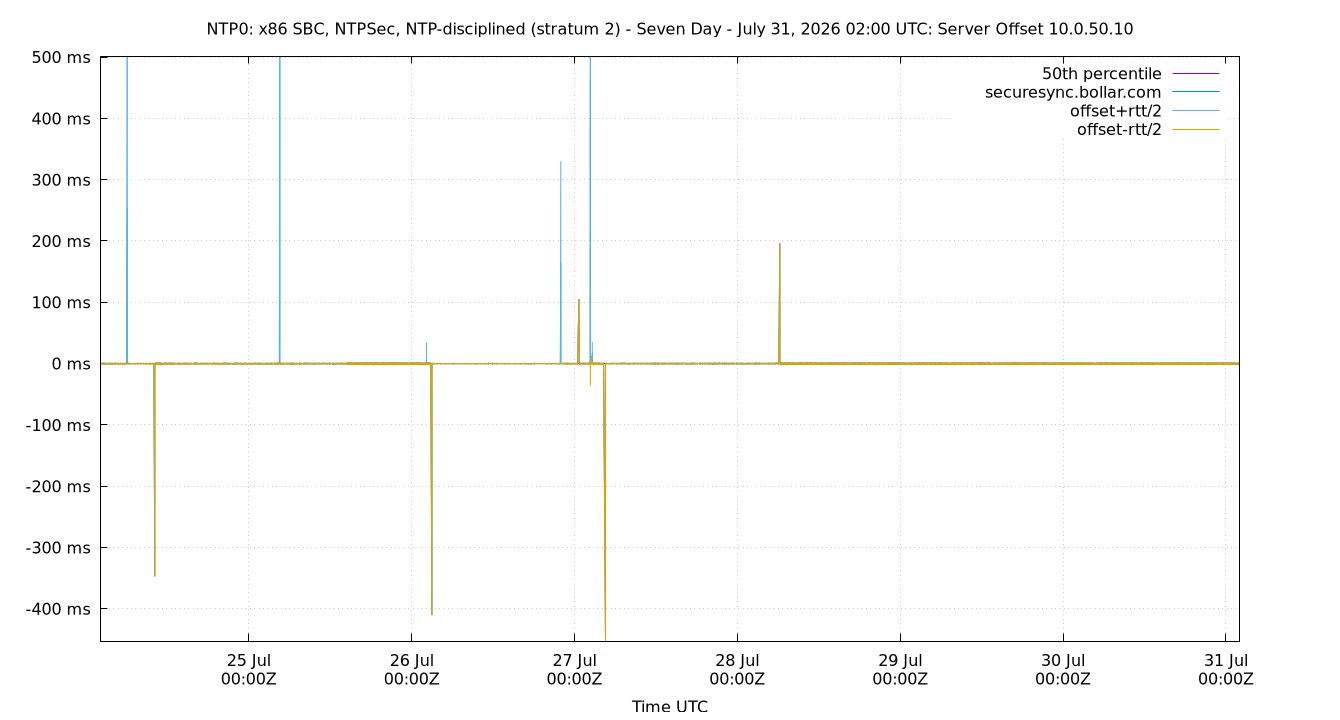

Server Offset 10.0.50.10

peer offset 10.0.50.10 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.10 -97.494 -55.985 -43.252 1.380 46.811 67.021 163.210 90.063 123.006 27.125 1.329 µs 0.1836 3.146

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

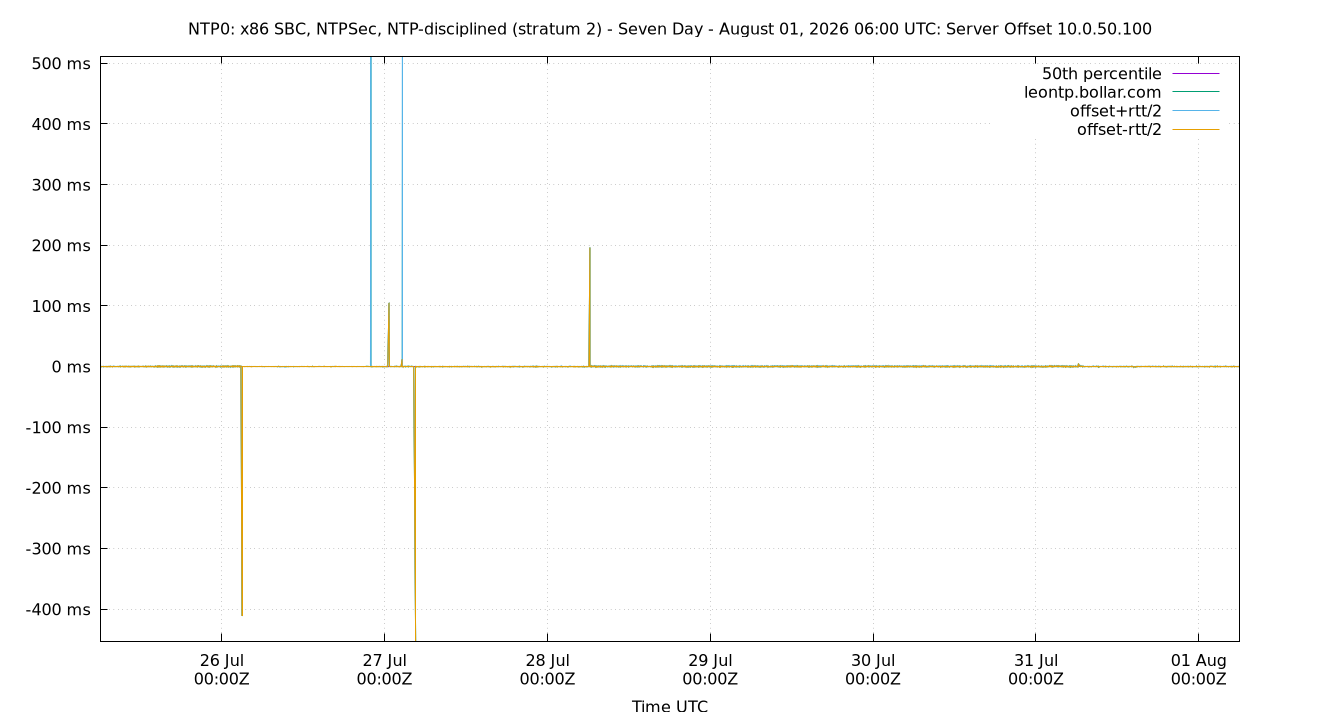

Server Offset 10.0.50.100

peer offset 10.0.50.100 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.100 -15.800 15.112 24.601 51.382 94.420 114.589 197.839 69.819 99.477 22.409 54.690 µs 0.6919 3.617

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.20

peer offset 10.0.50.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.20 -55.914 -17.404 -8.225 18.378 60.651 79.243 177.126 68.876 96.647 21.895 21.766 µs 0.6734 3.58

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

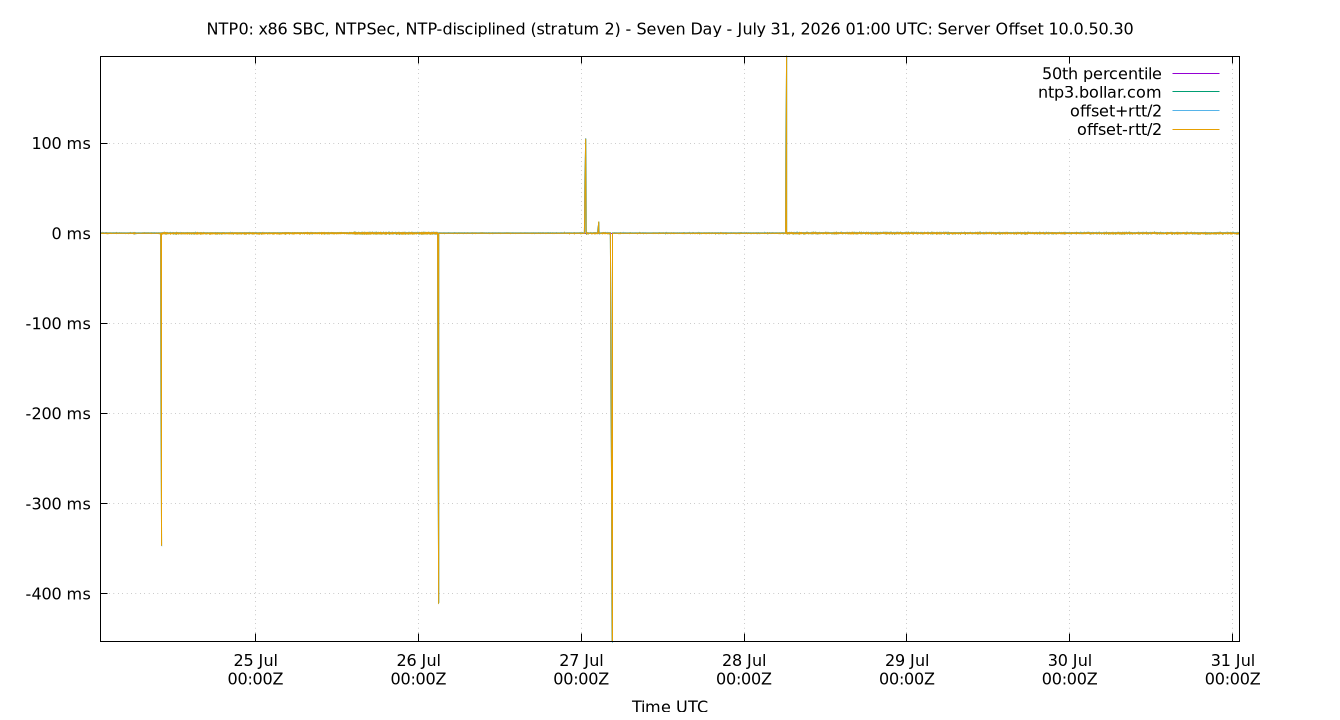

Server Offset 10.0.50.30

peer offset 10.0.50.30 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.30 -31.946 2.543 12.812 45.125 89.225 108.323 195.336 76.413 105.780 23.679 47.794 µs 0.5102 3.438

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.40

peer offset 10.0.50.40 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.40 -49.705 -14.562 -4.810 22.077 64.323 84.312 185.439 69.133 98.874 22.105 25.427 µs 0.6784 3.714

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

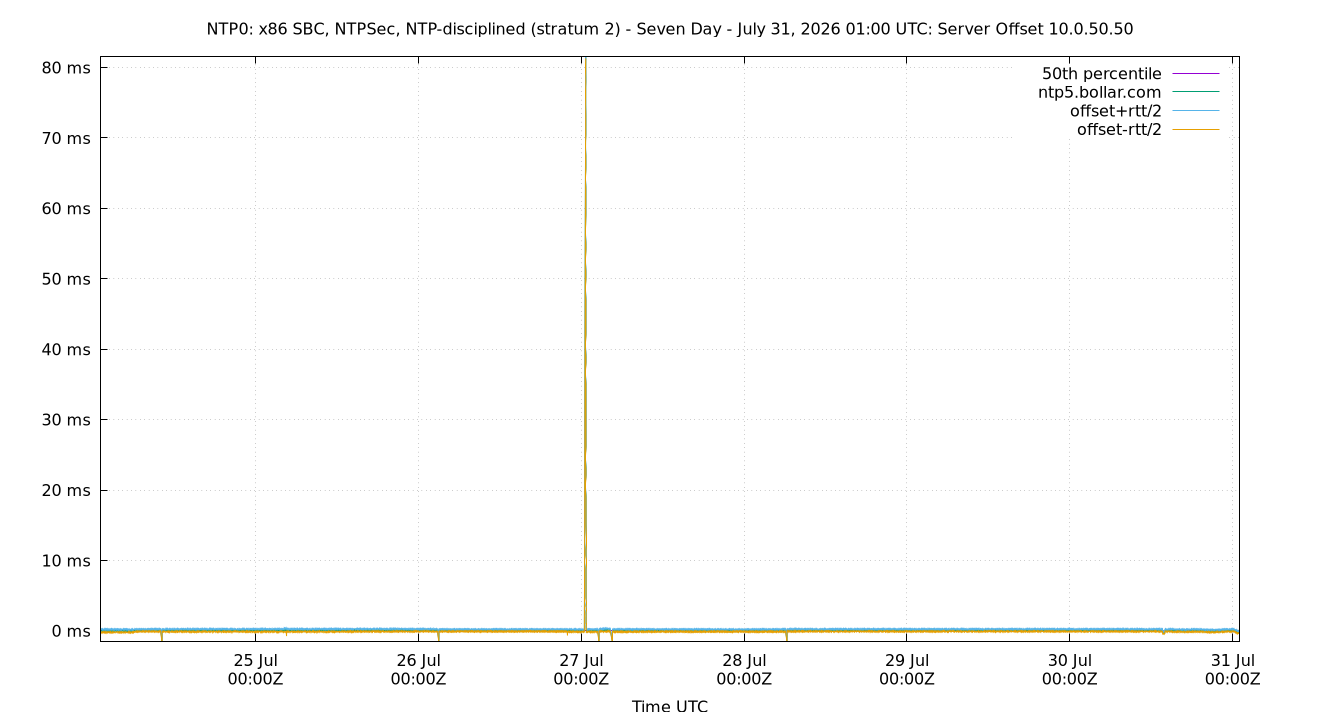

Server Offset 10.0.50.50

peer offset 10.0.50.50 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.50 -19.456 25.947 38.949 72.394 117.684 137.808 218.282 78.735 111.861 24.492 74.987 µs 0.4709 3.433

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Jitters

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.10

peer jitter 10.0.50.10 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.10 1.027 3.559 6.074 29.259 63.956 83.501 808.100 57.882 79.942 20.975 31.204 µs 6.361 153.2

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

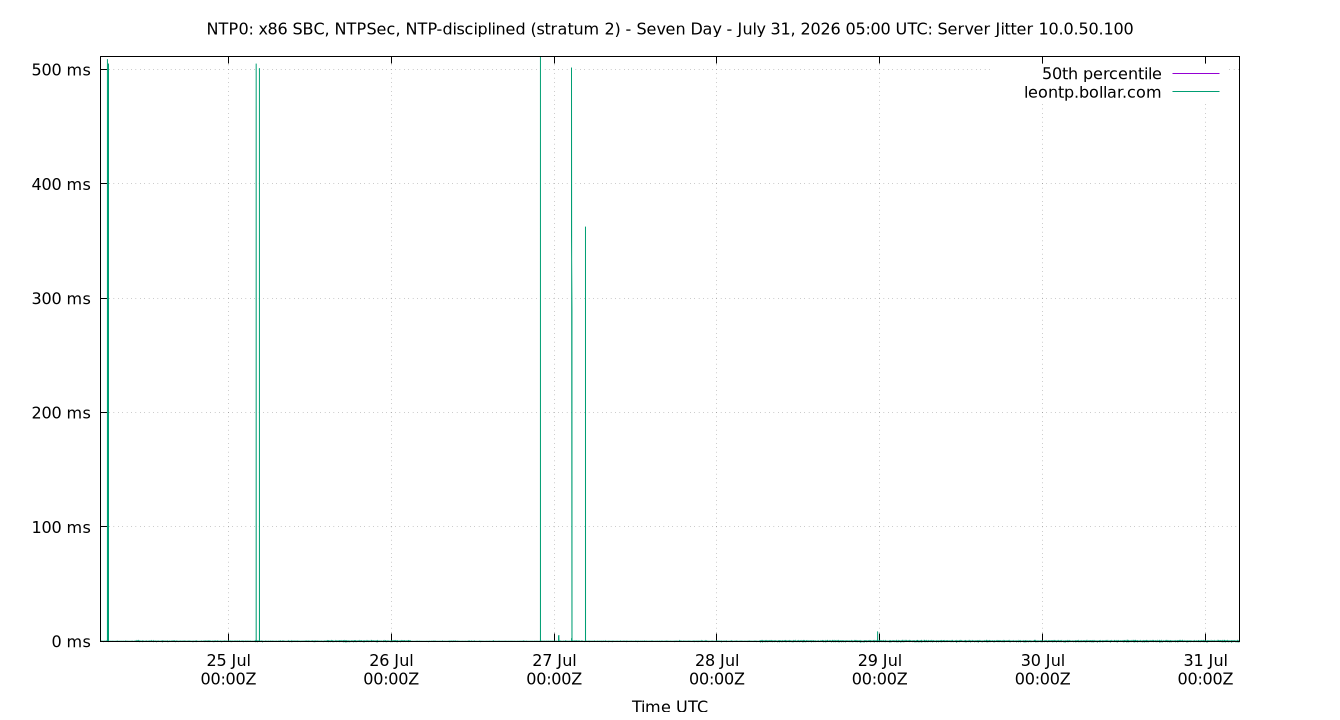

Server Jitter 10.0.50.100

peer jitter 10.0.50.100 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.100 0.416 1.615 2.539 11.551 37.623 53.453 873.335 35.084 51.838 13.613 14.771 µs 14.7 743.2

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

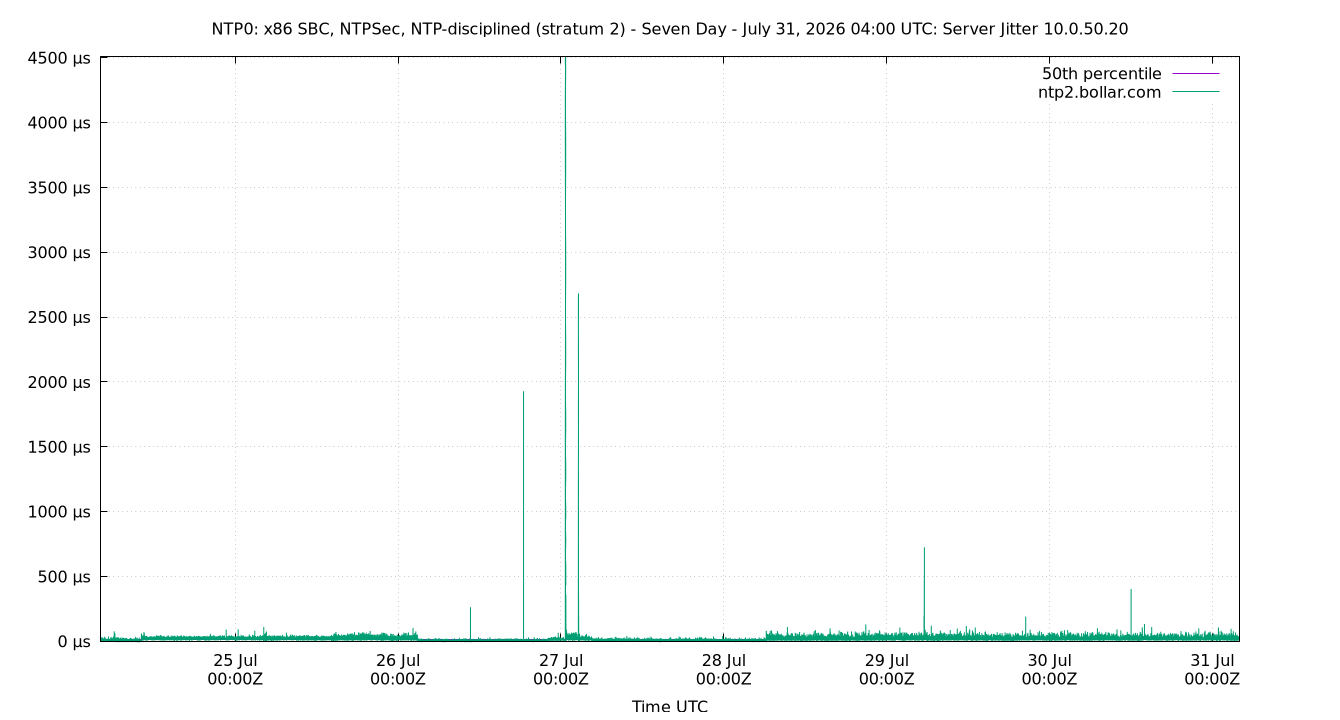

Server Jitter 10.0.50.20

peer jitter 10.0.50.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.20 0.000 5.699 8.746 20.540 46.588 64.390 650.819 37.842 58.691 14.027 23.309 µs 10.18 366.3

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

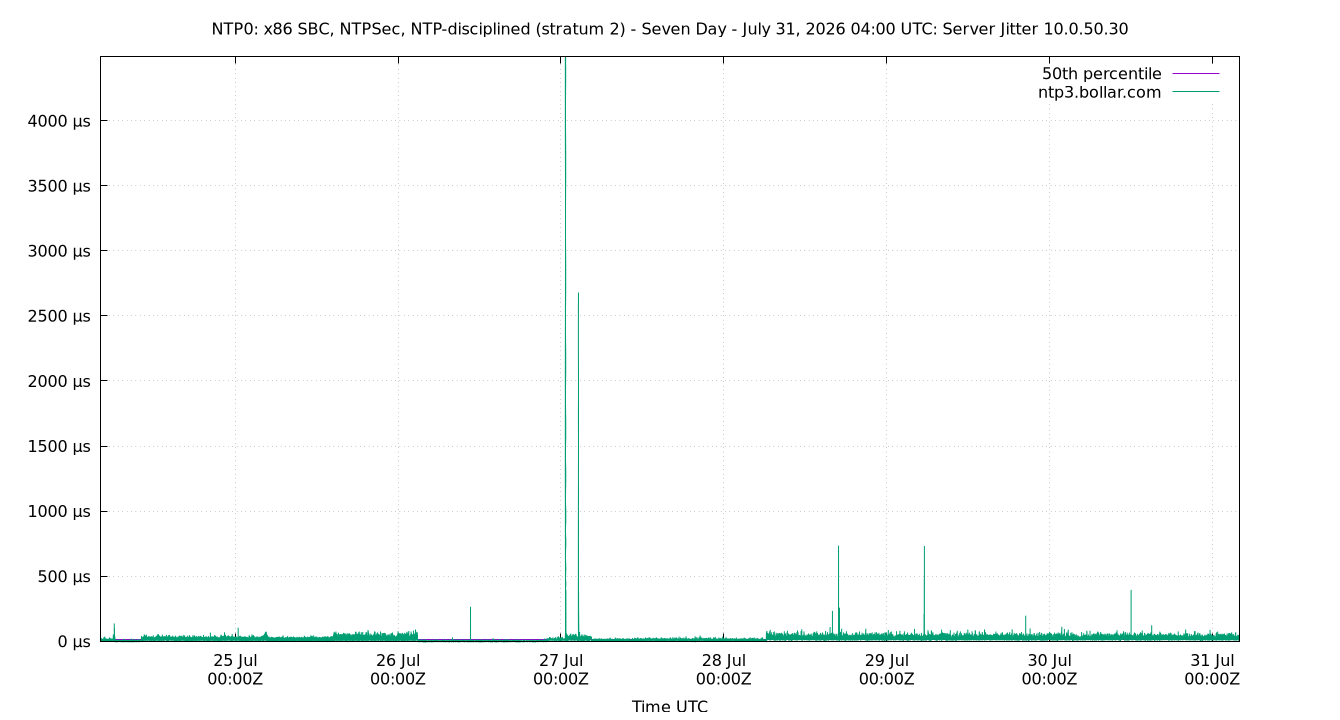

Server Jitter 10.0.50.30

peer jitter 10.0.50.30 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.30 0.000 3.835 6.014 20.498 50.350 68.719 848.781 44.336 64.884 16.401 23.367 µs 12.44 501.2

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

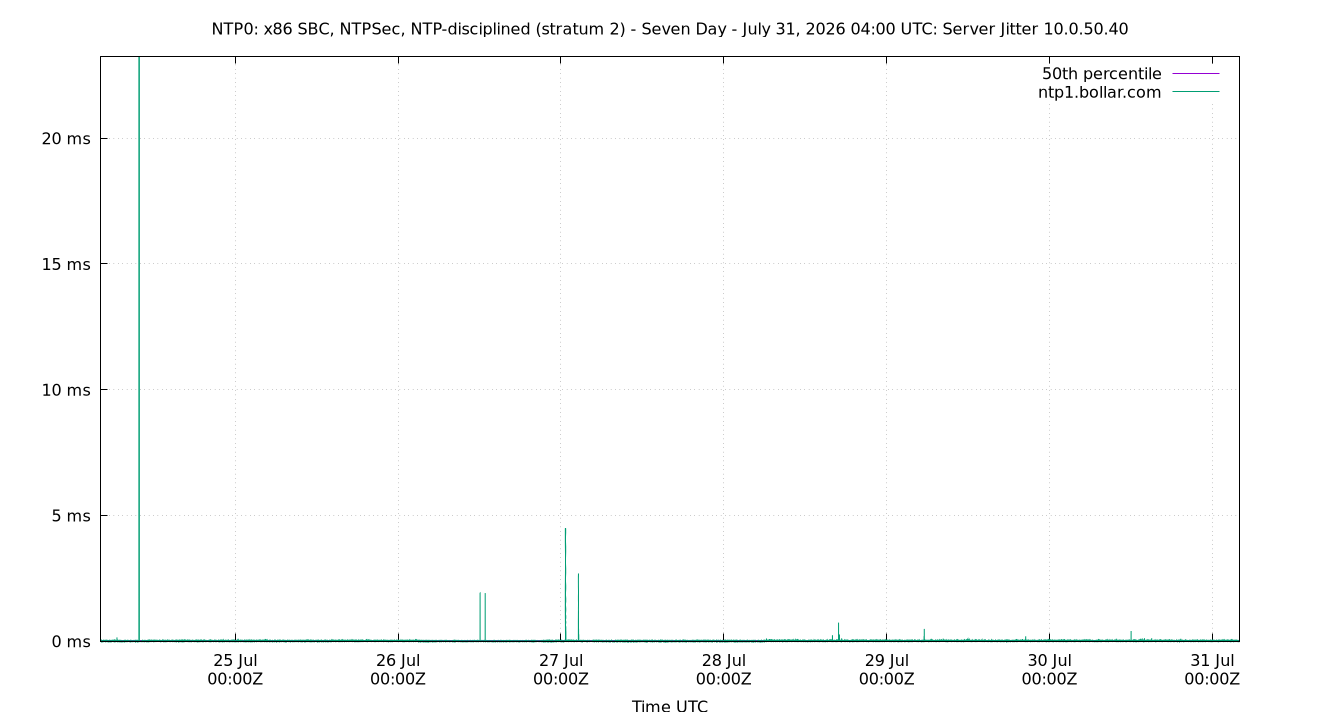

Server Jitter 10.0.50.40

peer jitter 10.0.50.40 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.40 0.000 5.261 7.787 18.661 45.617 62.103 845.152 37.830 56.842 15.070 21.782 µs 16.04 712.1

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

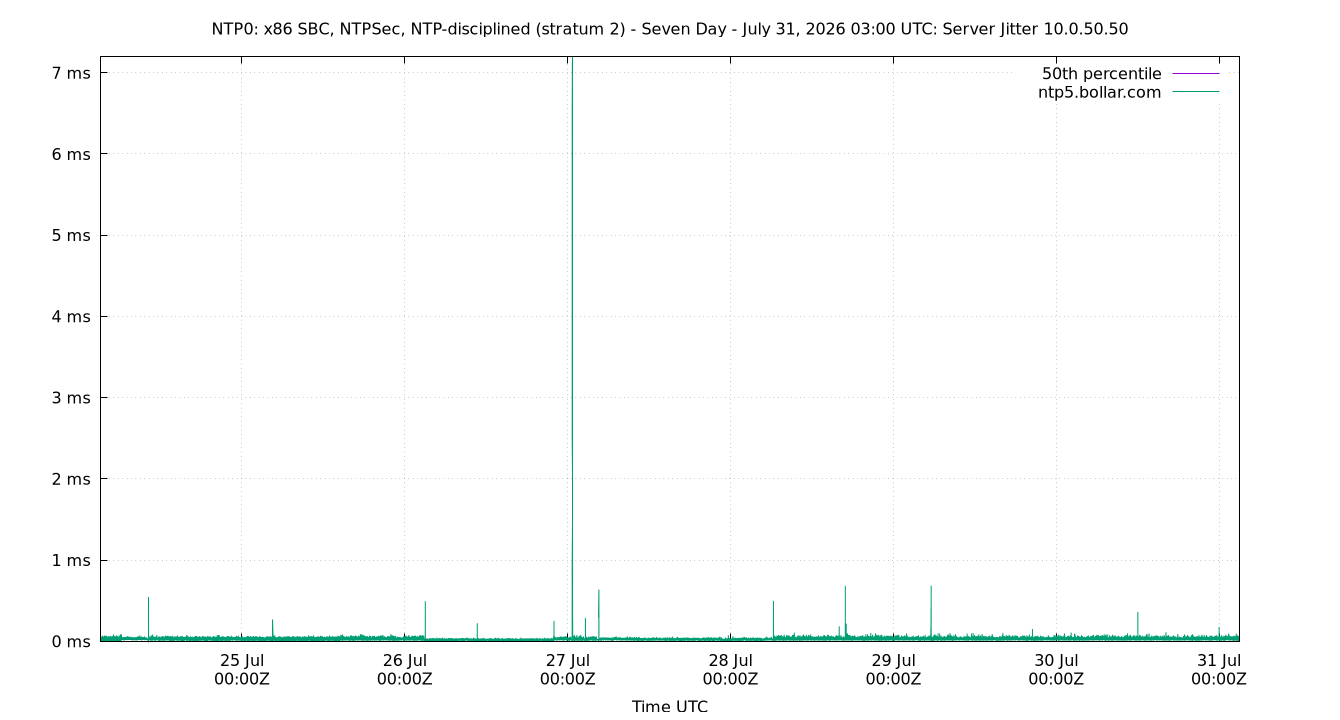

Server Jitter 10.0.50.50

peer jitter 10.0.50.50 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.50 1.974 8.239 11.605 23.696 48.684 64.675 789.254 37.079 56.436 13.146 26.185 µs 9.351 389.9

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -5.127 -3.410 -2.730 -1.467 -0.356 0.140 1.870 2.374 3.550 0.737 -1.506 ppm -0.236 3.389
Local Clock Time Offset -97.493 -55.984 -43.251 1.379 46.810 67.020 163.209 90.061 123.004 27.124 1.329 µs 0.1836 3.146
Local RMS Frequency Jitter 0.099 0.221 0.374 0.615 0.913 1.068 1.717 0.539 0.847 0.168 0.625 ppm 0.3493 3.846
Local RMS Time Jitter 4.984 13.637 22.106 34.958 50.386 58.901 90.223 28.280 45.264 8.789 35.396 µs 0.2752 3.907
Server Jitter 10.0.50.10 1.027 3.559 6.074 29.259 63.956 83.501 808.100 57.882 79.942 20.975 31.204 µs 6.361 153.2
Server Jitter 10.0.50.100 0.416 1.615 2.539 11.551 37.623 53.453 873.335 35.084 51.838 13.613 14.771 µs 14.7 743.2
Server Jitter 10.0.50.20 0.000 5.699 8.746 20.540 46.588 64.390 650.819 37.842 58.691 14.027 23.309 µs 10.18 366.3
Server Jitter 10.0.50.30 0.000 3.835 6.014 20.498 50.350 68.719 848.781 44.336 64.884 16.401 23.367 µs 12.44 501.2
Server Jitter 10.0.50.40 0.000 5.261 7.787 18.661 45.617 62.103 845.152 37.830 56.842 15.070 21.782 µs 16.04 712.1
Server Jitter 10.0.50.50 1.974 8.239 11.605 23.696 48.684 64.675 789.254 37.079 56.436 13.146 26.185 µs 9.351 389.9
Server Offset 10.0.50.10 -97.494 -55.985 -43.252 1.380 46.811 67.021 163.210 90.063 123.006 27.125 1.329 µs 0.1836 3.146
Server Offset 10.0.50.100 -15.800 15.112 24.601 51.382 94.420 114.589 197.839 69.819 99.477 22.409 54.690 µs 0.6919 3.617
Server Offset 10.0.50.20 -55.914 -17.404 -8.225 18.378 60.651 79.243 177.126 68.876 96.647 21.895 21.766 µs 0.6734 3.58
Server Offset 10.0.50.30 -31.946 2.543 12.812 45.125 89.225 108.323 195.336 76.413 105.780 23.679 47.794 µs 0.5102 3.438
Server Offset 10.0.50.40 -49.705 -14.562 -4.810 22.077 64.323 84.312 185.439 69.133 98.874 22.105 25.427 µs 0.6784 3.714
Server Offset 10.0.50.50 -19.456 25.947 38.949 72.394 117.684 137.808 218.282 78.735 111.861 24.492 74.987 µs 0.4709 3.433
Temp ZONE0 53.000 54.000 60.000 62.000 63.000 63.000 64.000 3.000 9.000 1.582 62.068 °C
Temp ZONE1 54.000 56.000 61.000 64.000 65.000 65.000 66.000 4.000 9.000 1.662 63.458 °C
Summary as CSV file

Our production NTP servers share the same mast-mounted Tallysman Accutenna® TW3972 Triple Band GNSS Antenna + L-band Correction Services antenna using a Tallysman TW164 1-to-4 Port Smart Power GNSS Signal Splitter. No external NTP servers are contacted and all servers, with the exception of NTP6, the LeoNTP 1200, poll each other. Internal NTP clients poll NTP4 or NTP6.

The LeoNTP 1200 is a black-box appliance that doesn't support timing reporting. Its status can be checked by viwing the Server Jitter & Offset from any of the other servers. It can be found at NTP7 or leontp.bollar.com (10.0.50.100). The LeoNTP link above will take you to the Server Jitter between the LeoNTP and the currently selected server.

NTPQ Stats

NTPQ Statistics are not not available for this NTP server.'

GNSS Performance

GNSS Performance is not available for this NTP server.'

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
Skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the FIsher-Pearson moment of skewness. There are other different ways to calculate Skewness Wikipedia describes Skewness best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
Kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses standard Kurtosis. There are other different ways to calculate Kurtosis.
A normal distribution has a Kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
html 5    Valid CSS!
