NTP0: x86 SBC, Undisciplined, NTPSec
One Hour - September 24, 2025 04:00 UTC

Report generated: Wed Sep 24 04:00:39 2025 UTC
Start Time: Wed Sep 24 03:00:40 2025 UTC
End Time: Wed Sep 24 04:00:39 2025 UTC
Report Period: 0.0 days

Return to It's About Time

Section Time Frame NTP Server
Local Clock Time/Frequency Offsets One Hour NTP0: x86 SBC, Undisciplined, NTPSec
Local RMS Time Jitter Three Hour NTP1: RPi4B, Uputronics M8, NTPSec
Local RMS Frequency Jitter Six Hour NTP2: CM4, Bollar ZED-F9T, NTPSec
Local Clock Time Offset Histogram Twelve Hour NTP3: CM5, TimeHat LEA-M8T, NTPSec
Local Temperatures One Day NTP4: SecureSync, Rubidium, NTP (Classic)
Local Frequency/Temp Two Day NTP5: RPi3B+, Uputronics MAX-M8Q, NTPSec
Local GPS Three Day NTP6: CM4, TimeBeat OTC Mini, PTP
Server Offsets Seven Day NTP7: LeoNTP, Standalone GNSS, Firmware
Server Jitters Fourteen Day (Updated Daily)
Summary One Month (Updated Daily)
NTPQ Stats
GNSS Performance

NTP0 runs on a low-power x86 single board computer and is not disciplined to GNSS or any external reference. It is used to process and render NTPViz reports and to observe the effects of CPU load on NTP jitter.

If graphs don't match report time above, force refresh the browser. The images have been cached.


Local Clock Time/Frequency Offsets

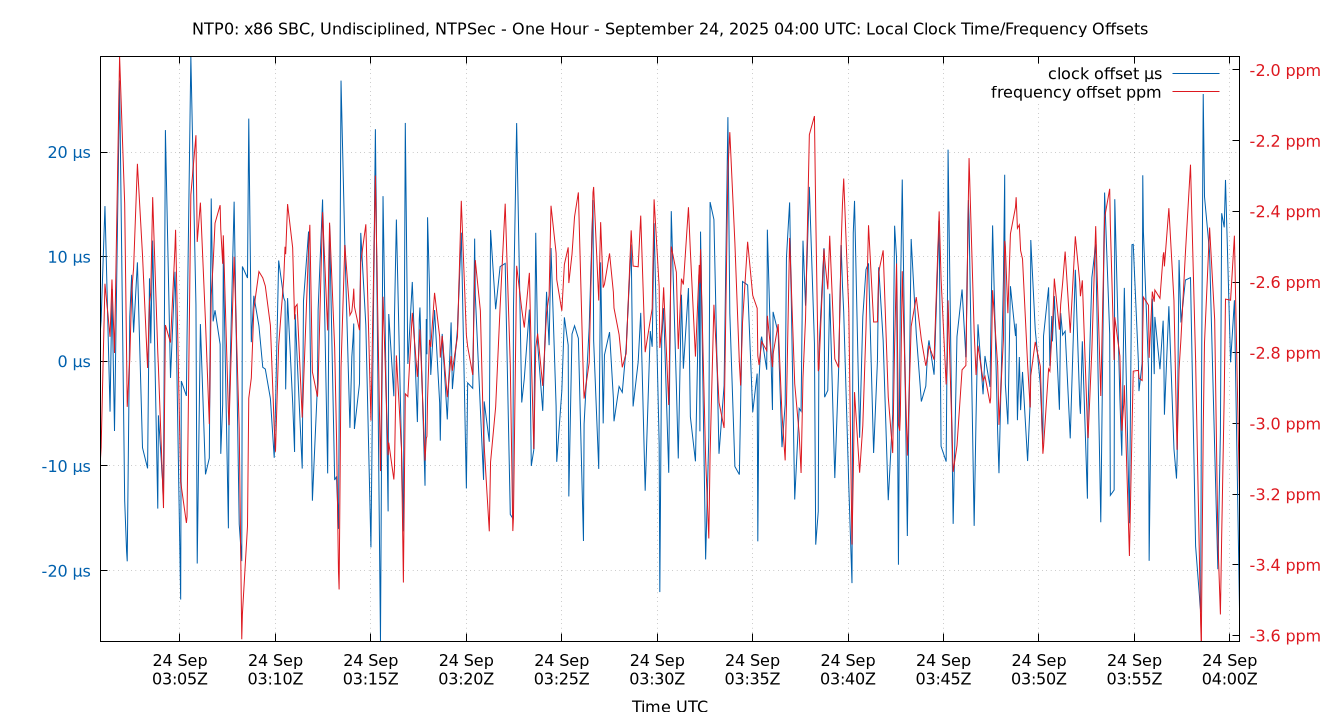

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -26.747 -22.761 -16.691 1.229 15.558 25.542 29.137 32.249 48.303 10.041 0.408 µs -0.003683 2.854
Local Clock Frequency Offset -3.616 -3.540 -3.239 -2.737 -2.366 -2.183 -1.962 0.873 1.357 0.267 -2.749 ppm -0.4746 3.497

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 7.177 7.671 9.395 13.784 20.546 25.556 28.145 11.151 17.885 3.608 14.301 µs 0.8383 4.058

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.

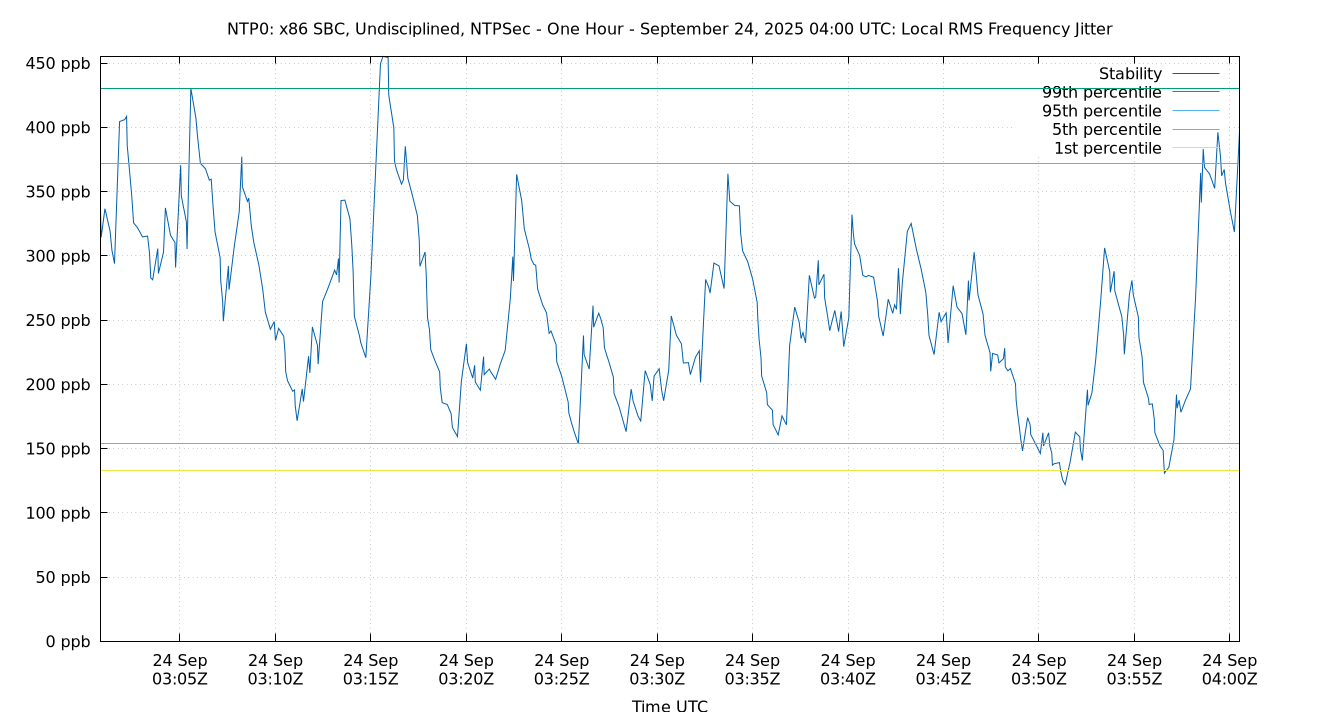

Local RMS Frequency Jitter

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 121.823 132.531 153.627 252.754 371.863 430.321 455.188 218.236 297.790 67.976 256.067 ppb 0.3941 2.699

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.

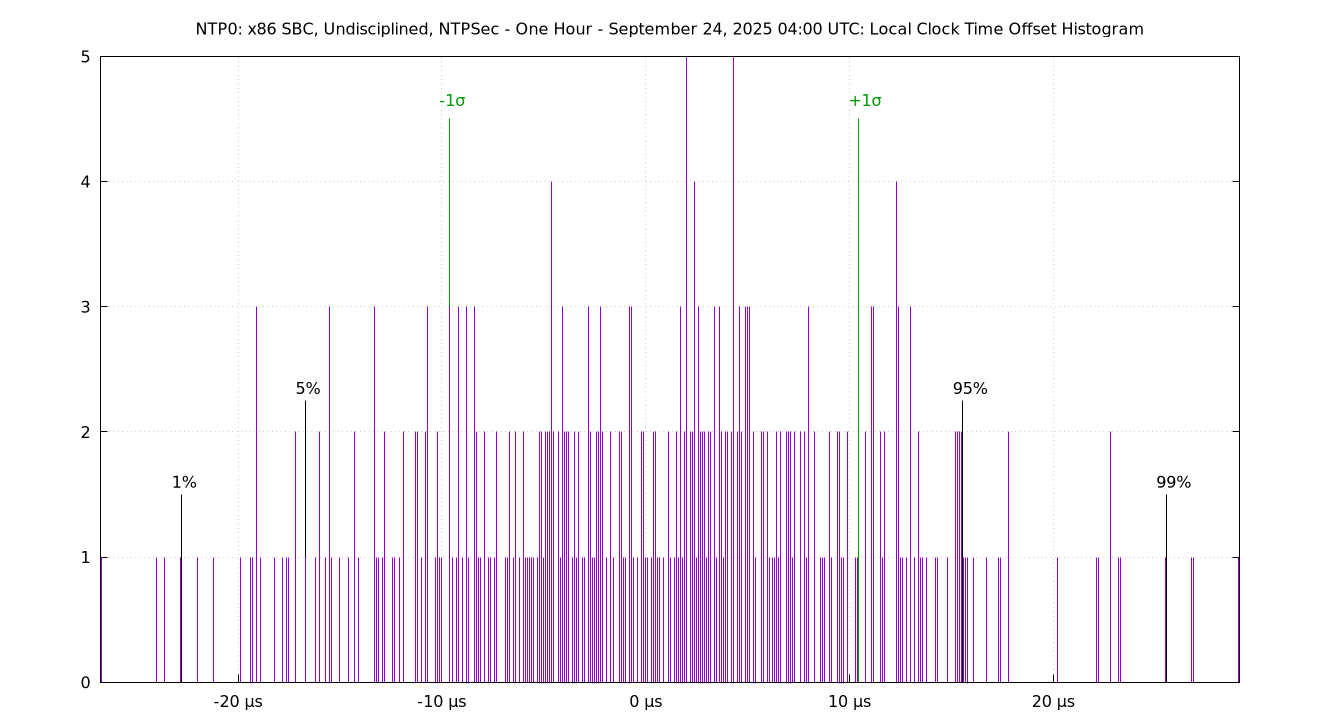

Local Clock Time Offset Histogram

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -26.747 -22.761 -16.691 1.229 15.558 25.542 29.137 32.249 48.303 10.041 0.408 µs -0.003683 2.854

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Local Temperatures

local temps plot

Local temperatures. These will be site-specific depending upon what temperature sensors you collect data from. Temperature changes affect the local clock crystal frequency and stability. The math of how temperature changes frequency is complex, and also depends on crystal aging. So there is no easy way to correct for it in software. This is the single most important component of frequency drift.

The Local Temperatures are from field 3 from the tempstats log file.

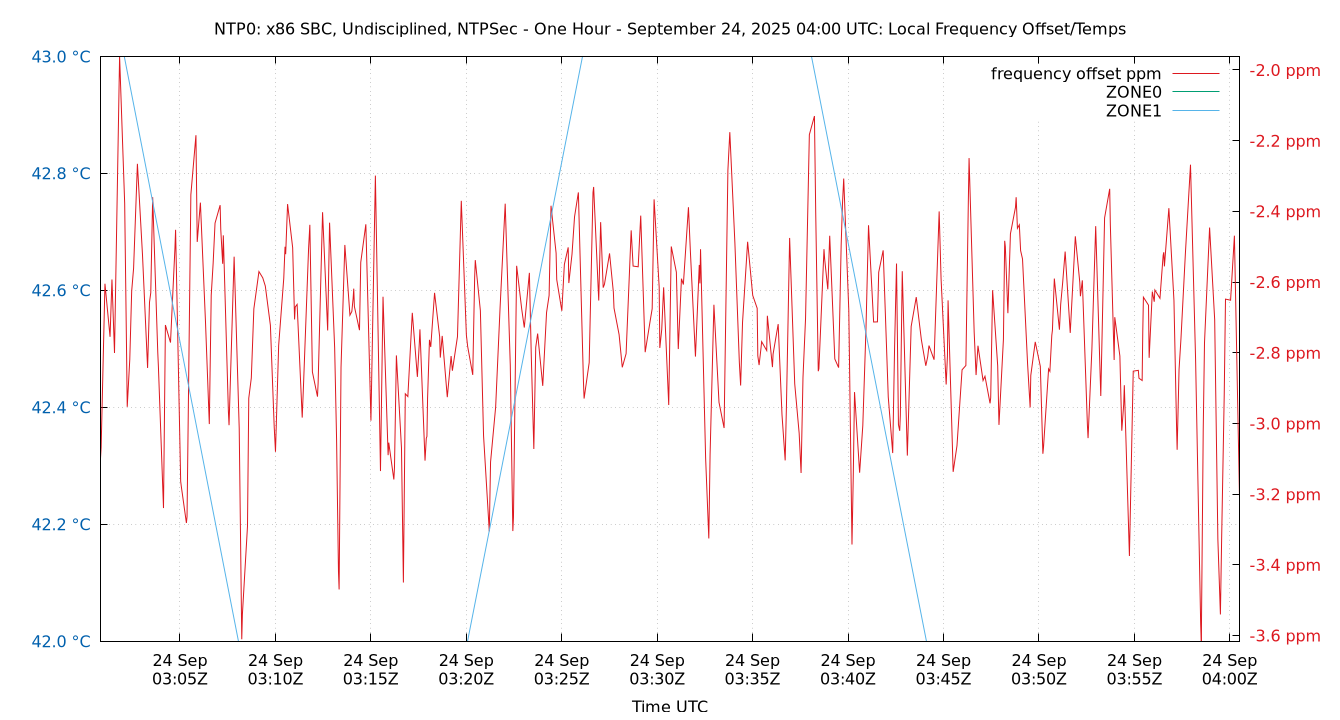

Local Frequency/Temp

local freq temps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -3.616 -3.540 -3.239 -2.737 -2.366 -2.183 -1.962 0.873 1.357 0.267 -2.749 ppm -0.4746 3.497
Temp ZONE0 42.000 42.000 42.000 42.000 42.000 42.000 42.000 0.000 0.000 0.000 42.000 °C
Temp ZONE1 42.000 42.000 42.000 42.000 43.000 43.000 43.000 1.000 1.000 0.490 42.400 °C

The frequency offsets and temperatures. Showing frequency offset (red, in parts per million, scale on right) and the temperatures.

These are field 4 (frequency) from the loopstats log file, and field 3 from the tempstats log file.



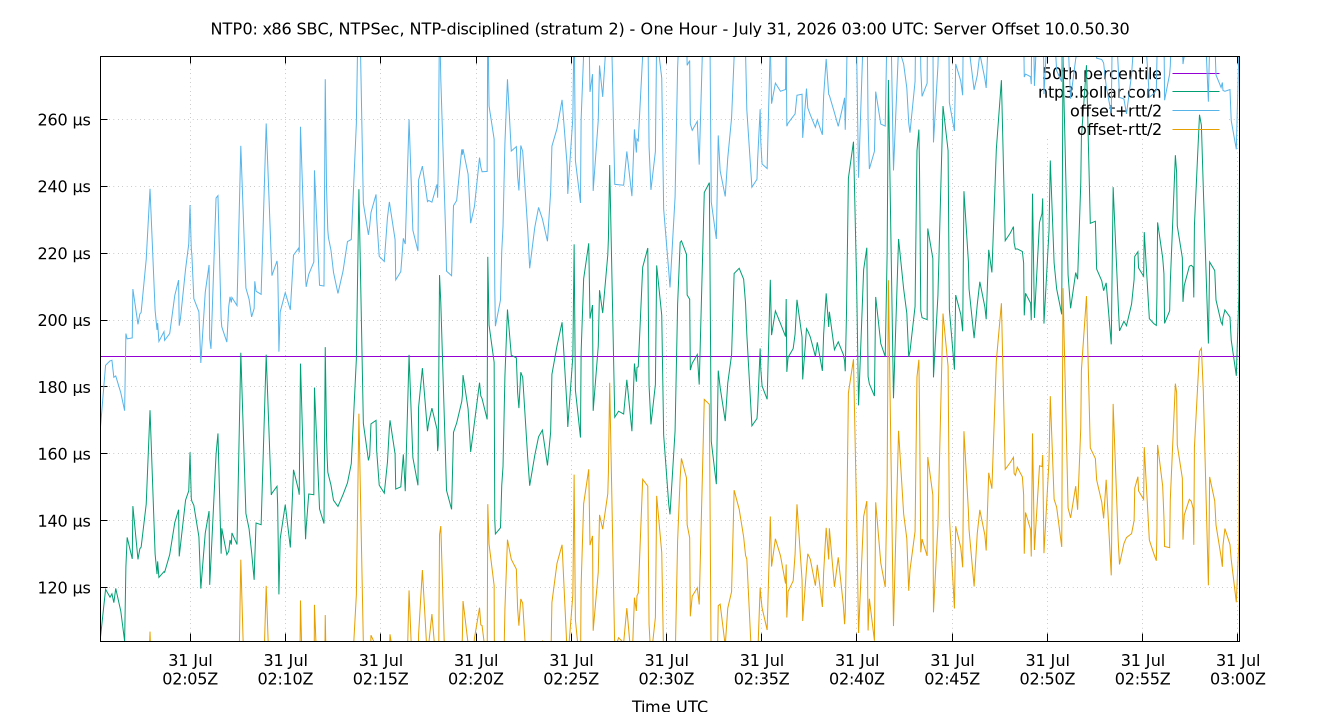

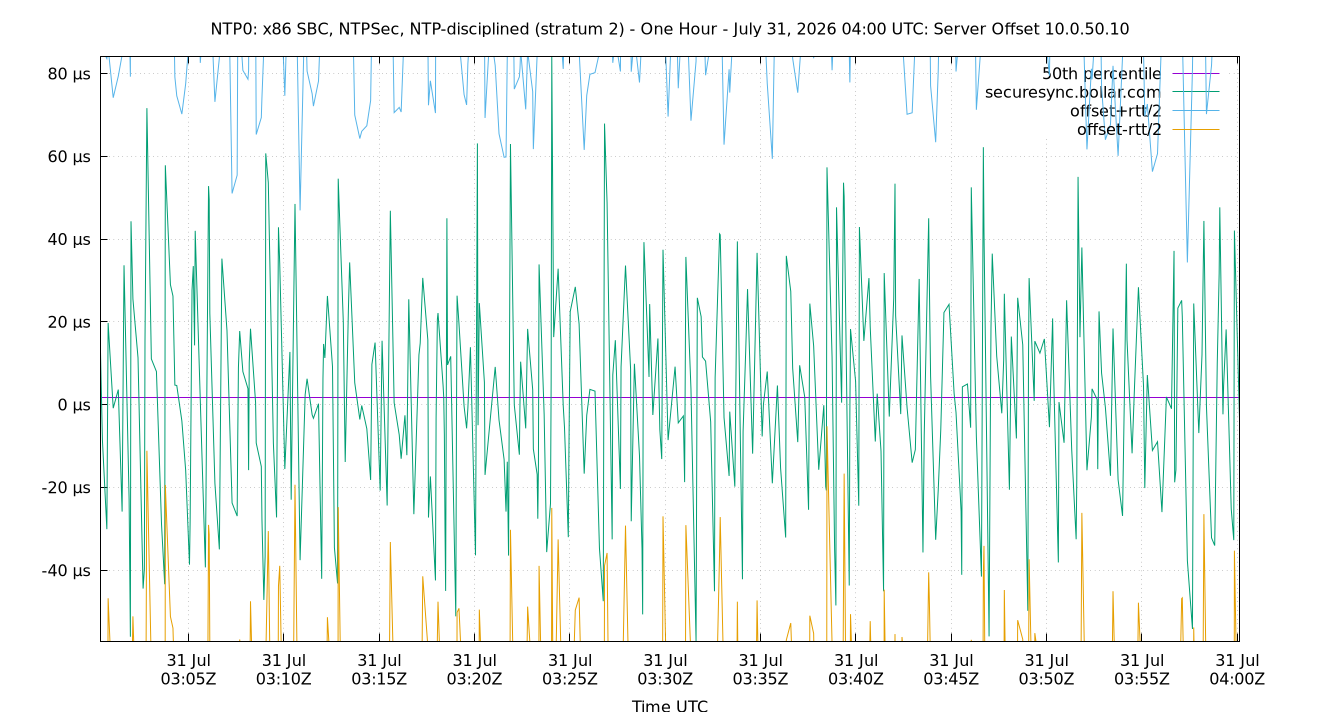

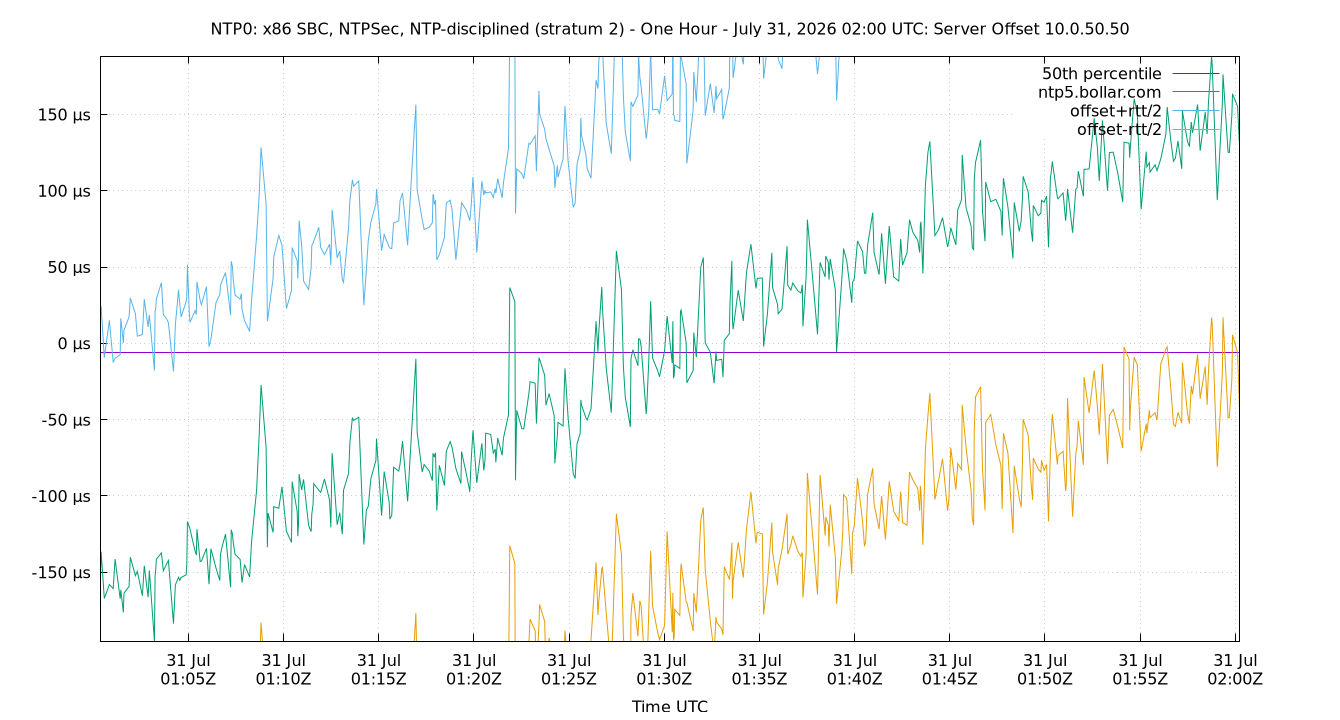

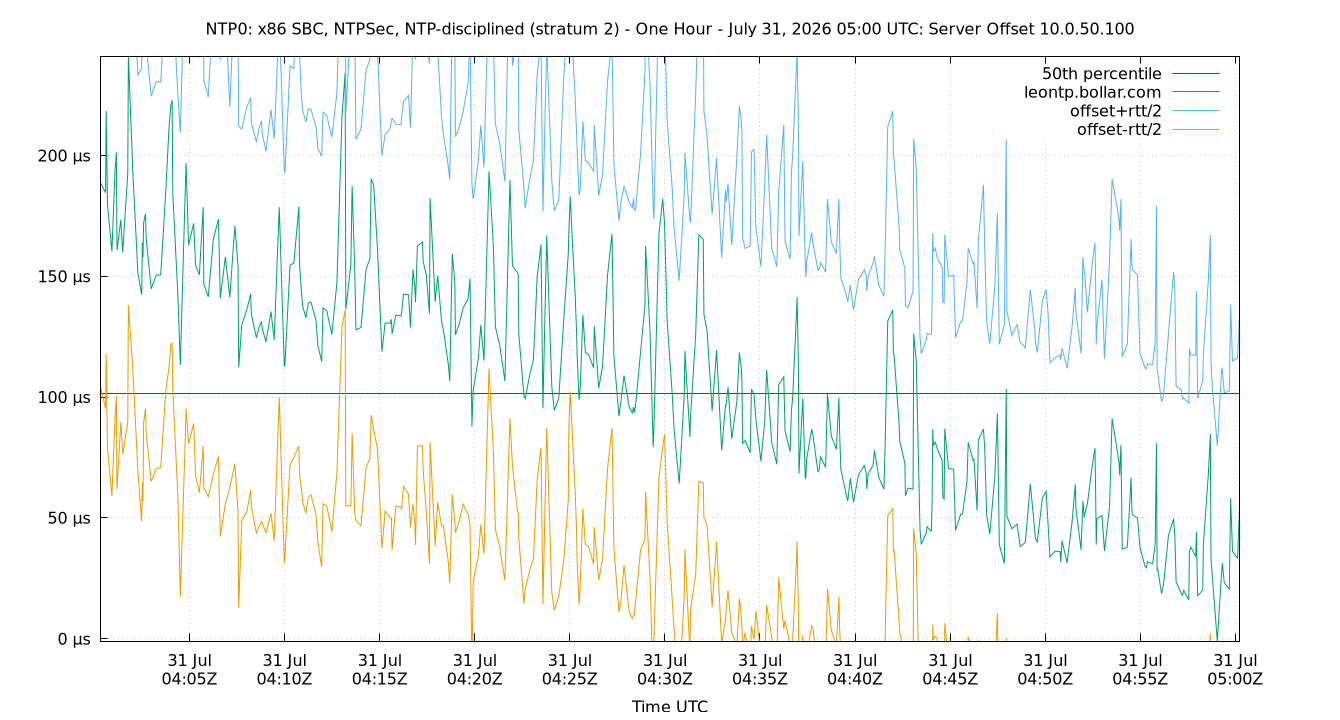

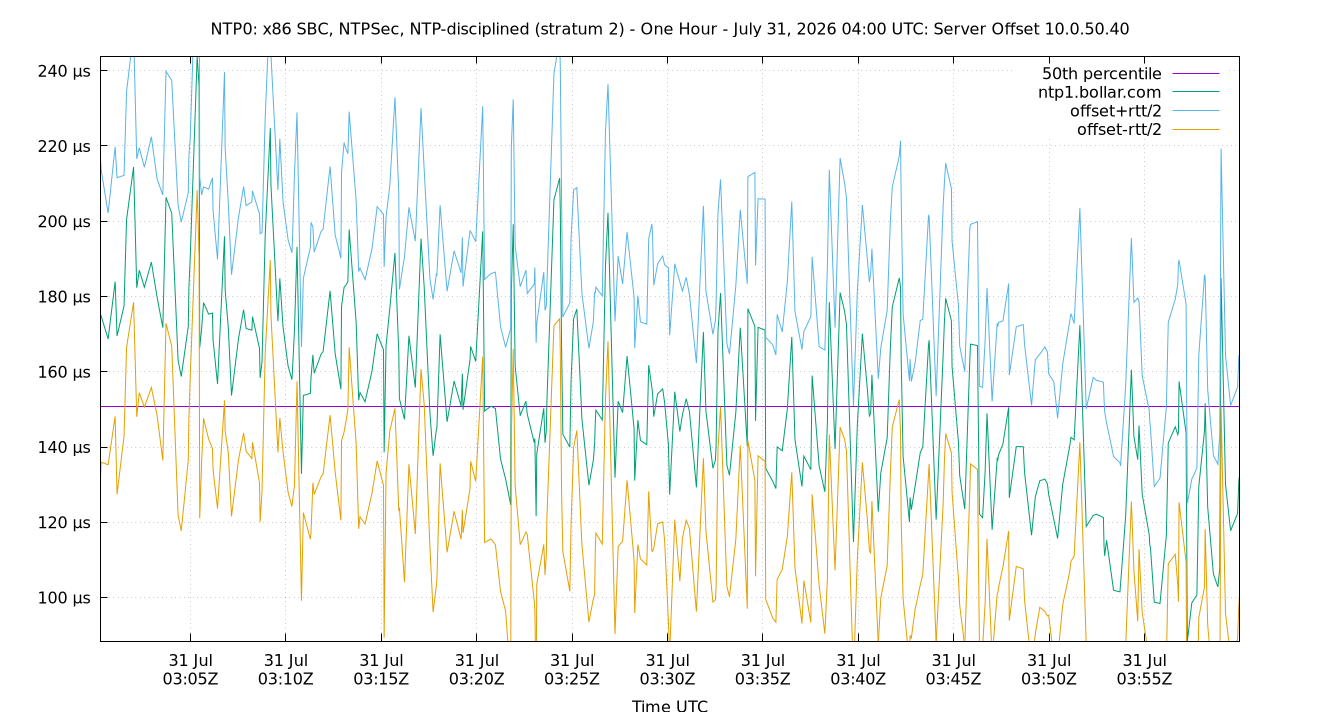

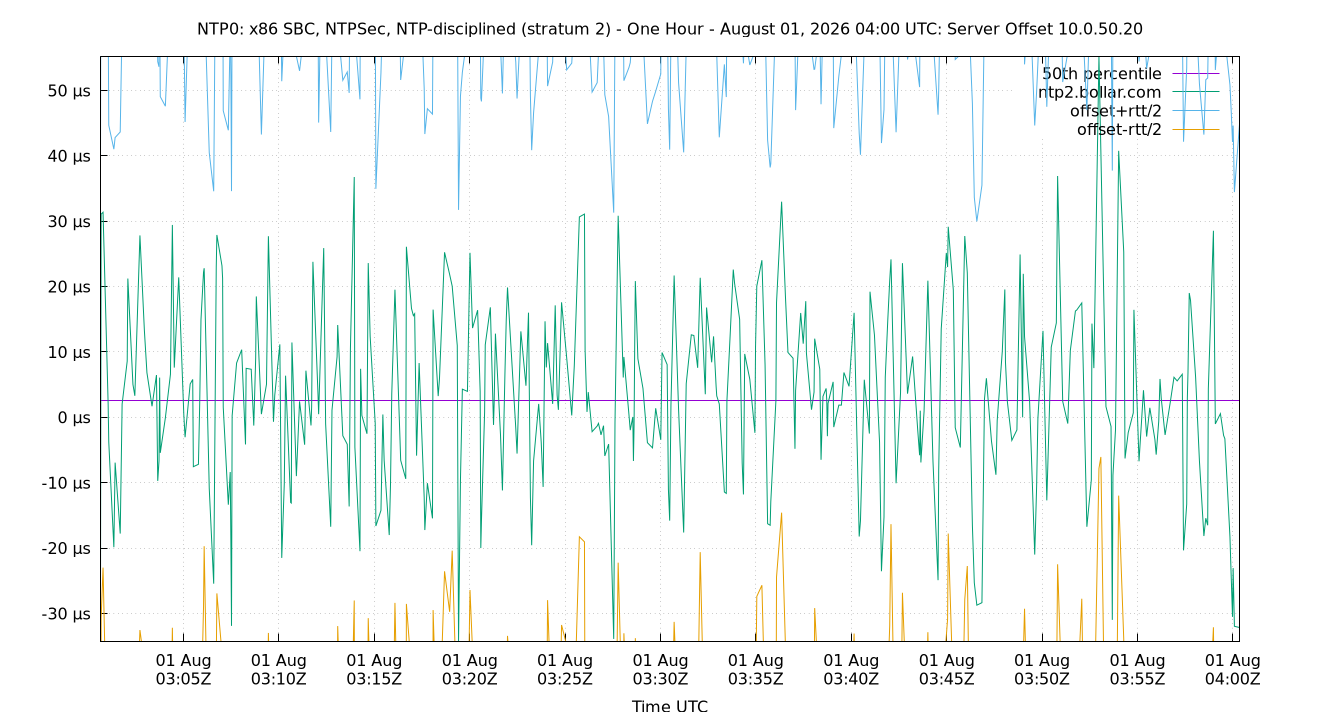

Server Offsets

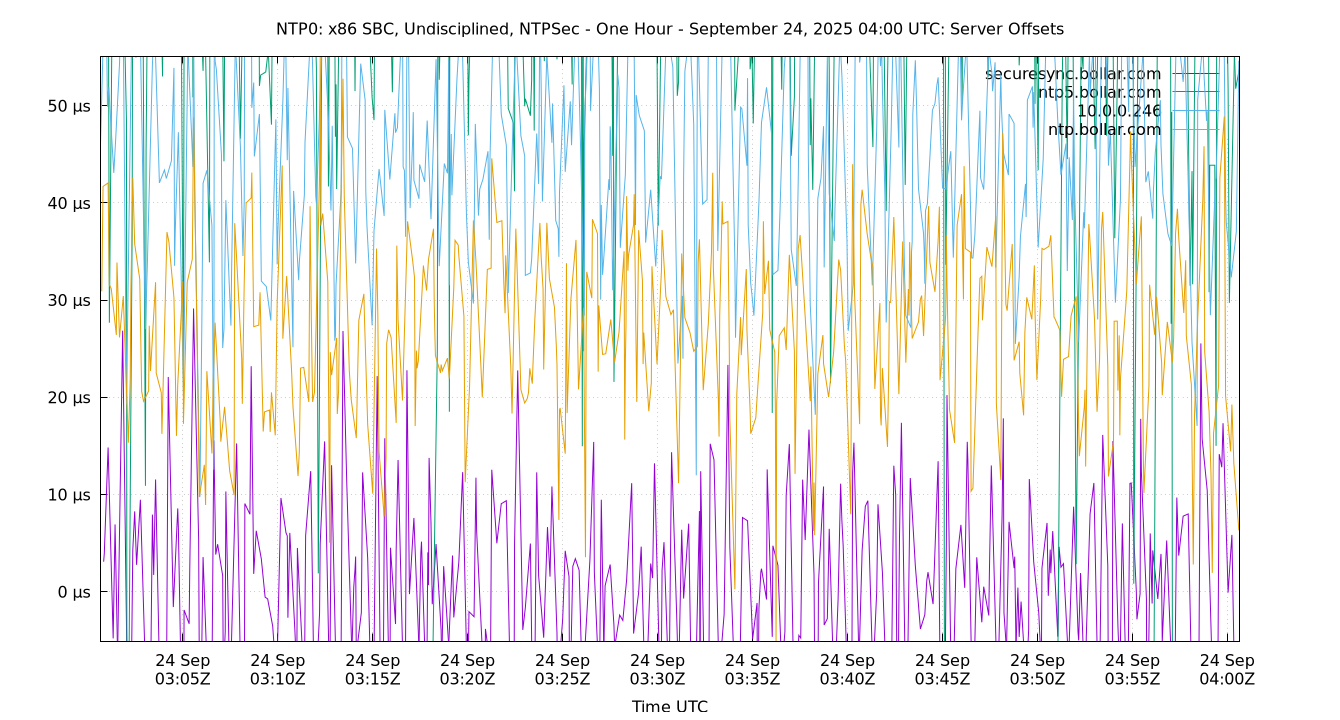

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



Server Offset 10.0.0.244

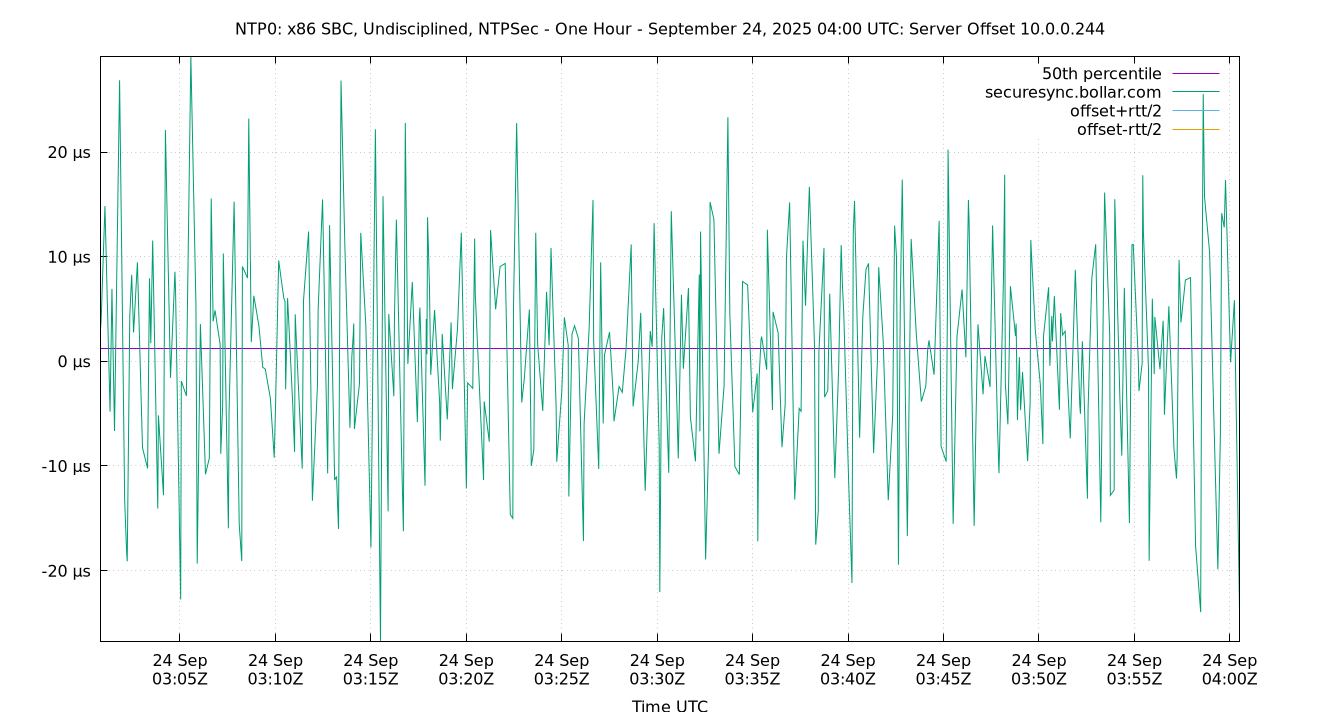

peer offset 10.0.0.244 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.0.244 -26.748 -22.762 -16.692 1.230 15.559 25.543 29.138 32.251 48.305 10.042 0.408 µs -0.003704 2.853

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

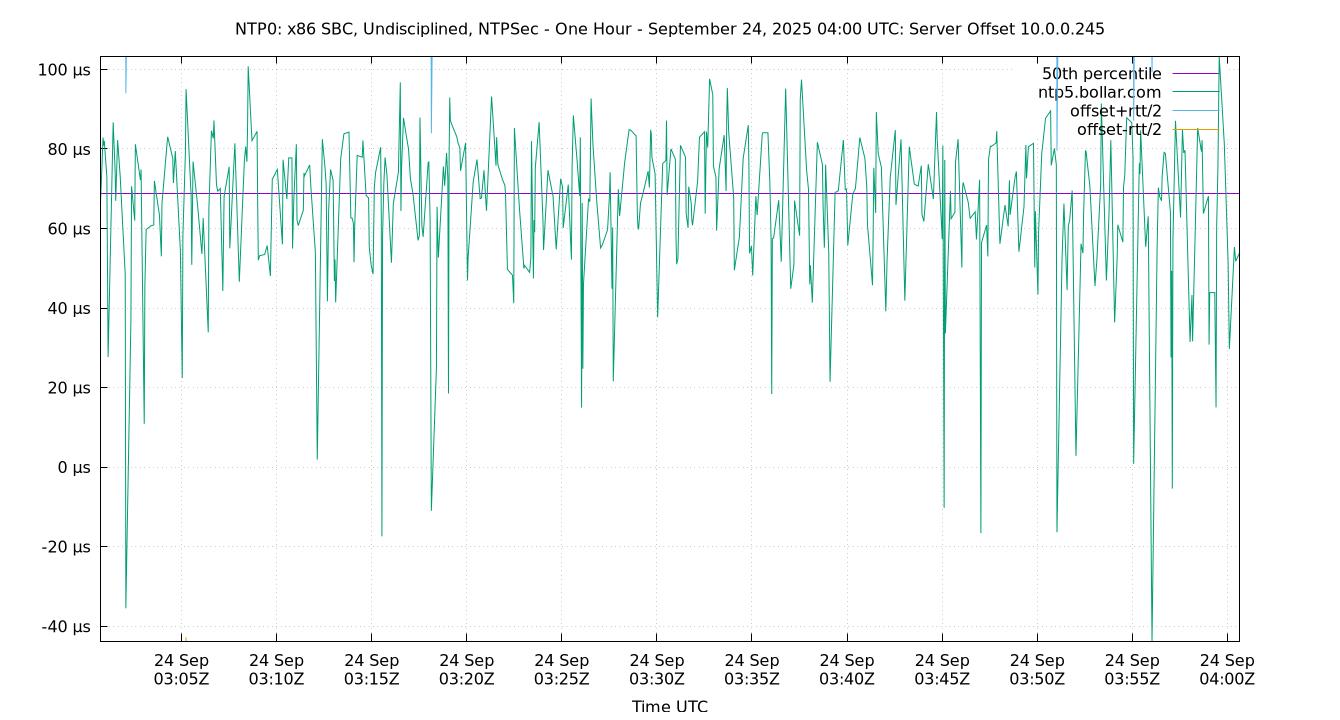

Server Offset 10.0.0.245

peer offset 10.0.0.245 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.0.245 -43.803 -16.374 30.812 68.679 87.135 96.742 103.282 56.323 113.116 19.439 65.228 µs -1.863 8.836

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.0.246

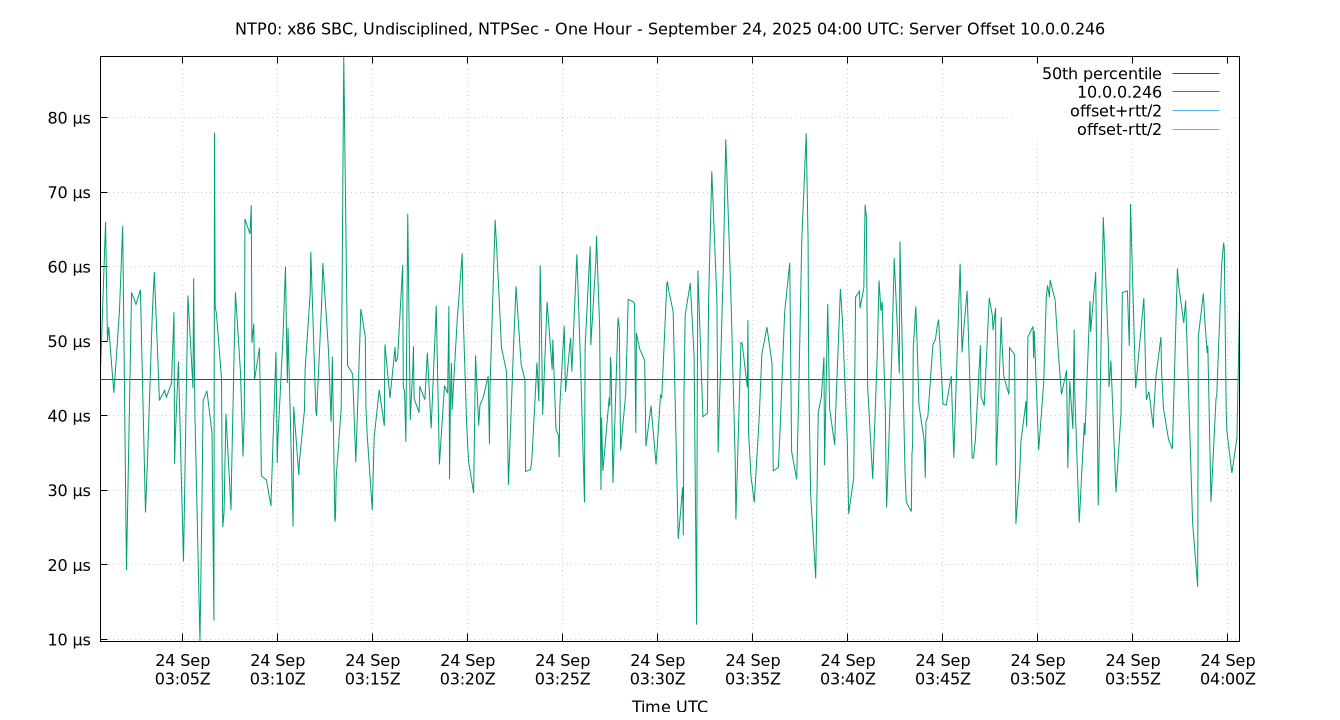

peer offset 10.0.0.246 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.0.246 9.756 18.197 27.153 44.827 63.230 72.811 88.219 36.077 54.614 11.281 45.179 µs 0.06125 3.419

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

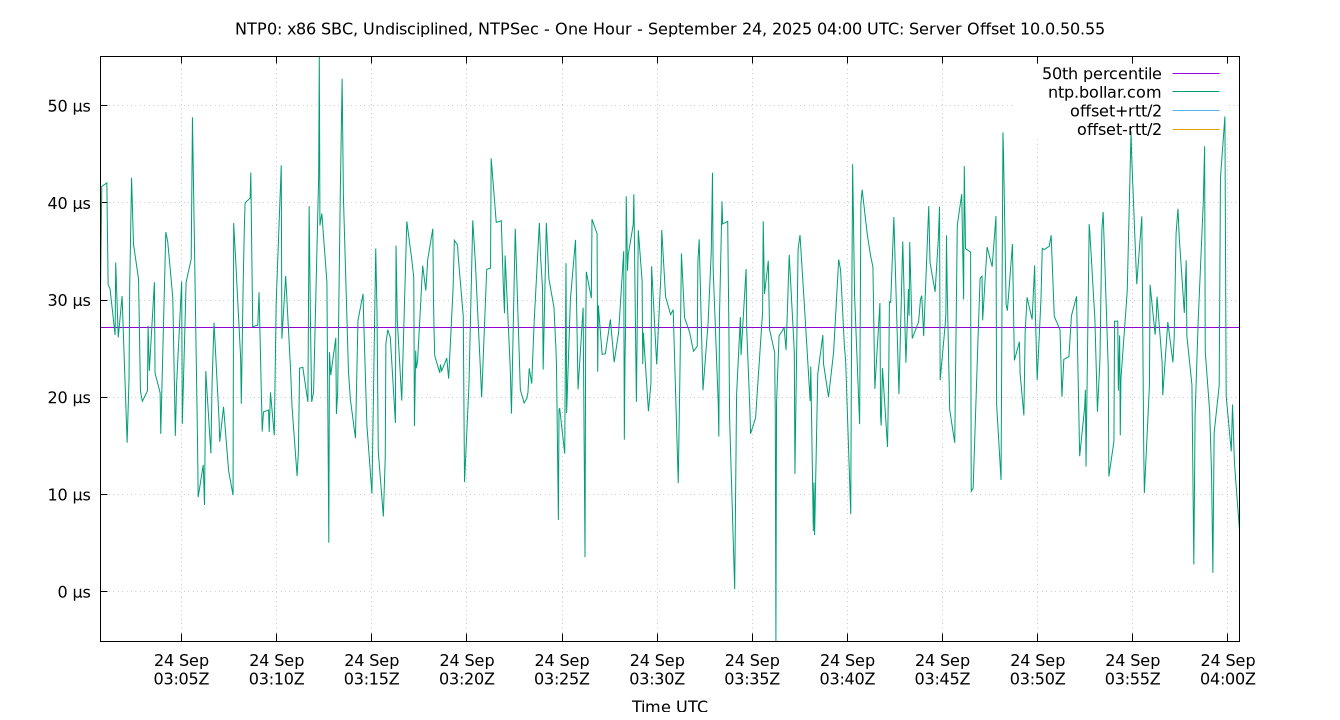

Server Offset 10.0.50.55

peer offset 10.0.50.55 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.55 -5.105 3.544 11.267 27.149 41.325 47.373 55.076 30.058 43.829 9.267 26.961 µs -0.1393 3.072

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



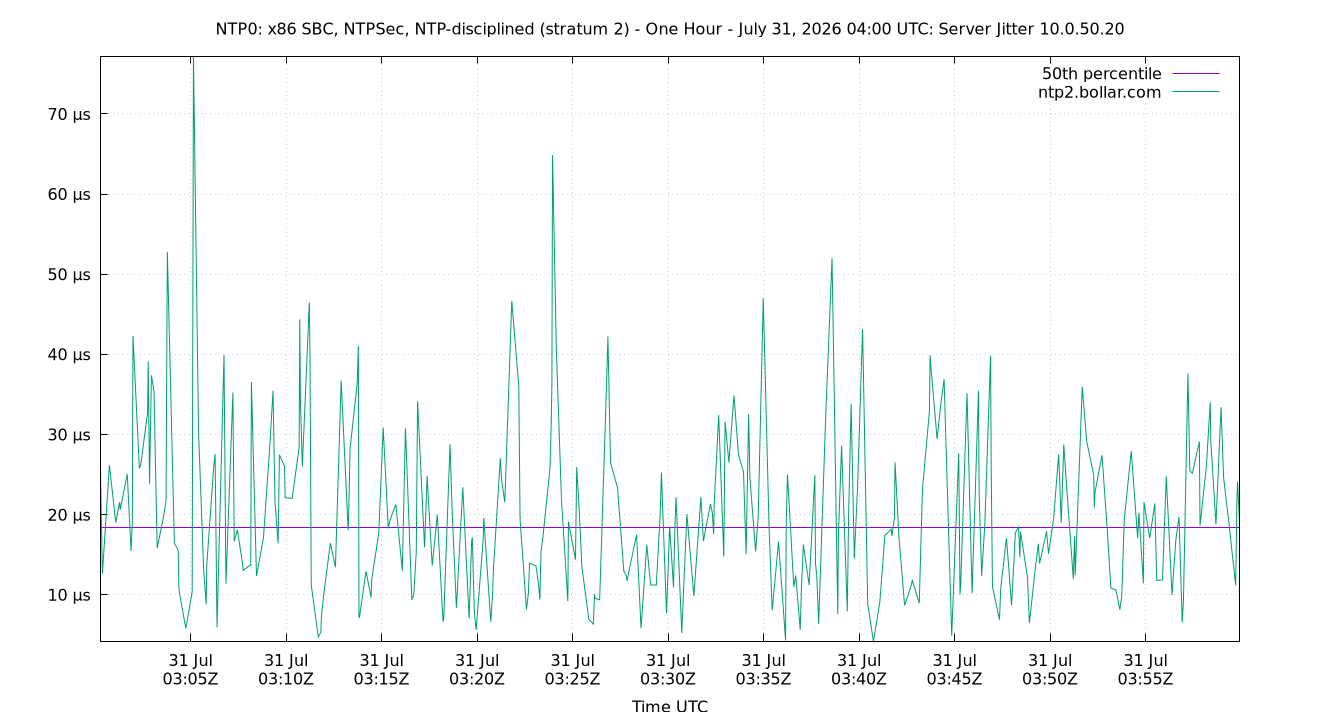

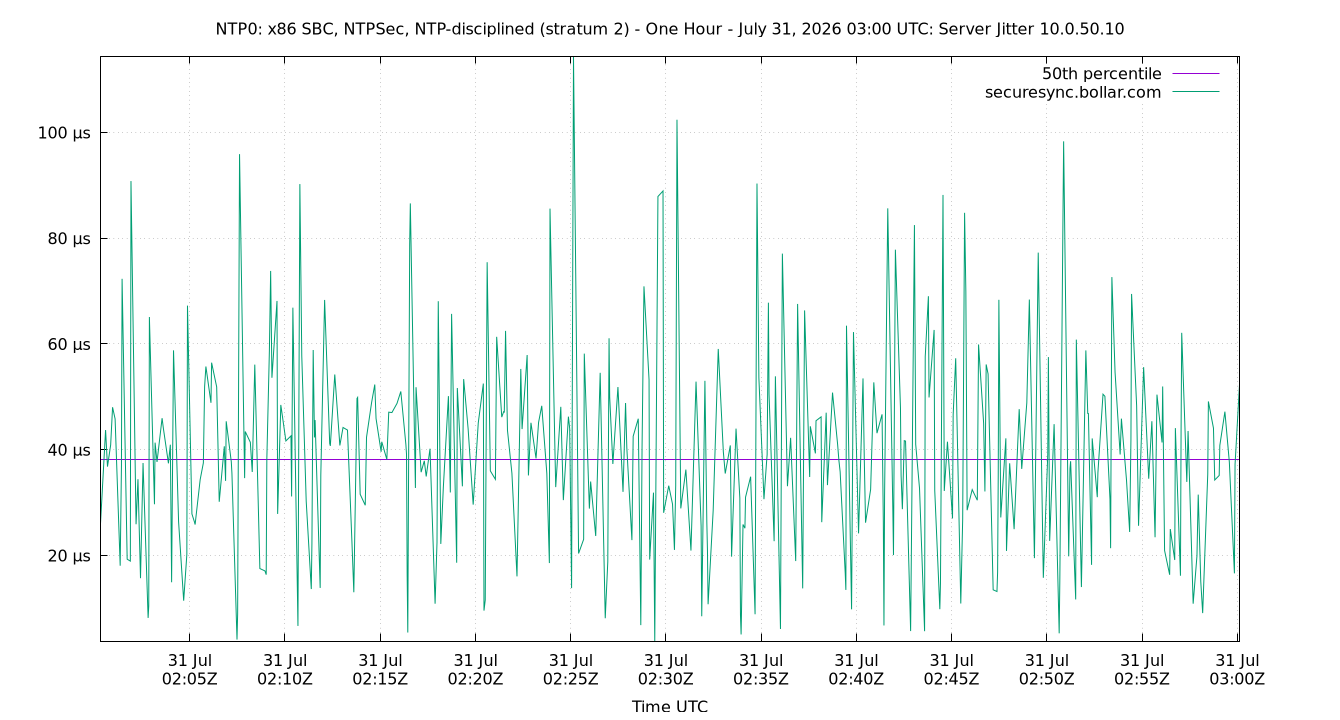

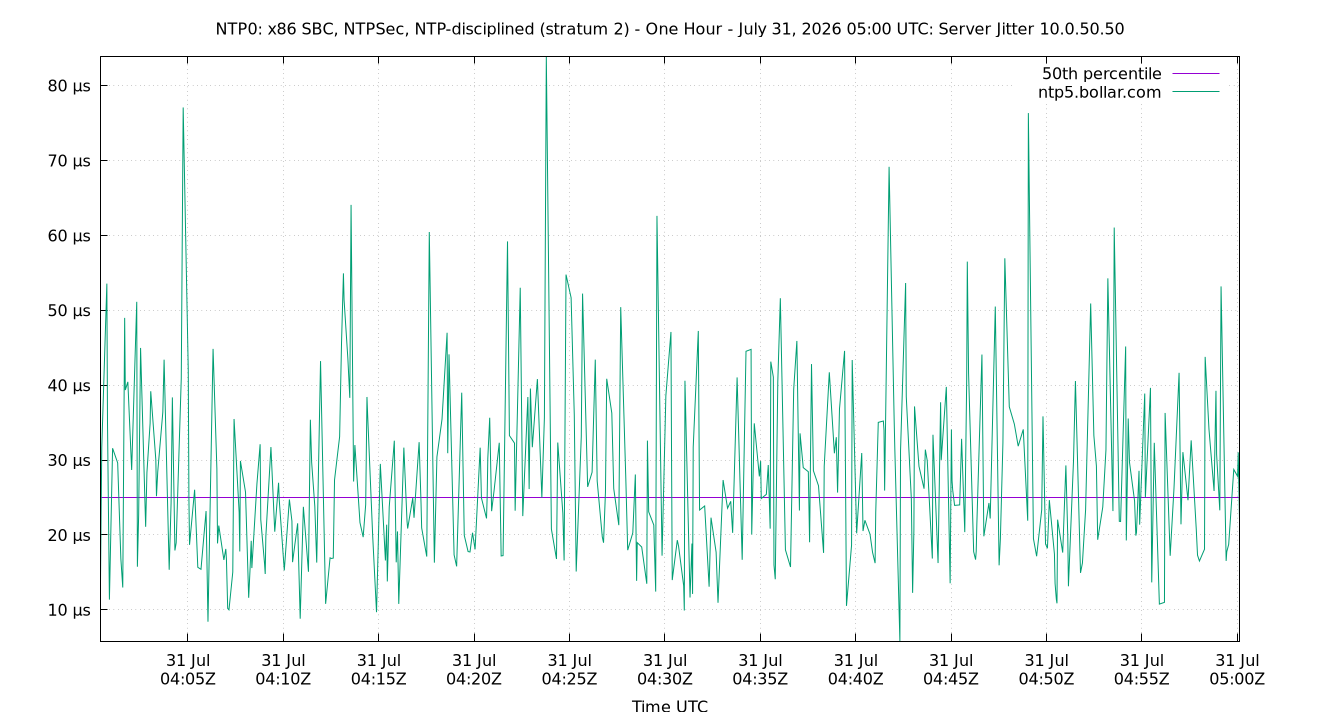

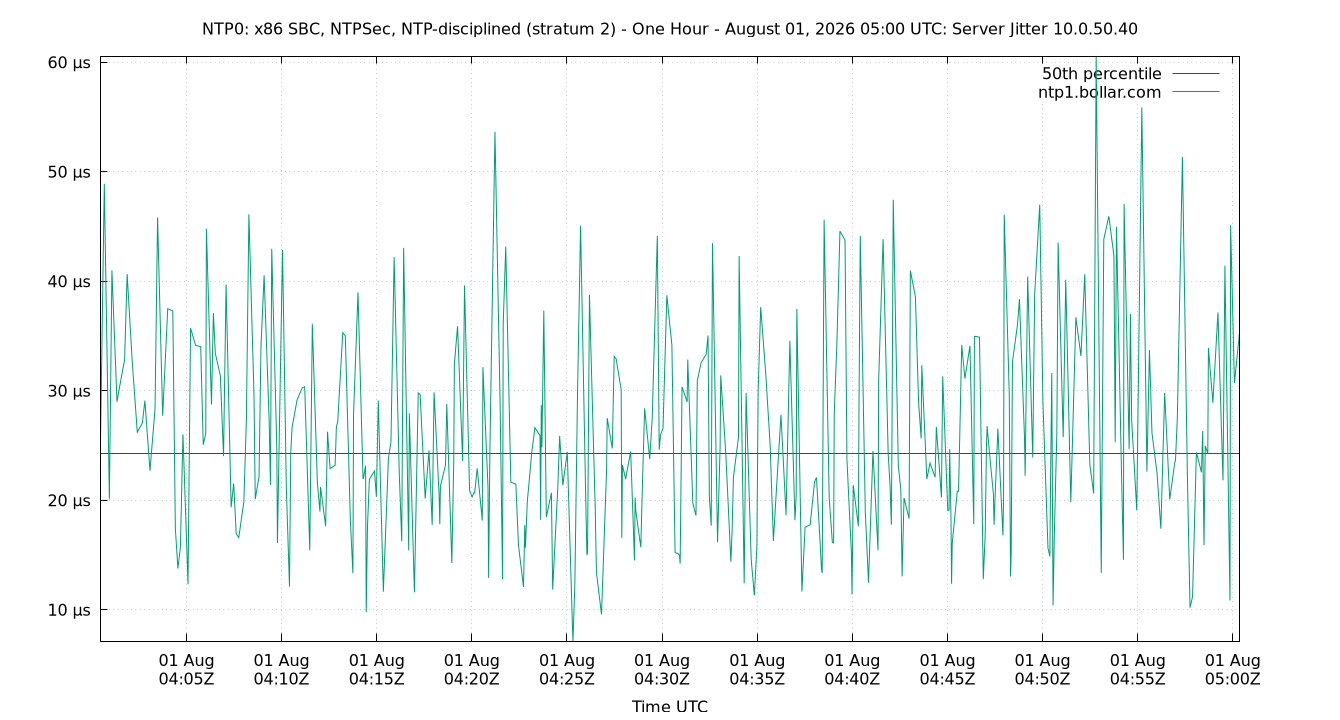

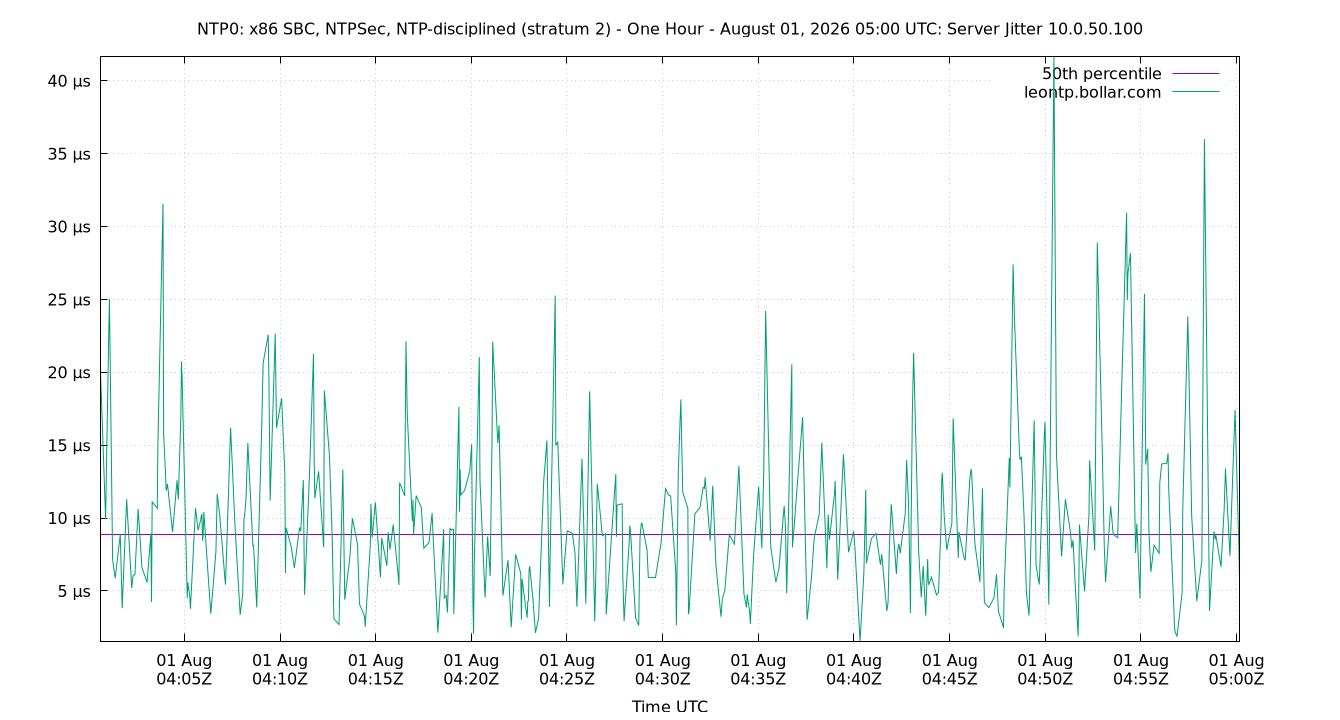

Server Jitters

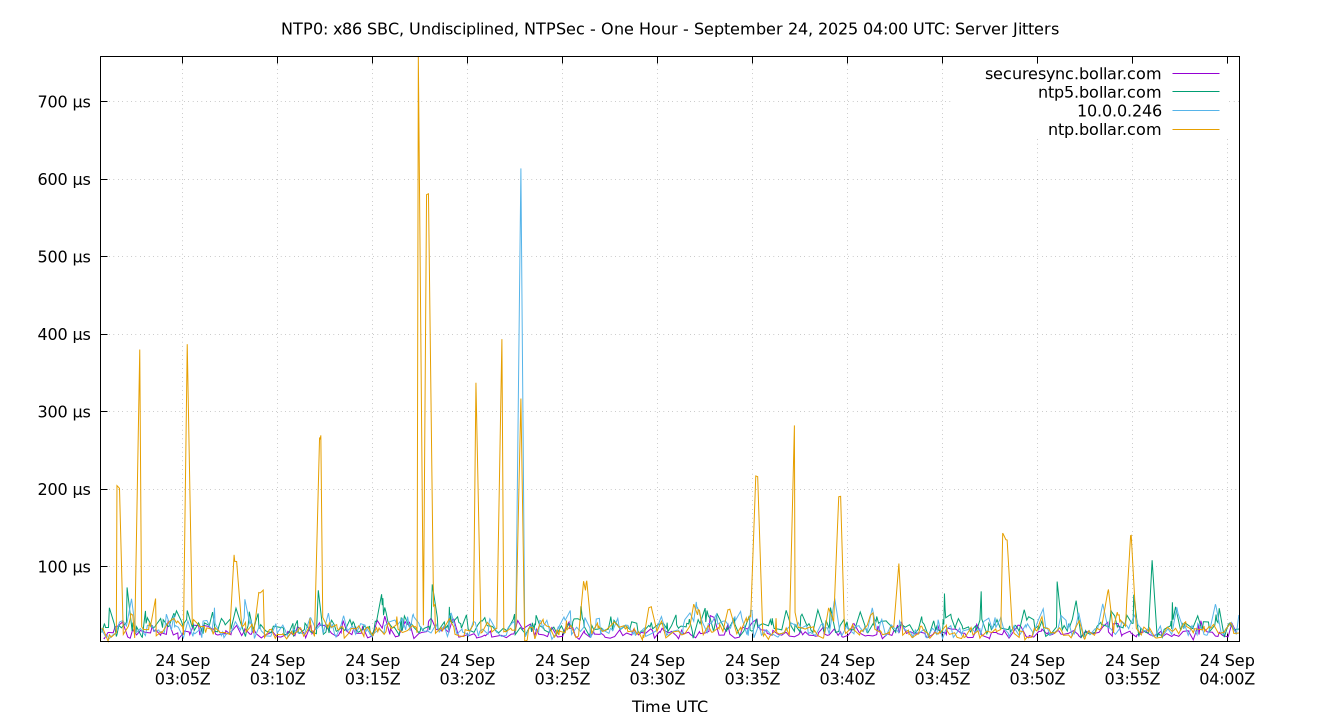

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.0.244

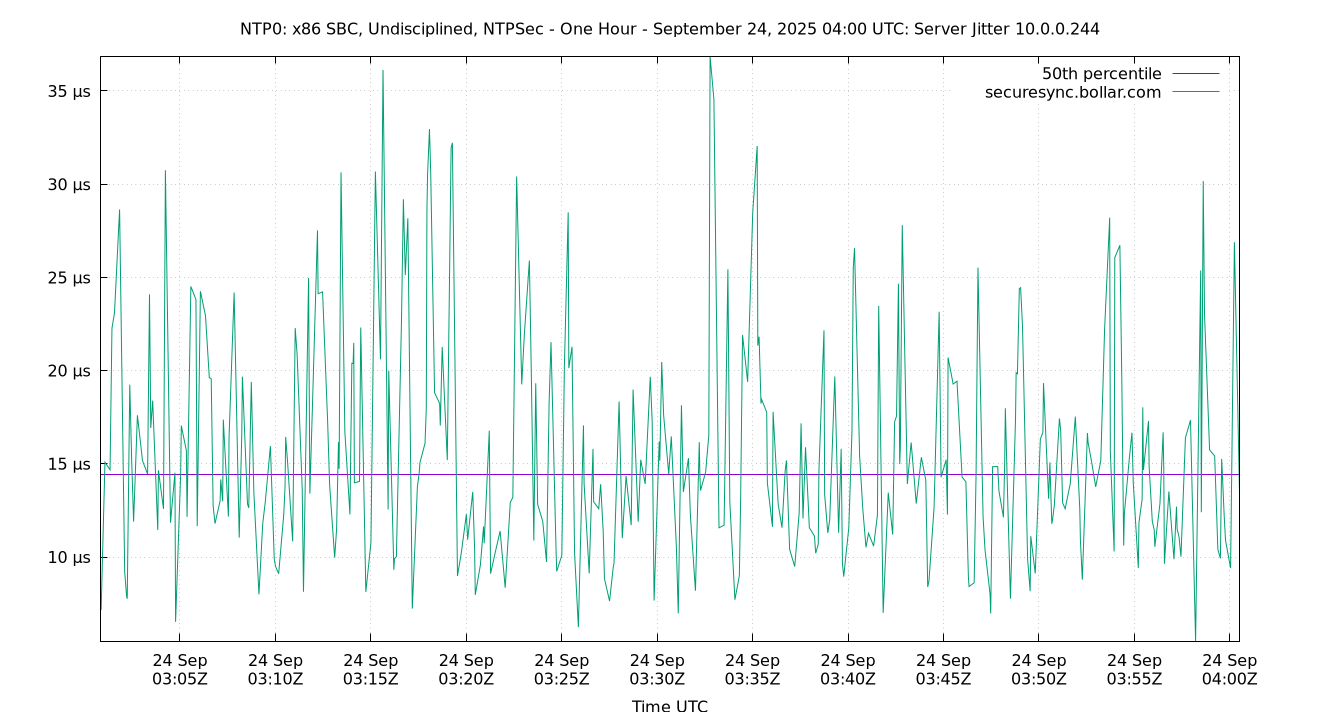

peer jitter 10.0.0.244 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.0.244 5.482 6.973 8.135 14.449 28.200 32.955 36.853 20.065 25.982 5.926 15.612 µs 1.057 3.87

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.0.245

peer jitter 10.0.0.245 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.0.245 7.708 9.031 12.356 23.213 44.112 69.455 108.271 31.756 60.424 11.028 25.058 µs 2.348 13.17

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.0.246

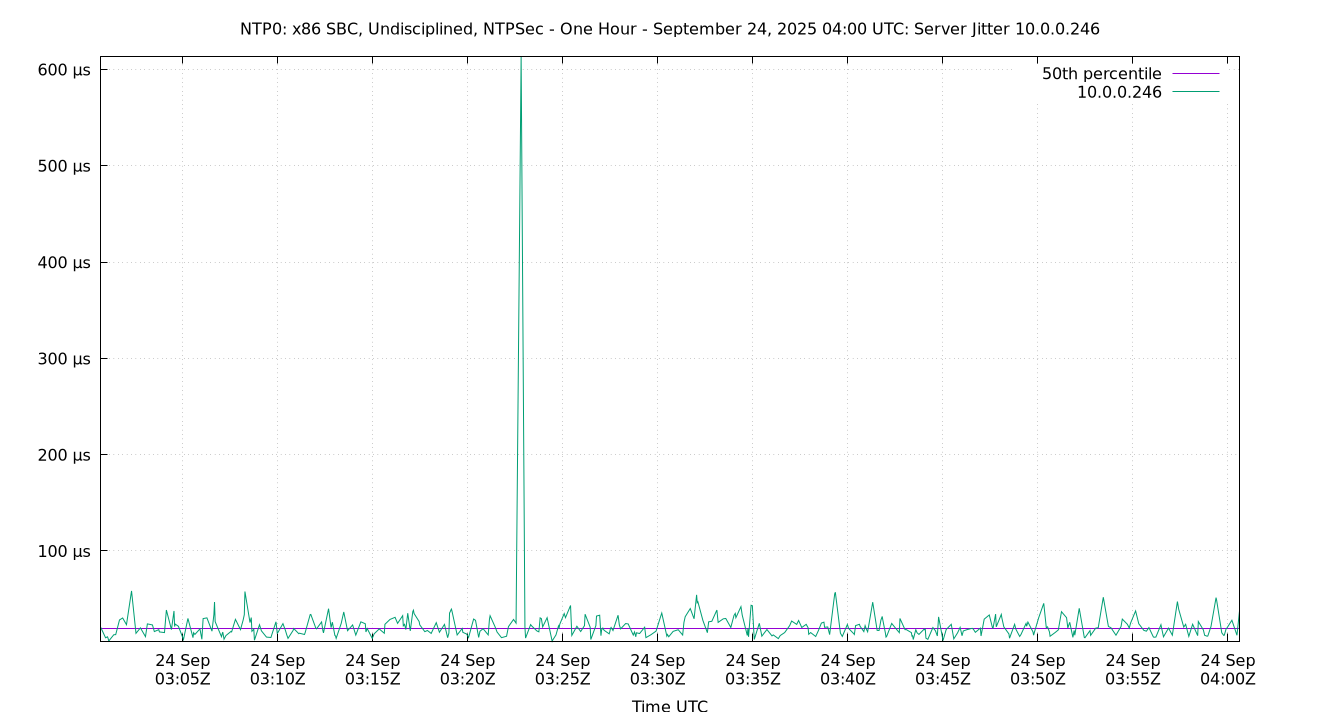

peer jitter 10.0.0.246 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.0.246 6.233 7.609 9.555 19.552 40.224 55.460 613.708 30.669 47.851 30.758 22.857 µs 17.23 330.5

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.55

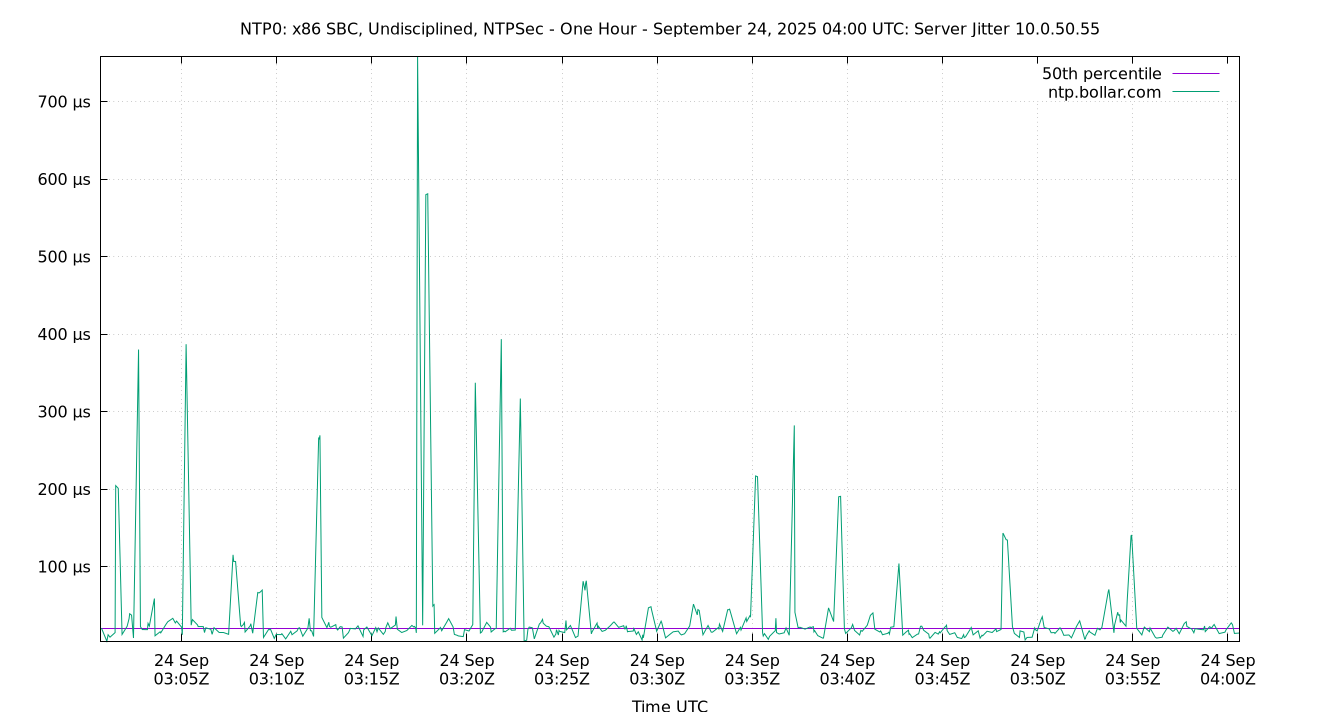

peer jitter 10.0.50.55 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.55 3.697 5.434 8.125 19.642 139.921 386.931 758.207 131.796 381.497 72.030 36.350 µs 5.863 44.36

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -3.616 -3.540 -3.239 -2.737 -2.366 -2.183 -1.962 0.873 1.357 0.267 -2.749 ppm -0.4746 3.497
Local Clock Time Offset -26.747 -22.761 -16.691 1.229 15.558 25.542 29.137 32.249 48.303 10.041 0.408 µs -0.003683 2.854
Local RMS Frequency Jitter 121.823 132.531 153.627 252.754 371.863 430.321 455.188 218.236 297.790 67.976 256.067 ppb 0.3941 2.699
Local RMS Time Jitter 7.177 7.671 9.395 13.784 20.546 25.556 28.145 11.151 17.885 3.608 14.301 µs 0.8383 4.058
Server Jitter 10.0.0.244 5.482 6.973 8.135 14.449 28.200 32.955 36.853 20.065 25.982 5.926 15.612 µs 1.057 3.87
Server Jitter 10.0.0.245 7.708 9.031 12.356 23.213 44.112 69.455 108.271 31.756 60.424 11.028 25.058 µs 2.348 13.17
Server Jitter 10.0.0.246 6.233 7.609 9.555 19.552 40.224 55.460 613.708 30.669 47.851 30.758 22.857 µs 17.23 330.5
Server Jitter 10.0.50.55 3.697 5.434 8.125 19.642 139.921 386.931 758.207 131.796 381.497 72.030 36.350 µs 5.863 44.36
Server Offset 10.0.0.244 -26.748 -22.762 -16.692 1.230 15.559 25.543 29.138 32.251 48.305 10.042 0.408 µs -0.003704 2.853
Server Offset 10.0.0.245 -43.803 -16.374 30.812 68.679 87.135 96.742 103.282 56.323 113.116 19.439 65.228 µs -1.863 8.836
Server Offset 10.0.0.246 9.756 18.197 27.153 44.827 63.230 72.811 88.219 36.077 54.614 11.281 45.179 µs 0.06125 3.419
Server Offset 10.0.50.55 -5.105 3.544 11.267 27.149 41.325 47.373 55.076 30.058 43.829 9.267 26.961 µs -0.1393 3.072
Temp ZONE0 42.000 42.000 42.000 42.000 42.000 42.000 42.000 0.000 0.000 0.000 42.000 °C
Temp ZONE1 42.000 42.000 42.000 42.000 43.000 43.000 43.000 1.000 1.000 0.490 42.400 °C
Summary as CSV file

Our production NTP servers share the same mast-mounted Tallysman Accutenna® TW3972 Triple Band GNSS Antenna + L-band Correction Services antenna using a Tallysman TW164 1-to-4 Port Smart Power GNSS Signal Splitter. No external NTP servers are contacted and all servers, with the exception of NTP6, the LeoNTP 1200, poll each other. Internal NTP clients poll NTP4 or NTP6.

The LeoNTP 1200 is a black-box appliance that doesn't support timing reporting. Its status can be checked by viwing the Server Jitter & Offset from any of the other servers. It can be found at NTP7 or 10.0.50.55. The LeoNTP link above will take you to the Server Jitter between the LeoNTP and the currently selected server.

NTPQ Stats

NTPQ Statistics are not not available for this NTP server.'

GNSS Performance

GNSS Performance is not available for this NTP server.'

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
Skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the FIsher-Pearson moment of skewness. There are other different ways to calculate Skewness Wikipedia describes Skewness best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
Kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses standard Kurtosis. There are other different ways to calculate Kurtosis.
A normal distribution has a Kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
