NTPsec

NTP0: x86 SBC, NTPSec, NTP-disciplined (stratum 2)
Three Hour - July 30, 2026 20:00 UTC

Report generated: Thu Jul 30 20:00:49 2026 UTC
Start Time: Thu Jul 30 17:00:49 2026 UTC
End Time: Thu Jul 30 20:00:49 2026 UTC
Report Period: 0.1 days

Return to It's About Time

Section Time Frame NTP Server
Local Clock Time/Frequency Offsets One Hour NTP0: x86 SBC, NTPSec, NTP-disciplined (stratum 2)
Local RMS Time Jitter Three Hour NTP1: RPi4B, Uputronics M8, NTPSec
Local RMS Frequency Jitter Six Hour NTP2: CM4, Bollar ZED-F9T, NTPSec
Local Clock Time Offset Histogram Twelve Hour NTP3: CM5, TimeHat LEA-M8T, NTPSec
Local Temperatures One Day NTP4: SecureSync, Rubidium, NTP (Classic)
Local Frequency/Temp Two Day NTP5: RPi3B+, Uputronics MAX-M8Q, NTPSec
Local GPS Three Day NTP6: CM4, TimeBeat OTC Mini, PTP
Server Offsets Seven Day NTP7: LeoNTP, Standalone GNSS, Firmware
Server Jitters Fourteen Day (Updated Daily)
Summary One Month (Updated Daily)
NTPQ Stats
GNSS Performance

NTP0 runs on a low-power x86 single board computer with no GNSS or PPS hardware; it is disciplined over the network by NTP only (stratum 2, from the GNSS fleet). It processes and renders the NTPViz reports and lets us observe the effects of CPU load on NTP jitter.

If graphs don't match report time above, force refresh the browser. The images have been cached.


Local Clock Time/Frequency Offsets

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -64.947 -54.057 -38.334 1.425 39.833 59.238 96.290 78.167 113.295 23.172 1.422 µs 0.1203 3.437
Local Clock Frequency Offset -3.634 -2.946 -2.375 -1.312 -0.427 -0.119 0.349 1.948 2.826 0.593 -1.358 ppm -0.3392 3.262

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 15.961 18.289 21.499 32.256 45.236 51.941 57.727 23.737 33.652 7.169 32.551 µs 0.4087 3.076

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 245.065 292.758 348.214 533.739 759.171 856.323 926.640 410.957 563.565 124.640 538.408 ppb 0.3279 2.781

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -64.947 -54.057 -38.334 1.425 39.833 59.238 96.290 78.167 113.295 23.172 1.422 µs 0.1203 3.437

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Local Temperatures

local temps plot

Local temperatures. These will be site-specific depending upon what temperature sensors you collect data from. Temperature changes affect the local clock crystal frequency and stability. The math of how temperature changes frequency is complex, and also depends on crystal aging. So there is no easy way to correct for it in software. This is the single most important component of frequency drift.

The Local Temperatures are from field 3 from the tempstats log file.



Local Frequency/Temp

local freq temps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -3.634 -2.946 -2.375 -1.312 -0.427 -0.119 0.349 1.948 2.826 0.593 -1.358 ppm -0.3392 3.262
Temp ZONE0 57.000 57.000 57.000 58.000 58.000 58.000 58.000 1.000 1.000 0.495 57.571 °C
Temp ZONE1 57.000 57.000 57.000 58.000 59.000 59.000 59.000 2.000 2.000 0.666 58.314 °C

The frequency offsets and temperatures. Showing frequency offset (red, in parts per million, scale on right) and the temperatures.

These are field 4 (frequency) from the loopstats log file, and field 3 from the tempstats log file.



Server Offsets

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



Server Offset 10.0.50.10

peer offset 10.0.50.10 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.10 -64.948 -54.058 -38.335 1.426 39.834 59.239 96.291 78.169 113.297 23.172 1.422 µs 0.1203 3.437

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.100

peer offset 10.0.50.100 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.100 -48.690 -35.567 -23.107 13.026 49.311 73.081 102.134 72.418 108.648 23.191 12.958 µs 0.2551 3.173

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.20

peer offset 10.0.50.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.20 -92.816 -81.949 -69.170 -32.959 1.382 18.415 50.950 70.552 100.364 22.155 -33.750 µs 0.09291 2.839

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.30

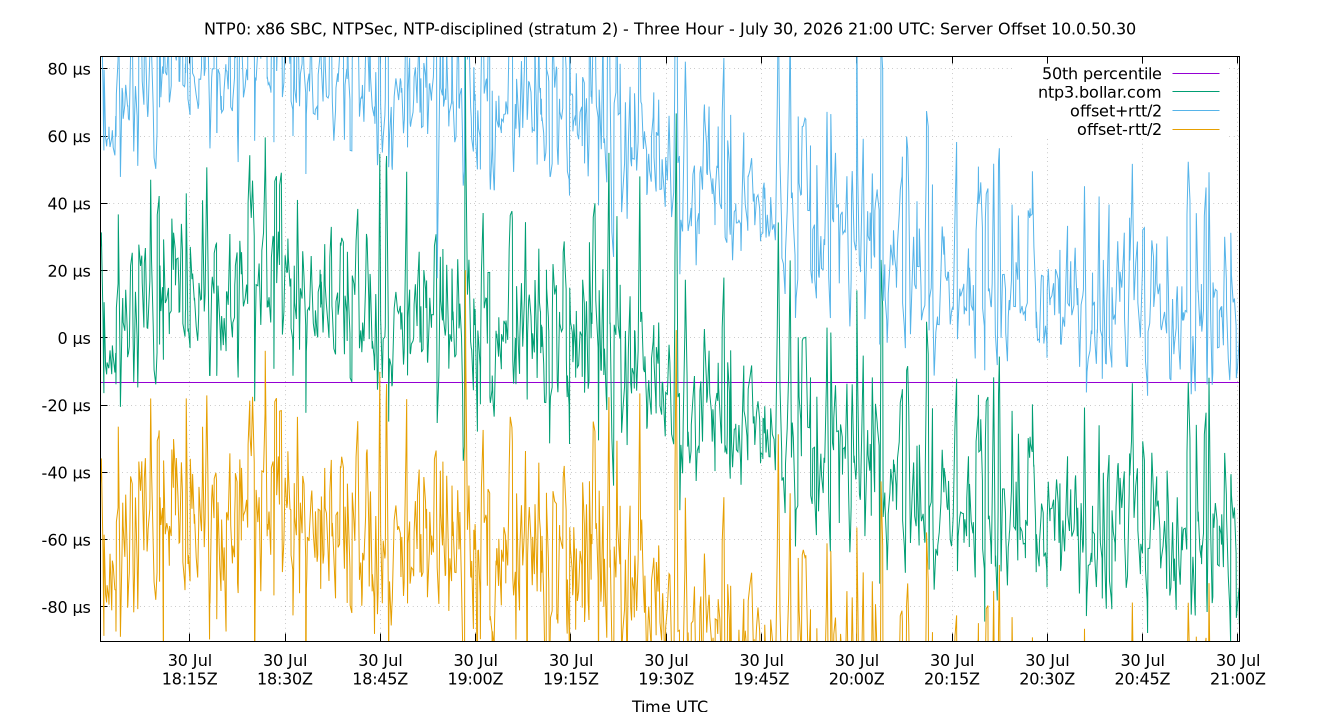

peer offset 10.0.50.30 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.30 -63.738 -51.680 -38.480 -4.366 29.599 51.067 83.711 68.079 102.747 21.790 -5.054 µs 0.1902 3.084

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.40

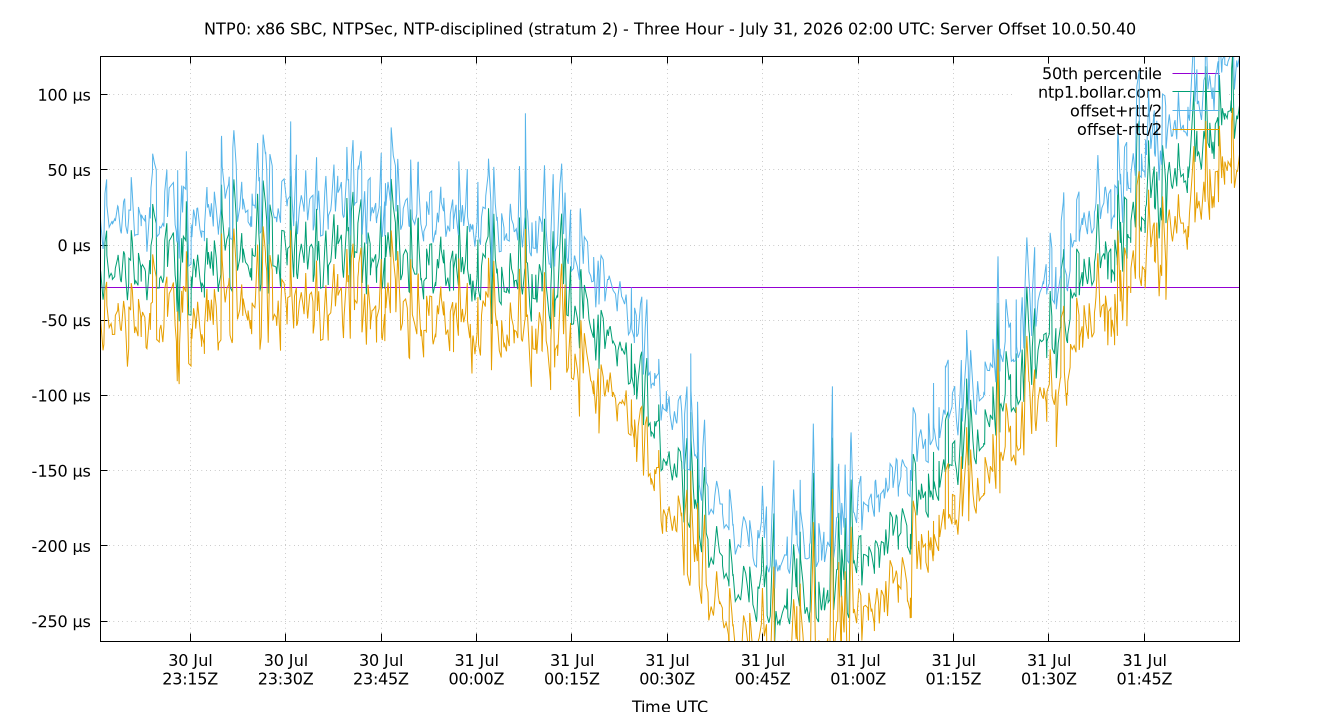

peer offset 10.0.50.40 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.40 -84.370 -74.425 -61.965 -27.788 6.484 23.158 55.813 68.449 97.583 21.501 -28.106 µs 0.1413 3.079

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.50

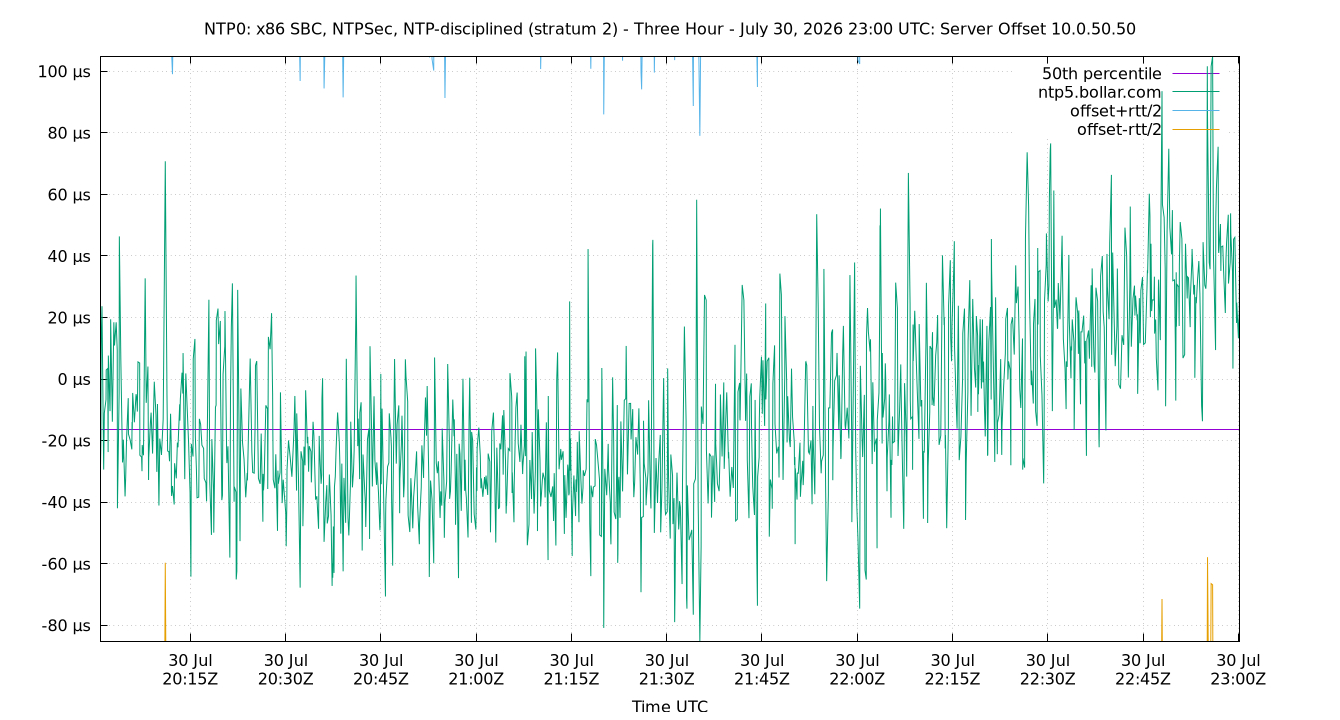

peer offset 10.0.50.50 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.50 -44.770 -32.402 -17.242 28.337 65.840 89.121 126.737 83.082 121.523 25.821 26.525 µs -0.01623 2.939

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Jitters

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.10

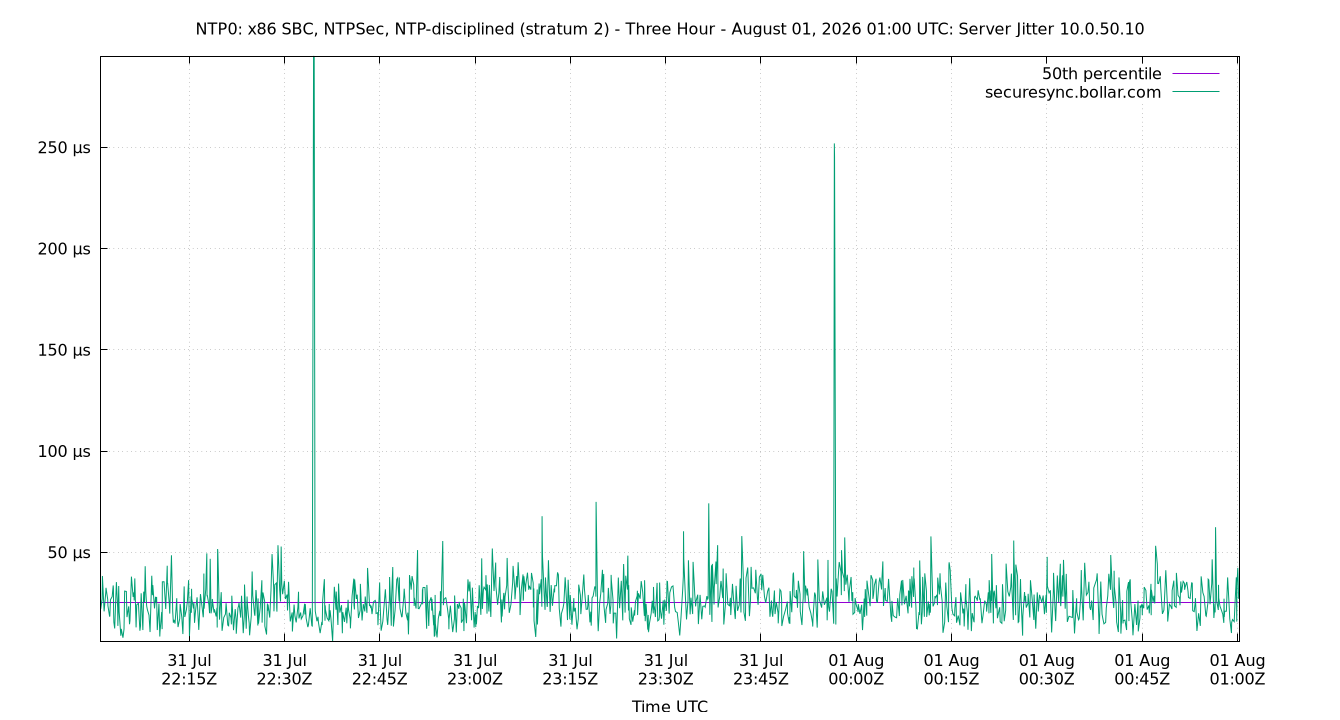

peer jitter 10.0.50.10 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.10 3.366 5.748 11.621 37.418 68.000 85.292 191.350 56.379 79.544 17.720 38.069 µs 1.429 11.46

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.100

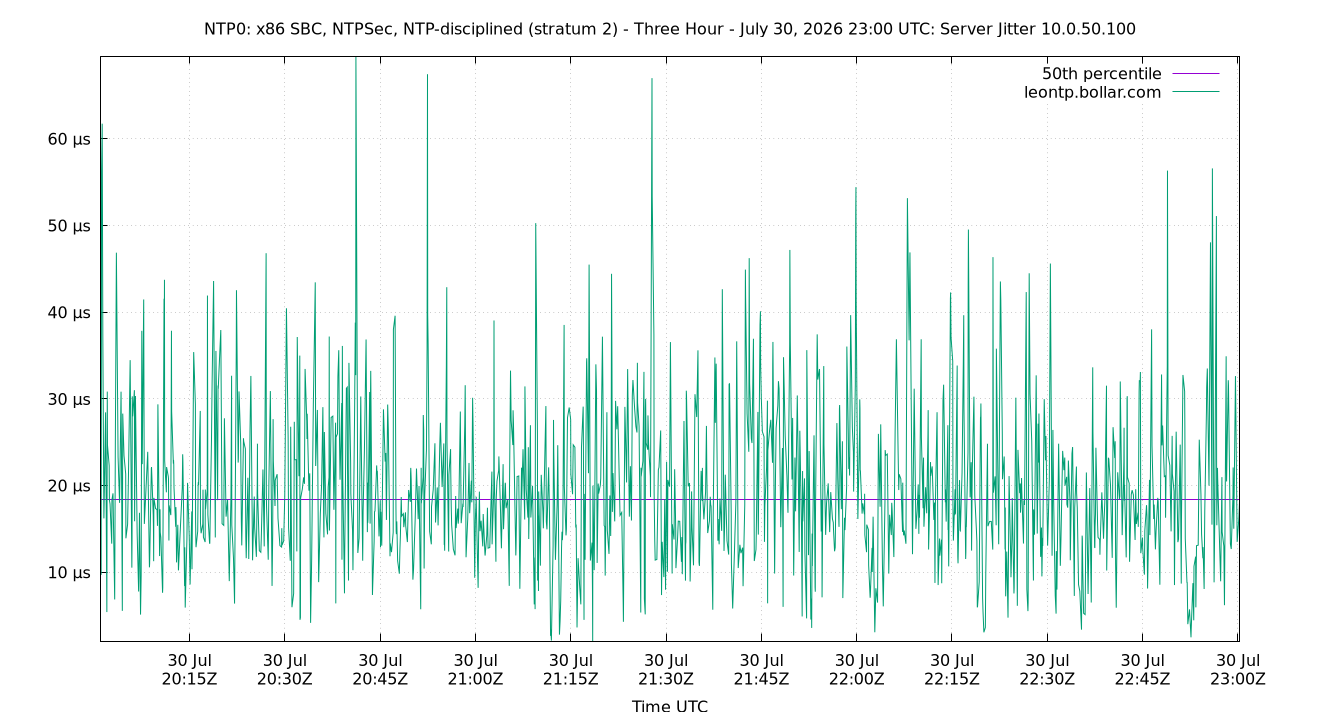

peer jitter 10.0.50.100 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.100 1.646 4.014 6.325 19.486 39.779 51.728 63.045 33.454 47.714 10.110 20.750 µs 0.9325 4.286

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.20

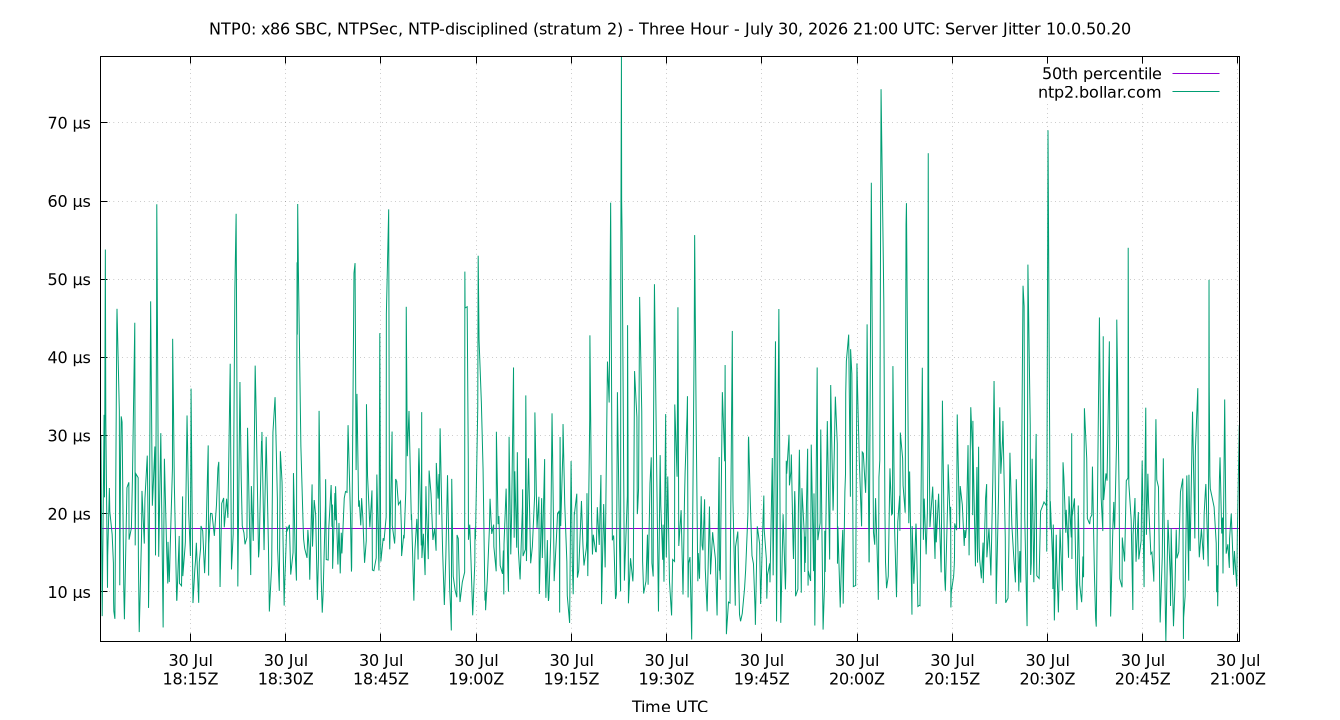

peer jitter 10.0.50.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.20 2.905 5.700 8.152 18.140 44.320 56.253 78.502 36.168 50.553 10.751 20.825 µs 1.419 5.426

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.30

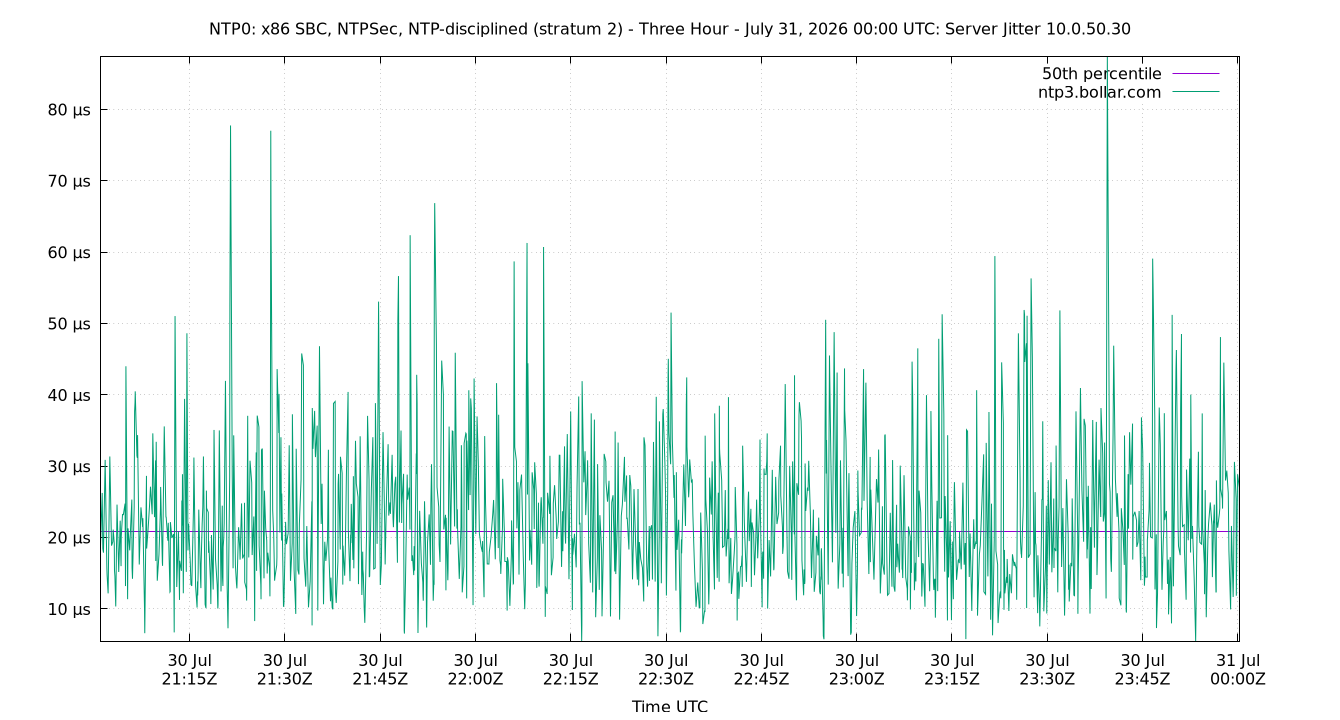

peer jitter 10.0.50.30 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.30 4.157 7.600 10.105 22.437 42.388 54.511 76.117 32.283 46.911 10.001 23.640 µs 1.026 4.721

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.40

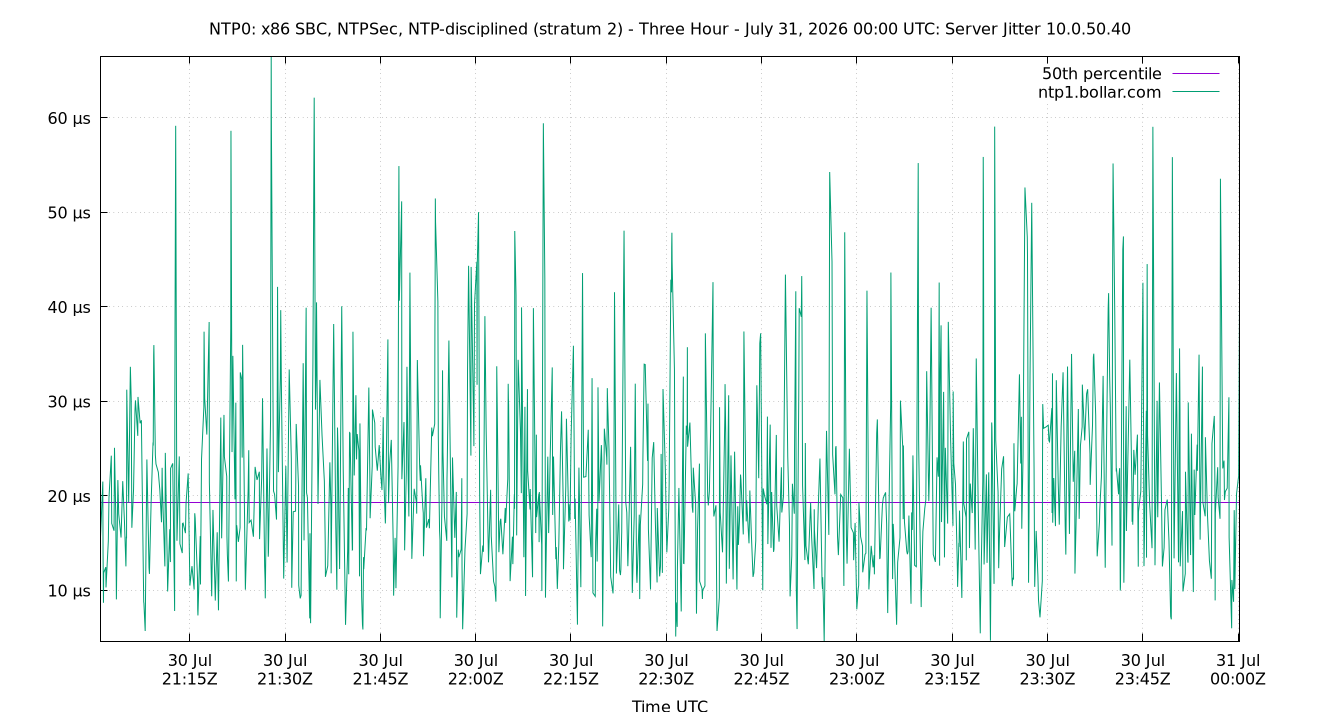

peer jitter 10.0.50.40 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.40 4.242 5.821 8.779 20.219 40.789 60.505 99.354 32.010 54.684 10.911 22.016 µs 1.597 8.143

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.50

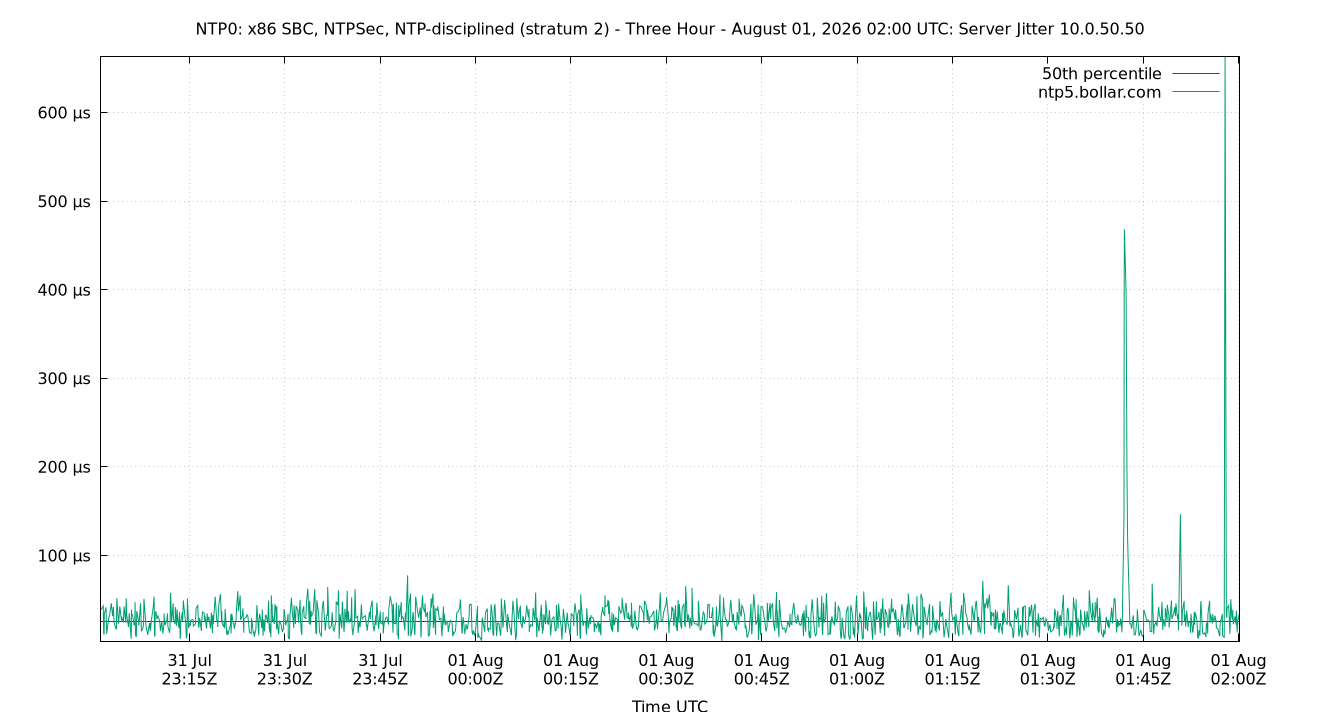

peer jitter 10.0.50.50 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.50 7.639 10.039 14.072 25.697 48.445 61.977 88.004 34.373 51.938 11.136 27.673 µs 1.282 5.785

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -3.634 -2.946 -2.375 -1.312 -0.427 -0.119 0.349 1.948 2.826 0.593 -1.358 ppm -0.3392 3.262
Local Clock Time Offset -64.947 -54.057 -38.334 1.425 39.833 59.238 96.290 78.167 113.295 23.172 1.422 µs 0.1203 3.437
Local RMS Frequency Jitter 245.065 292.758 348.214 533.739 759.171 856.323 926.640 410.957 563.565 124.640 538.408 ppb 0.3279 2.781
Local RMS Time Jitter 15.961 18.289 21.499 32.256 45.236 51.941 57.727 23.737 33.652 7.169 32.551 µs 0.4087 3.076
Server Jitter 10.0.50.10 3.366 5.748 11.621 37.418 68.000 85.292 191.350 56.379 79.544 17.720 38.069 µs 1.429 11.46
Server Jitter 10.0.50.100 1.646 4.014 6.325 19.486 39.779 51.728 63.045 33.454 47.714 10.110 20.750 µs 0.9325 4.286
Server Jitter 10.0.50.20 2.905 5.700 8.152 18.140 44.320 56.253 78.502 36.168 50.553 10.751 20.825 µs 1.419 5.426
Server Jitter 10.0.50.30 4.157 7.600 10.105 22.437 42.388 54.511 76.117 32.283 46.911 10.001 23.640 µs 1.026 4.721
Server Jitter 10.0.50.40 4.242 5.821 8.779 20.219 40.789 60.505 99.354 32.010 54.684 10.911 22.016 µs 1.597 8.143
Server Jitter 10.0.50.50 7.639 10.039 14.072 25.697 48.445 61.977 88.004 34.373 51.938 11.136 27.673 µs 1.282 5.785
Server Offset 10.0.50.10 -64.948 -54.058 -38.335 1.426 39.834 59.239 96.291 78.169 113.297 23.172 1.422 µs 0.1203 3.437
Server Offset 10.0.50.100 -48.690 -35.567 -23.107 13.026 49.311 73.081 102.134 72.418 108.648 23.191 12.958 µs 0.2551 3.173
Server Offset 10.0.50.20 -92.816 -81.949 -69.170 -32.959 1.382 18.415 50.950 70.552 100.364 22.155 -33.750 µs 0.09291 2.839
Server Offset 10.0.50.30 -63.738 -51.680 -38.480 -4.366 29.599 51.067 83.711 68.079 102.747 21.790 -5.054 µs 0.1902 3.084
Server Offset 10.0.50.40 -84.370 -74.425 -61.965 -27.788 6.484 23.158 55.813 68.449 97.583 21.501 -28.106 µs 0.1413 3.079
Server Offset 10.0.50.50 -44.770 -32.402 -17.242 28.337 65.840 89.121 126.737 83.082 121.523 25.821 26.525 µs -0.01623 2.939
Temp ZONE0 57.000 57.000 57.000 58.000 58.000 58.000 58.000 1.000 1.000 0.495 57.571 °C
Temp ZONE1 57.000 57.000 57.000 58.000 59.000 59.000 59.000 2.000 2.000 0.666 58.314 °C
Summary as CSV file

Our production NTP servers share the same mast-mounted Tallysman Accutenna® TW3972 Triple Band GNSS Antenna + L-band Correction Services antenna using a Tallysman TW164 1-to-4 Port Smart Power GNSS Signal Splitter. No external NTP servers are contacted and all servers, with the exception of NTP6, the LeoNTP 1200, poll each other. Internal NTP clients poll NTP4 or NTP6.

The LeoNTP 1200 is a black-box appliance that doesn't support timing reporting. Its status can be checked by viwing the Server Jitter & Offset from any of the other servers. It can be found at NTP7 or leontp.bollar.com (10.0.50.100). The LeoNTP link above will take you to the Server Jitter between the LeoNTP and the currently selected server.

NTPQ Stats

NTPQ Statistics are not not available for this NTP server.'

GNSS Performance

GNSS Performance is not available for this NTP server.'

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.

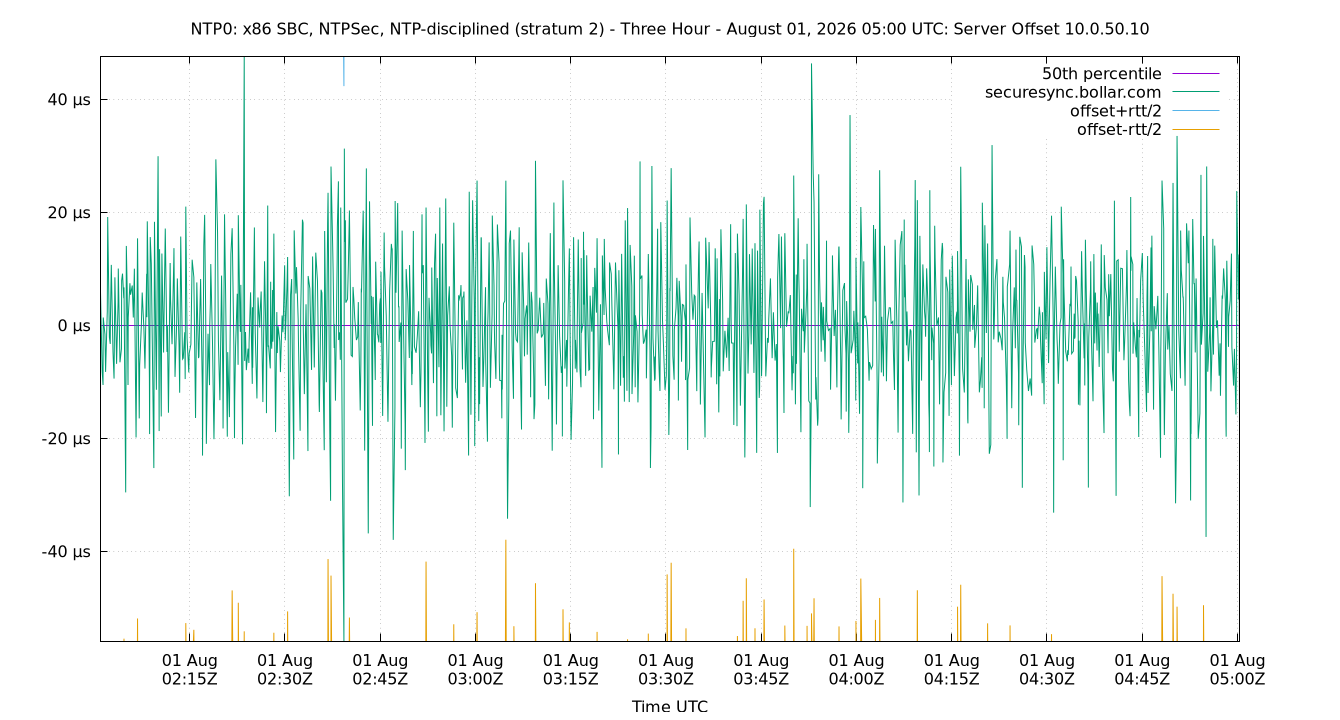

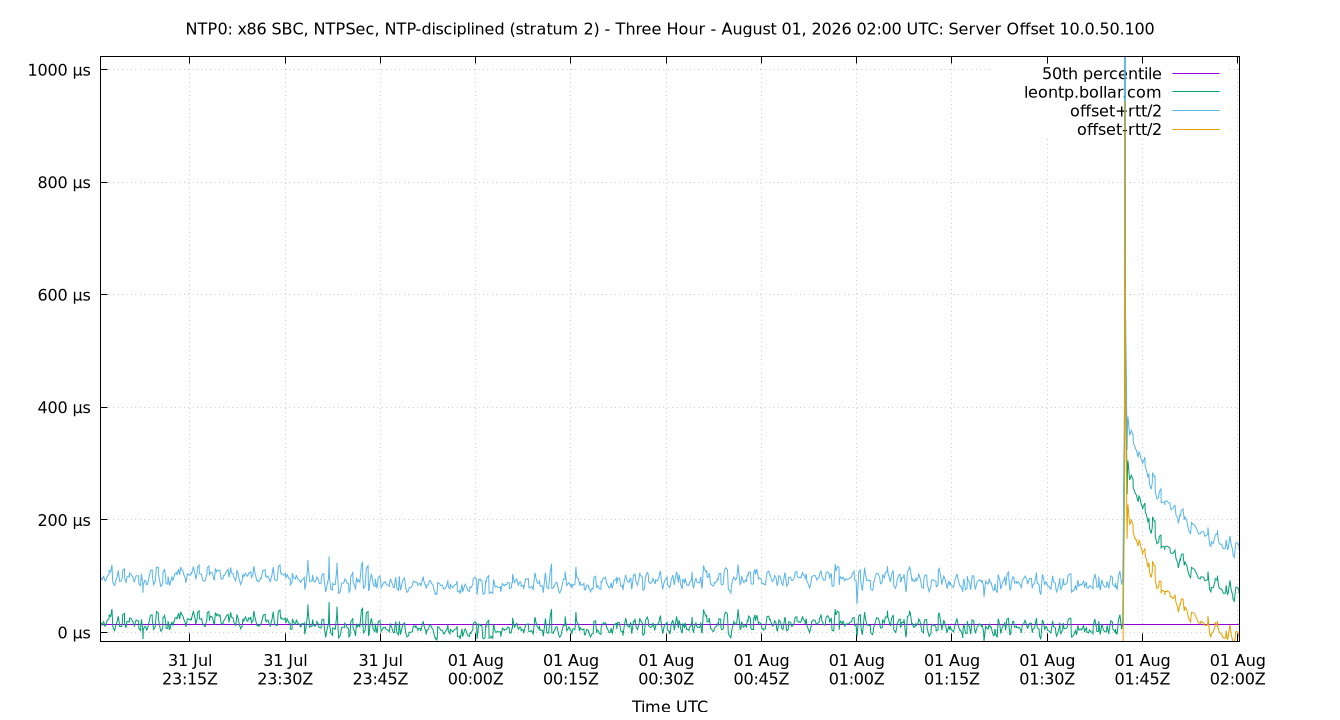

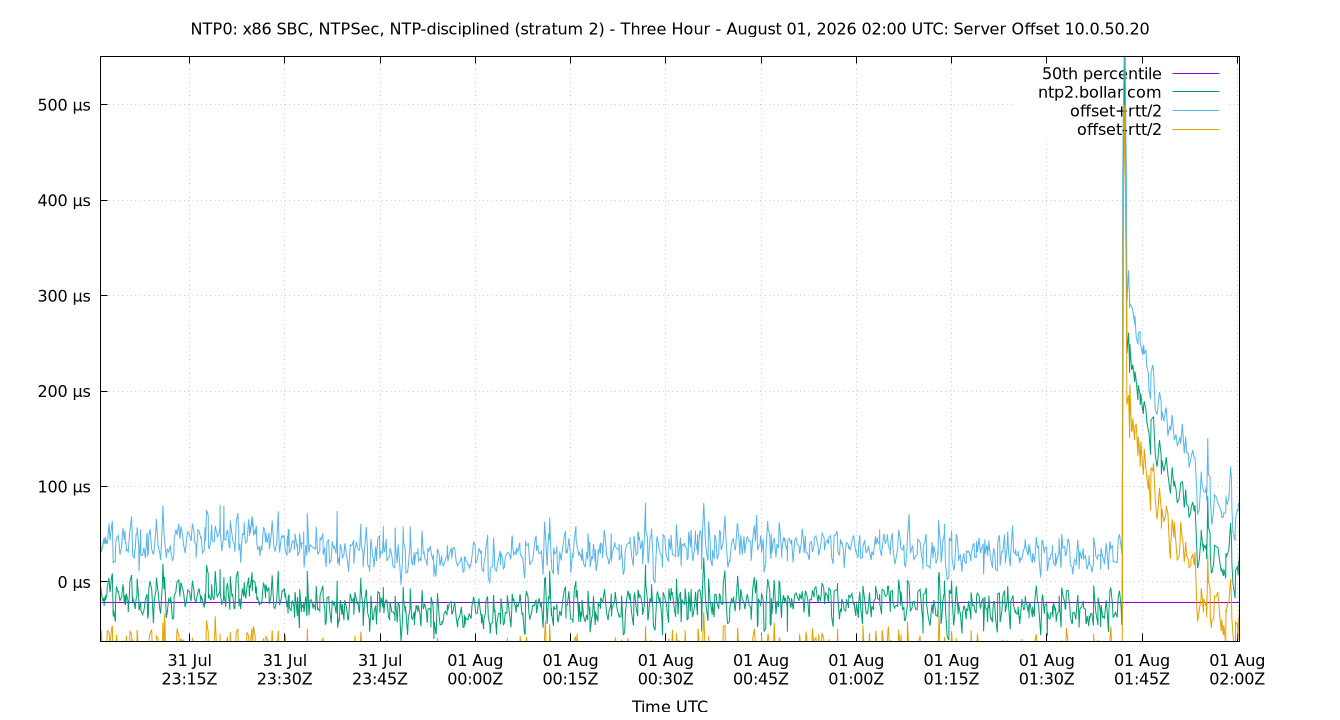

time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
Skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the FIsher-Pearson moment of skewness. There are other different ways to calculate Skewness Wikipedia describes Skewness best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
Kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses standard Kurtosis. There are other different ways to calculate Kurtosis.
A normal distribution has a Kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
