NTP0: x86 SBC, NTPSec, NTP-disciplined (stratum 2)
One Day - July 30, 2026 20:00 UTC

Report generated: Thu Jul 30 20:03:00 2026 UTC
Start Time: Wed Jul 29 20:03:00 2026 UTC
End Time: Thu Jul 30 20:03:00 2026 UTC
Report Period: 1.0 days

Return to It's About Time

Section Time Frame NTP Server
Local Clock Time/Frequency Offsets One Hour NTP0: x86 SBC, NTPSec, NTP-disciplined (stratum 2)
Local RMS Time Jitter Three Hour NTP1: RPi4B, Uputronics M8, NTPSec
Local RMS Frequency Jitter Six Hour NTP2: CM4, Bollar ZED-F9T, NTPSec
Local Clock Time Offset Histogram Twelve Hour NTP3: CM5, TimeHat LEA-M8T, NTPSec
Local Temperatures One Day NTP4: SecureSync, Rubidium, NTP (Classic)
Local Frequency/Temp Two Day NTP5: RPi3B+, Uputronics MAX-M8Q, NTPSec
Local GPS Three Day NTP6: CM4, TimeBeat OTC Mini, PTP
Server Offsets Seven Day NTP7: LeoNTP, Standalone GNSS, Firmware
Server Jitters Fourteen Day (Updated Daily)
Summary One Month (Updated Daily)
NTPQ Stats
GNSS Performance

NTP0 runs on a low-power x86 single board computer with no GNSS or PPS hardware; it is disciplined over the network by NTP only (stratum 2, from the GNSS fleet). It processes and renders the NTPViz reports and lets us observe the effects of CPU load on NTP jitter.

If graphs don't match report time above, force refresh the browser. The images have been cached.


Local Clock Time/Frequency Offsets

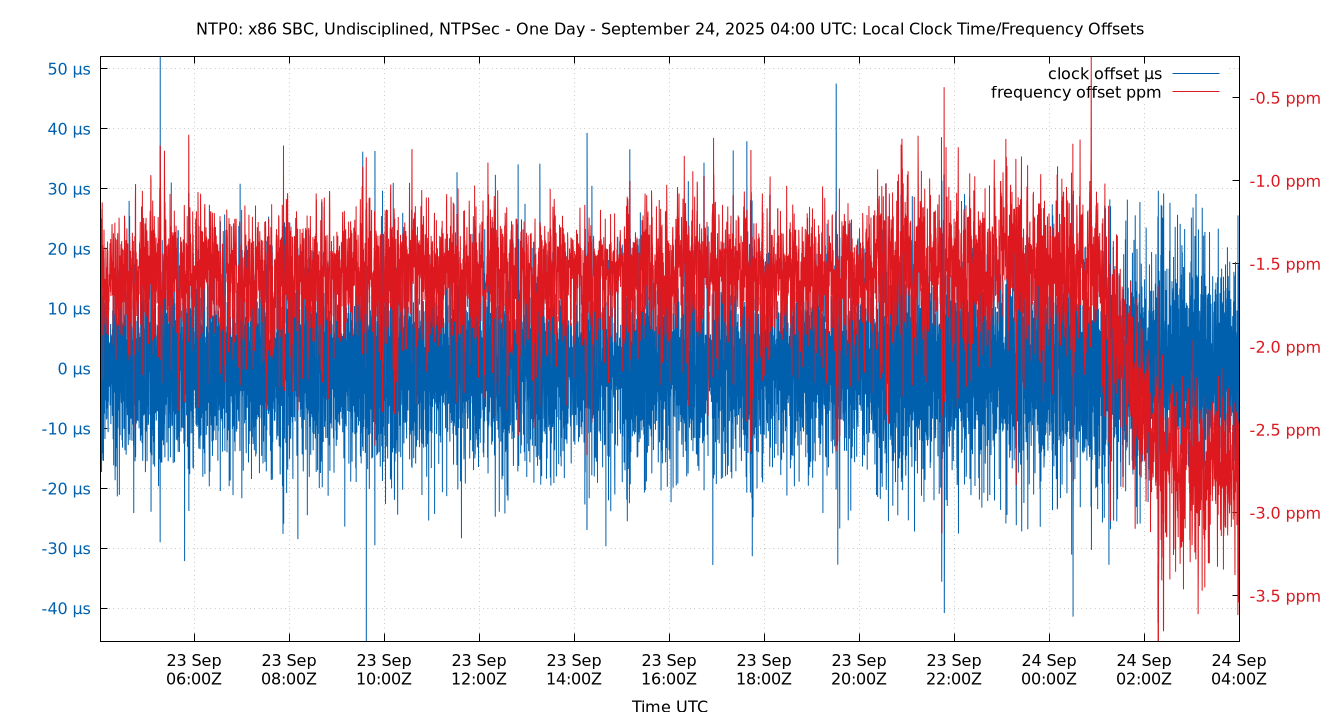

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -87.565 -55.506 -39.436 1.479 43.804 64.518 153.003 83.240 120.024 24.649 1.328 µs 0.209 3.817
Local Clock Frequency Offset -4.680 -3.242 -2.575 -1.317 -0.429 0.127 4.703 2.146 3.369 0.679 -1.388 ppm -0.2792 5.537

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

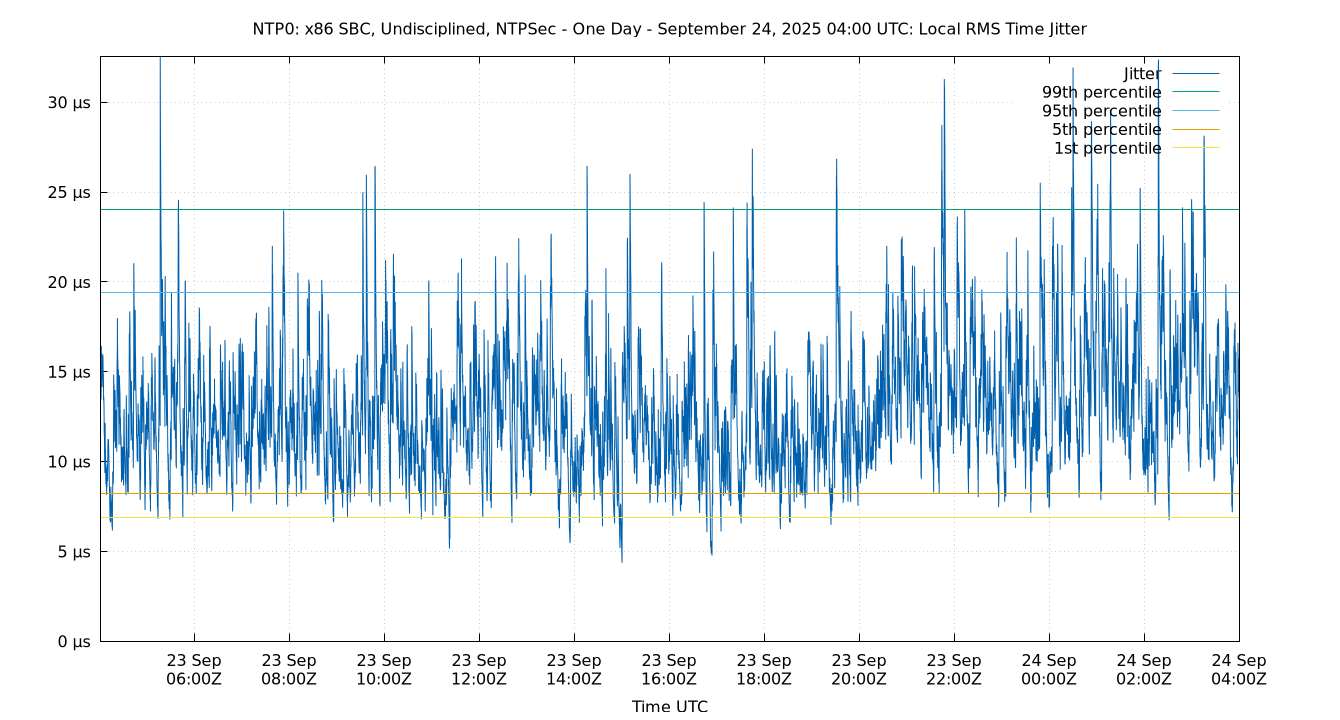

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 13.106 17.468 20.719 32.674 47.928 58.255 84.561 27.209 40.787 8.505 33.376 µs 0.7268 4.469

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

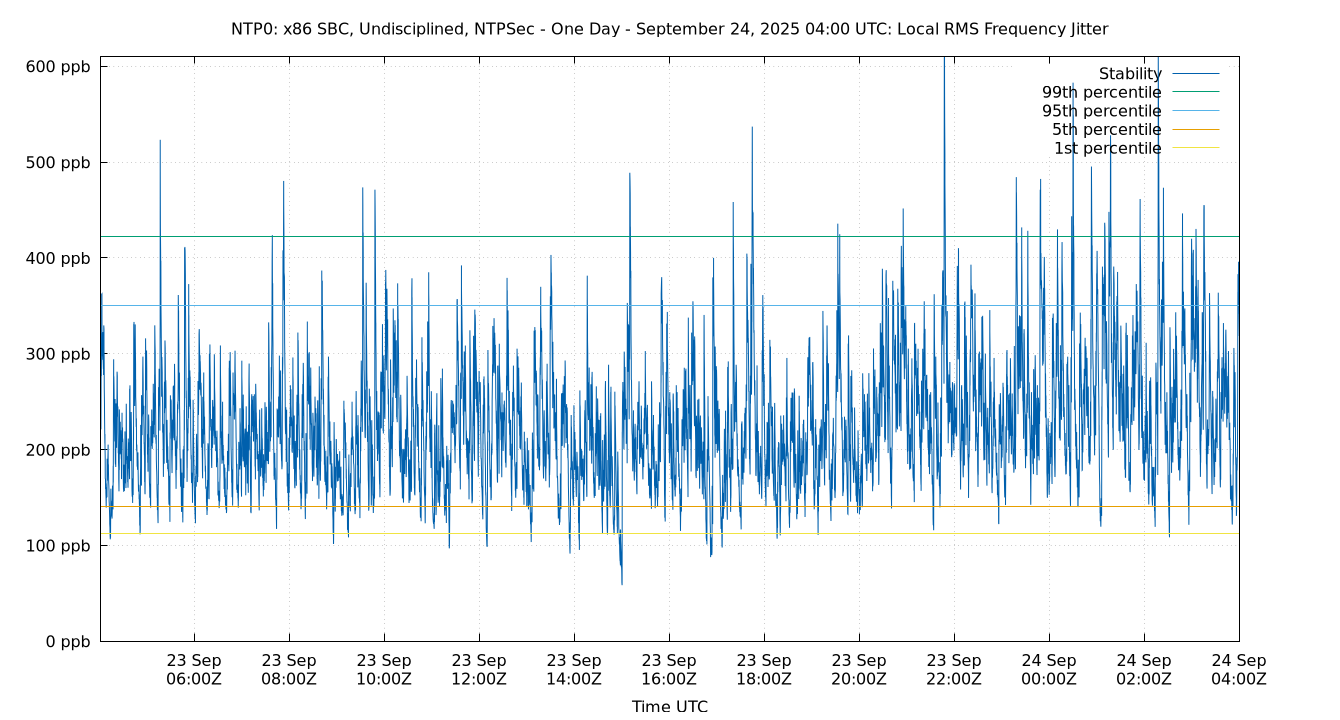

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 0.214 0.279 0.342 0.546 0.845 1.018 1.453 0.503 0.739 0.158 0.563 ppm 0.7801 4.169

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

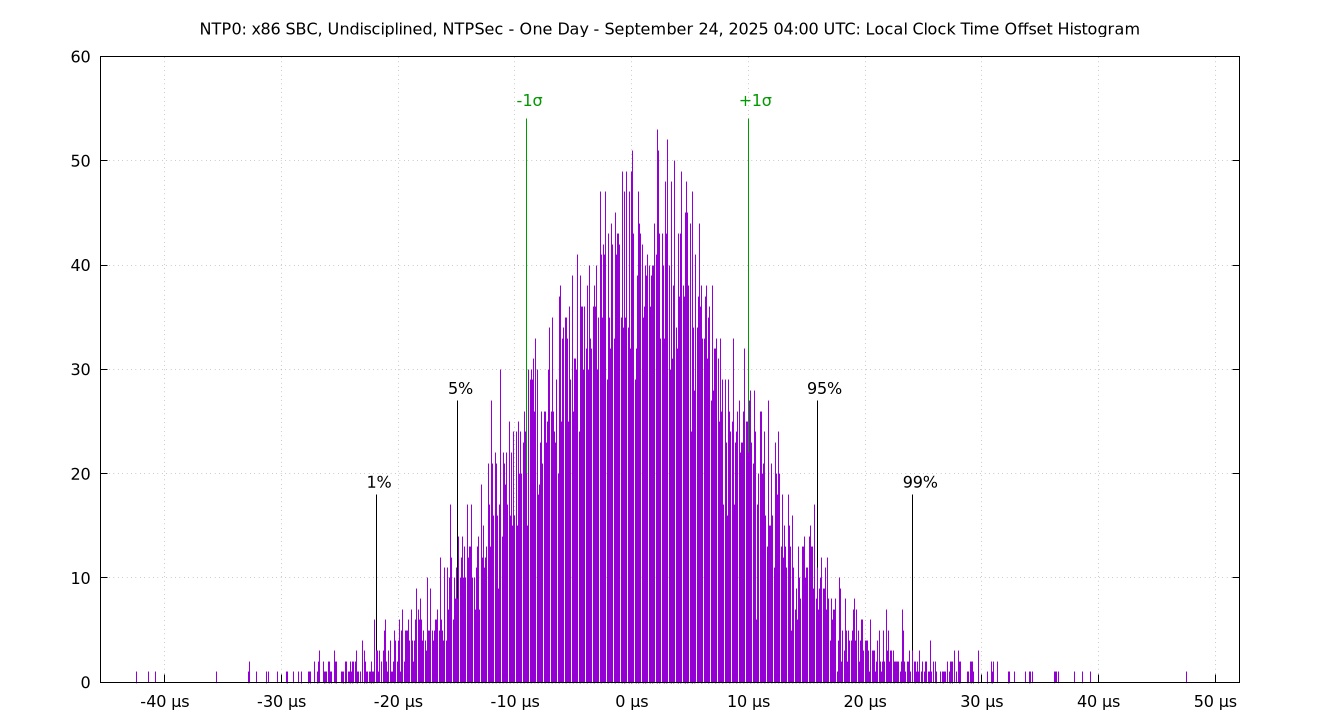

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -87.565 -55.506 -39.436 1.479 43.804 64.518 153.003 83.240 120.024 24.649 1.328 µs 0.209 3.817

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Local Temperatures

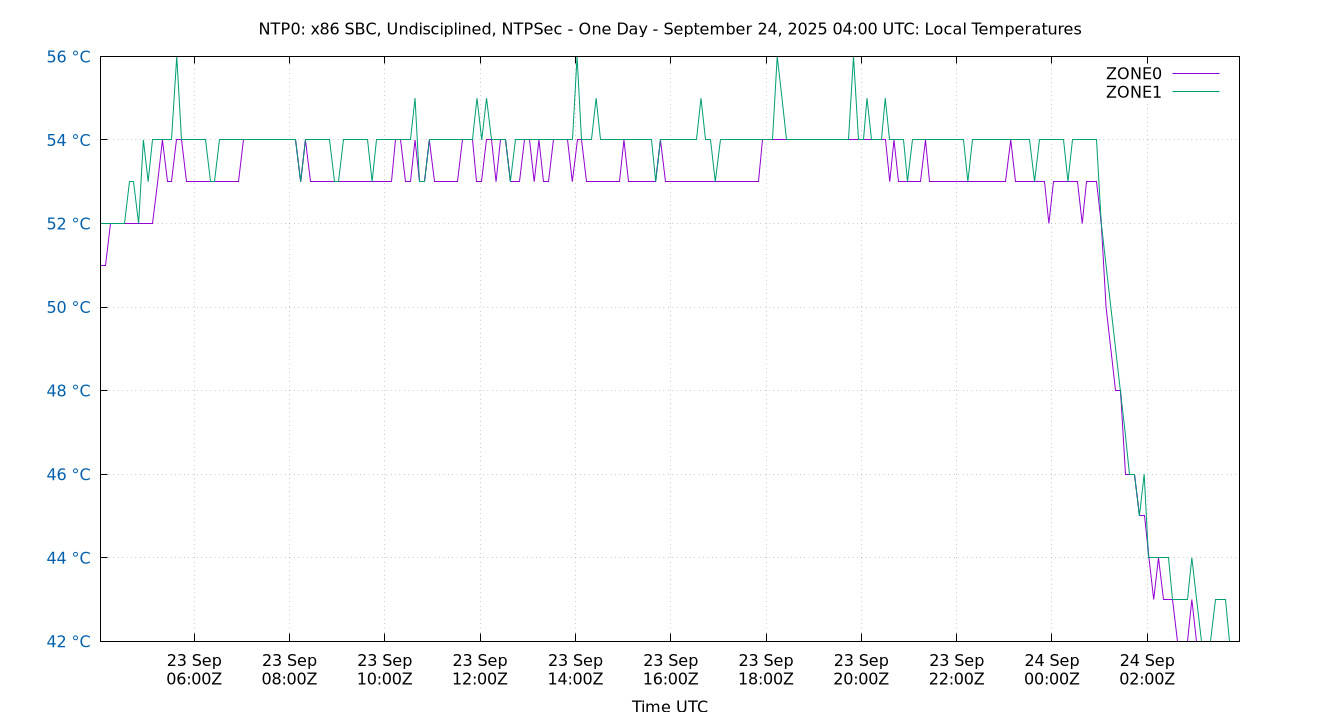

local temps plot

Local temperatures. These will be site-specific depending upon what temperature sensors you collect data from. Temperature changes affect the local clock crystal frequency and stability. The math of how temperature changes frequency is complex, and also depends on crystal aging. So there is no easy way to correct for it in software. This is the single most important component of frequency drift.

The Local Temperatures are from field 3 from the tempstats log file.



Local Frequency/Temp

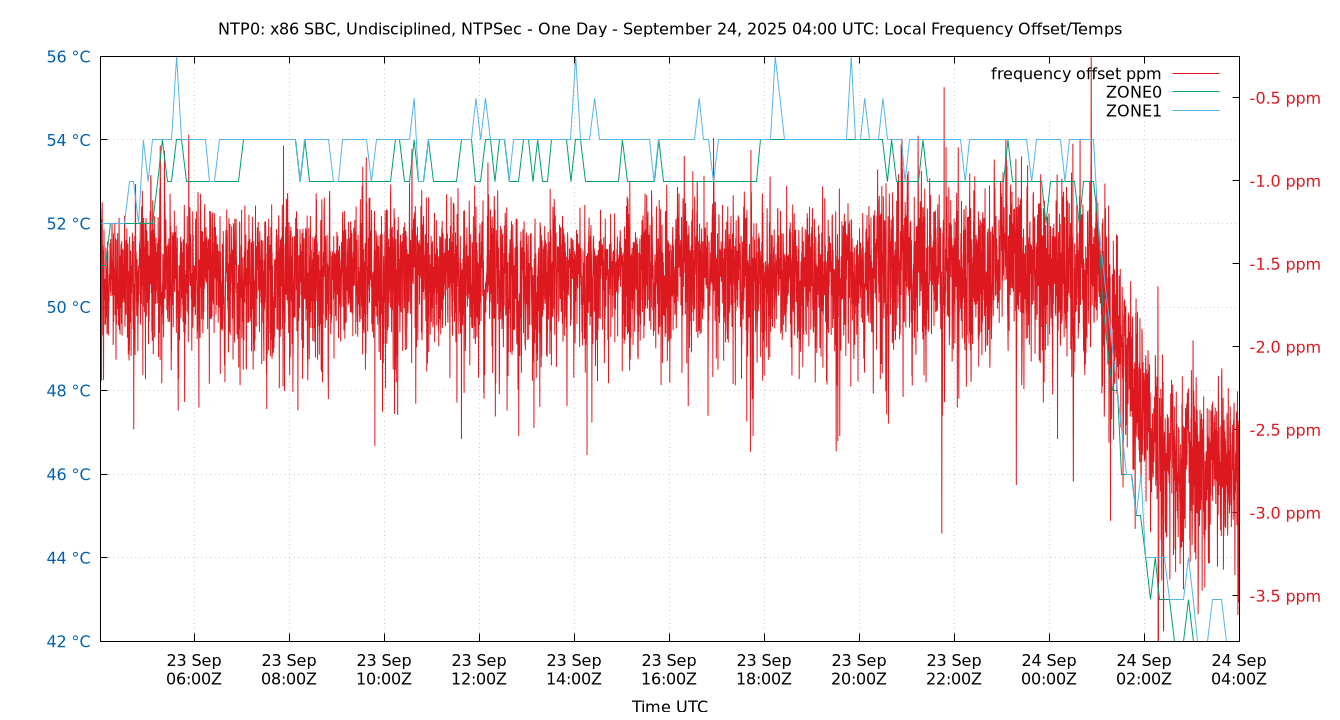

local freq temps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -4.680 -3.242 -2.575 -1.317 -0.429 0.127 4.703 2.146 3.369 0.679 -1.388 ppm -0.2792 5.537
Temp ZONE0 48.000 48.000 50.000 58.000 58.000 58.000 58.000 8.000 10.000 2.398 56.810 °C
Temp ZONE1 48.000 49.000 50.000 58.000 59.000 59.000 60.000 9.000 10.000 2.466 57.275 °C

The frequency offsets and temperatures. Showing frequency offset (red, in parts per million, scale on right) and the temperatures.

These are field 4 (frequency) from the loopstats log file, and field 3 from the tempstats log file.



Server Offsets

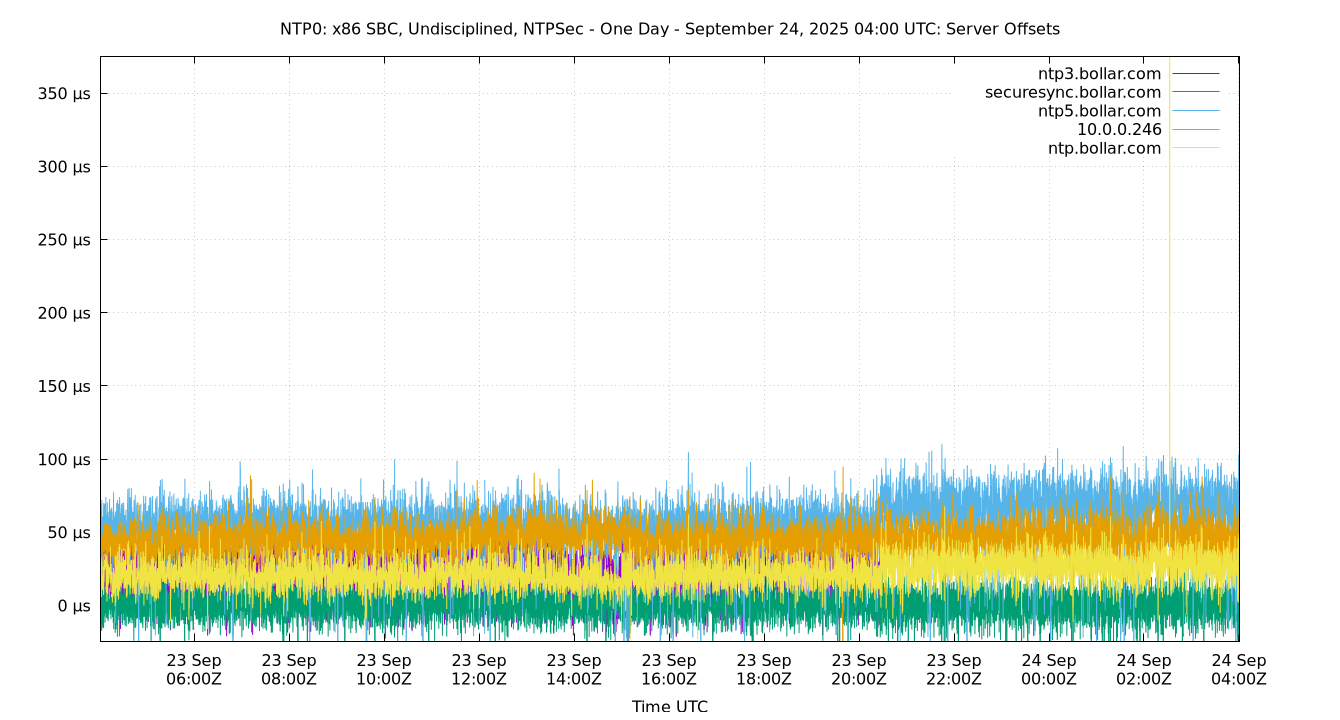

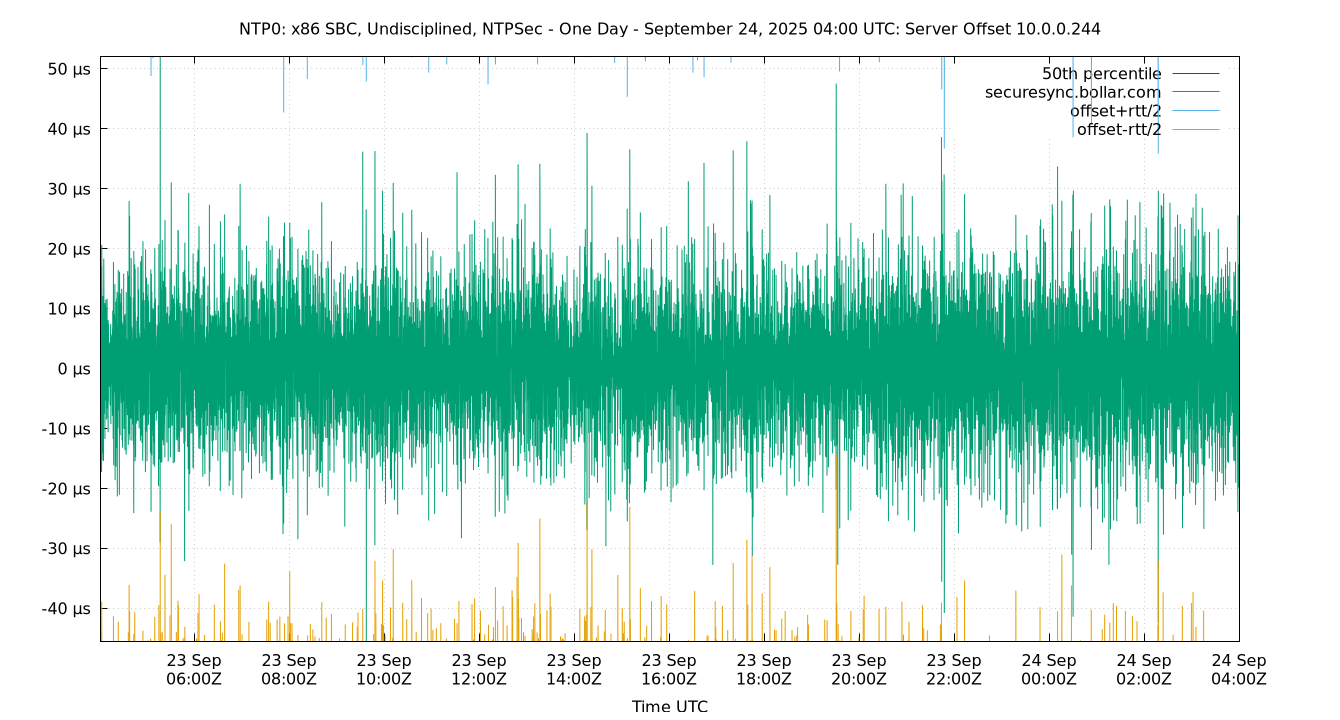

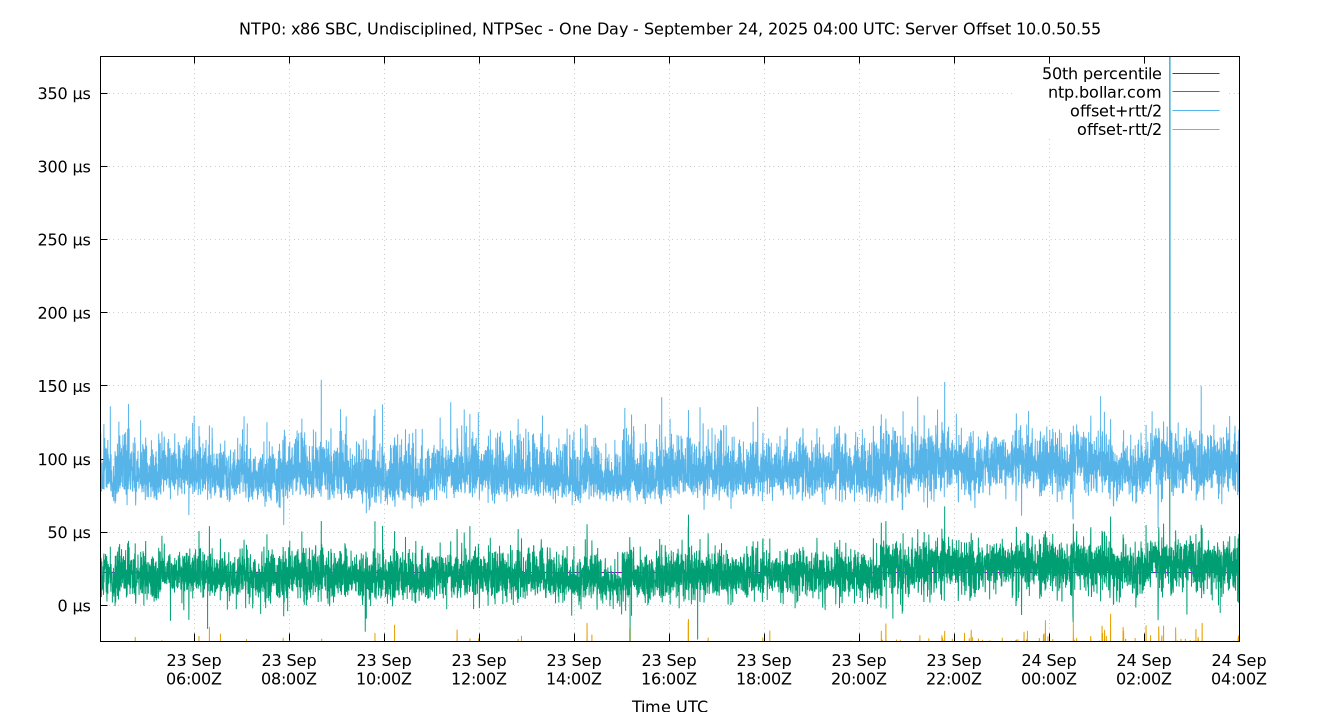

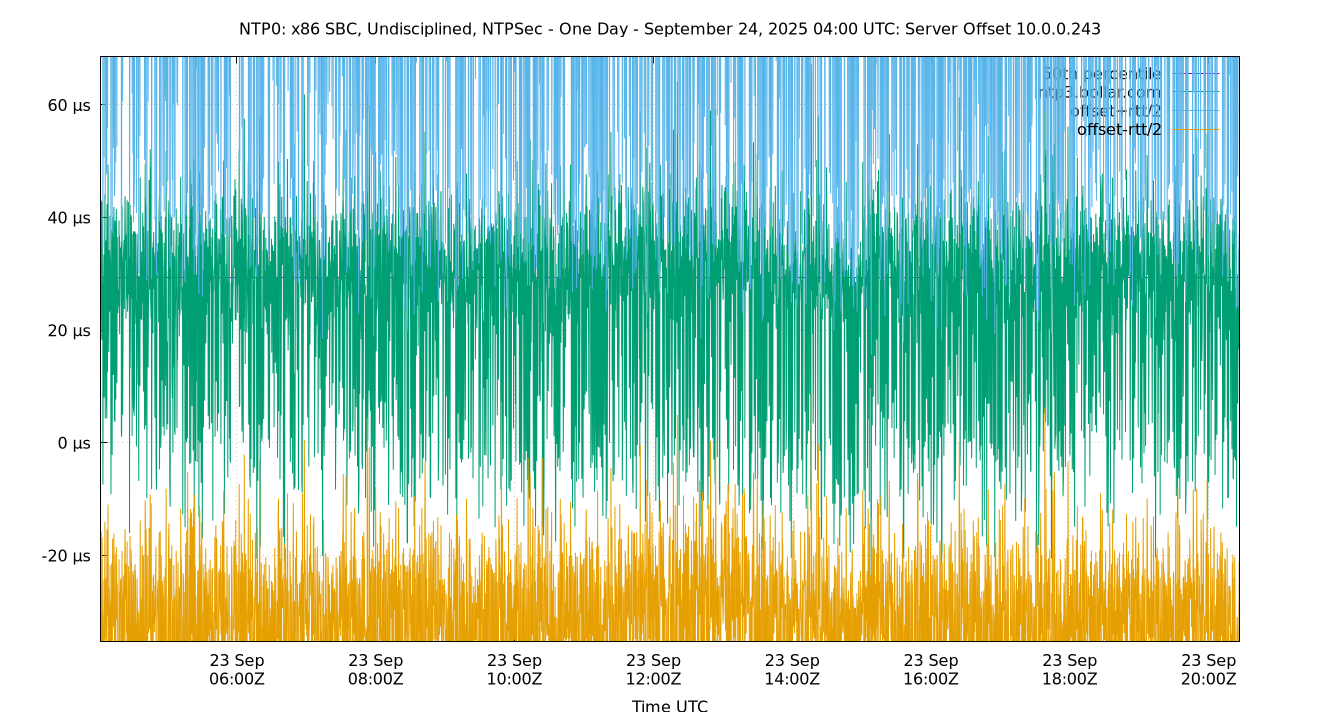

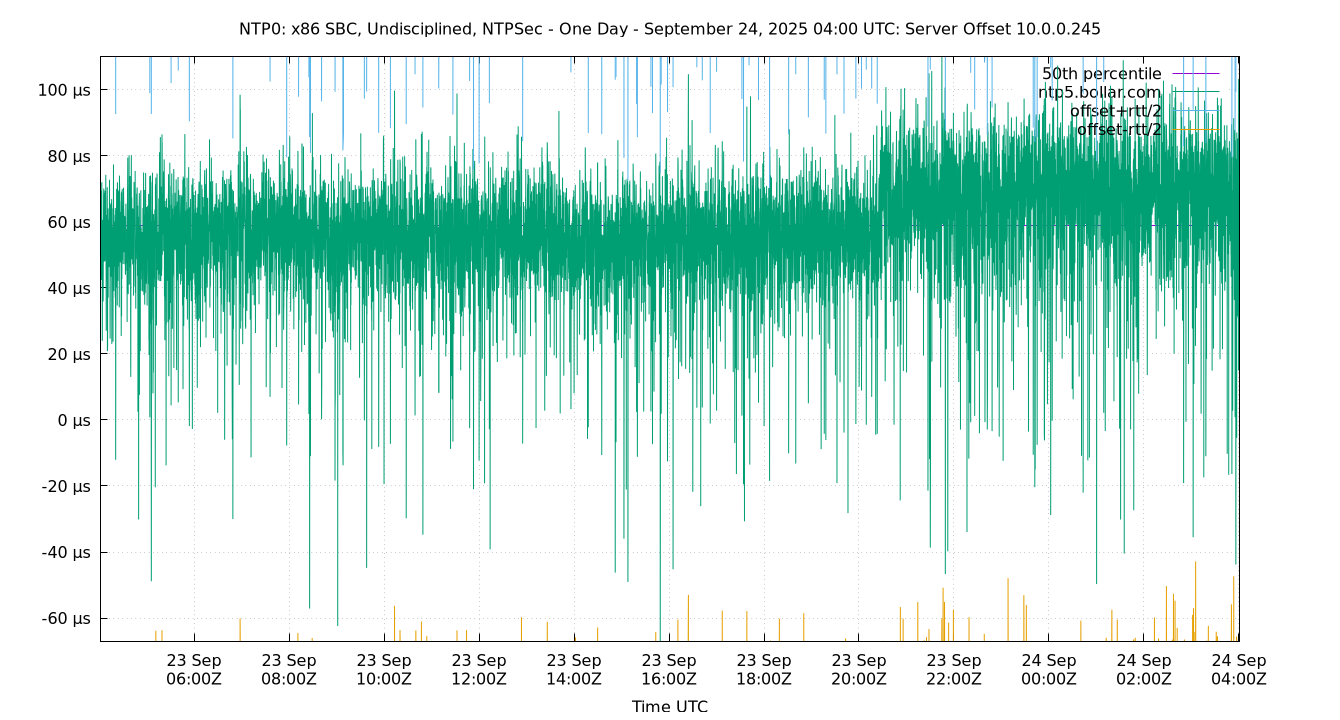

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



Server Offset 10.0.50.10

peer offset 10.0.50.10 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.10 -87.566 -55.507 -39.437 1.480 43.805 64.519 153.004 83.242 120.026 24.650 1.328 µs 0.209 3.817

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.100

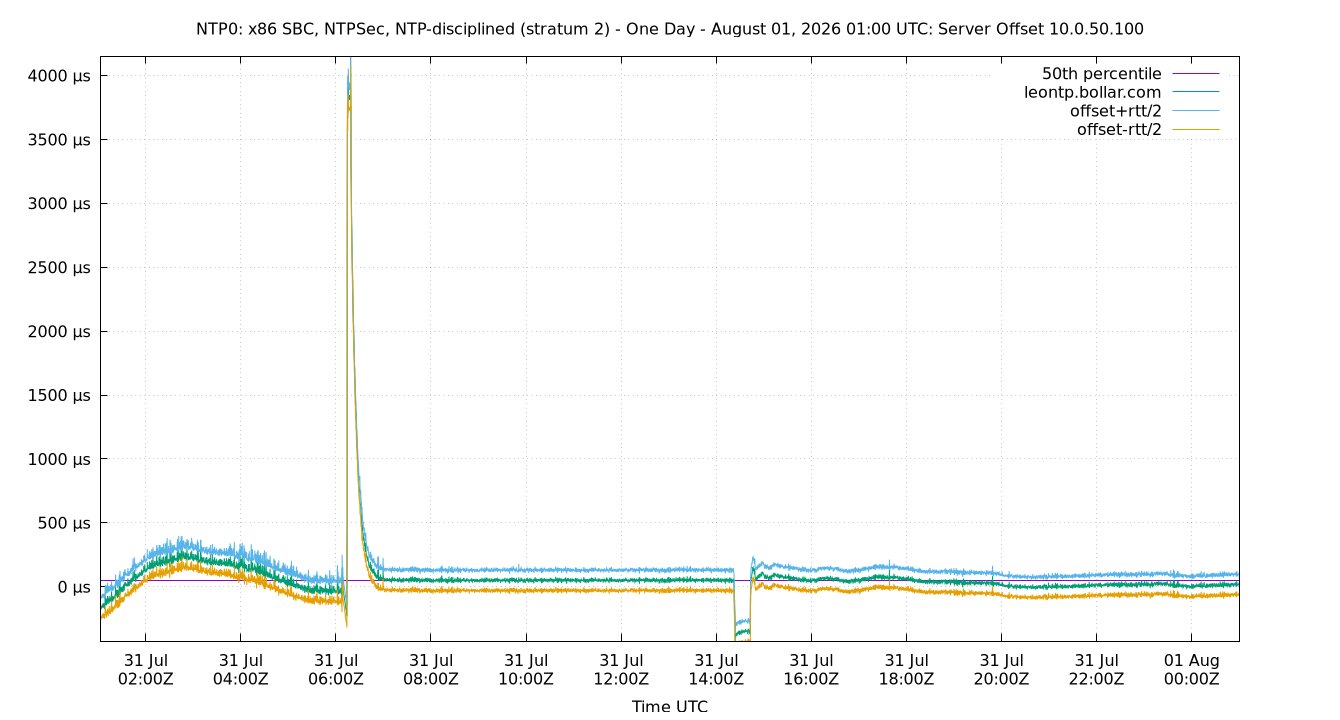

peer offset 10.0.50.100 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.100 -310.154 -254.945 -10.224 48.246 88.149 111.573 197.494 98.373 366.518 45.542 42.423 µs -4.332 30.49

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.20

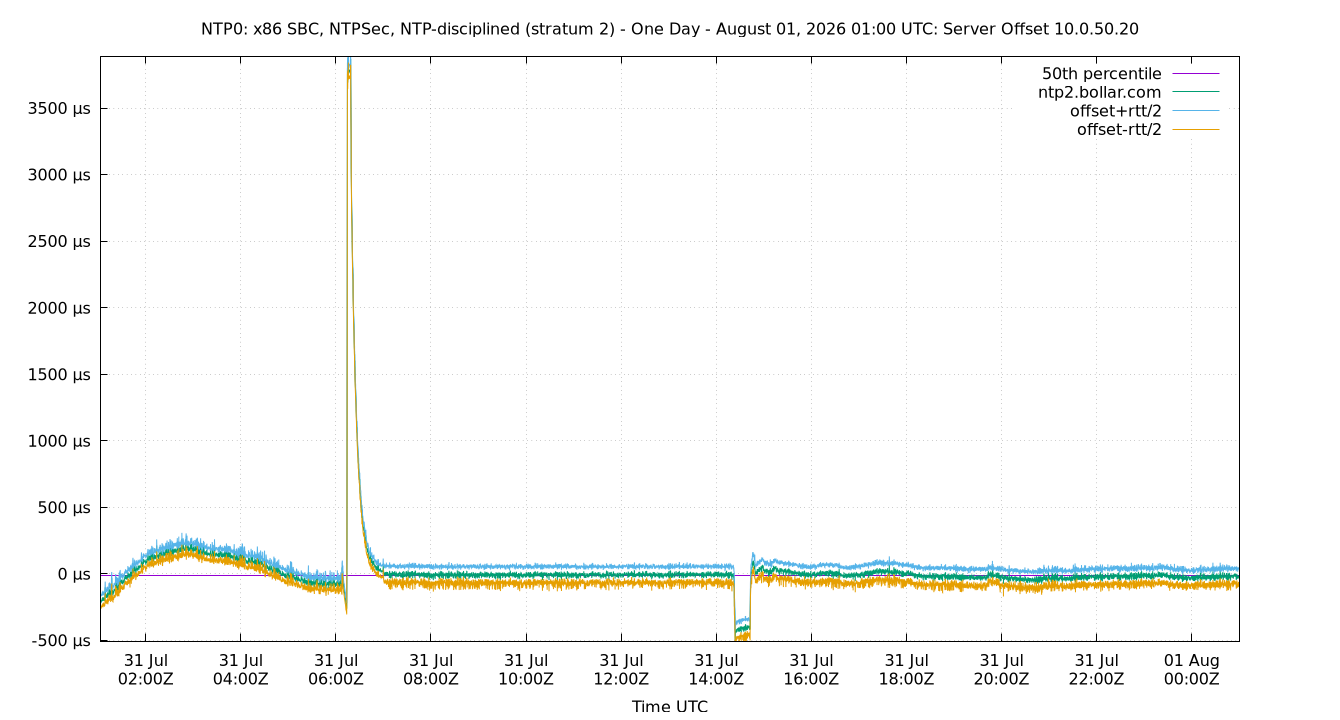

peer offset 10.0.50.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.20 -347.796 -306.332 -54.682 3.865 40.743 63.047 118.489 95.425 369.379 45.498 -3.169 µs -4.473 31.23

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.30

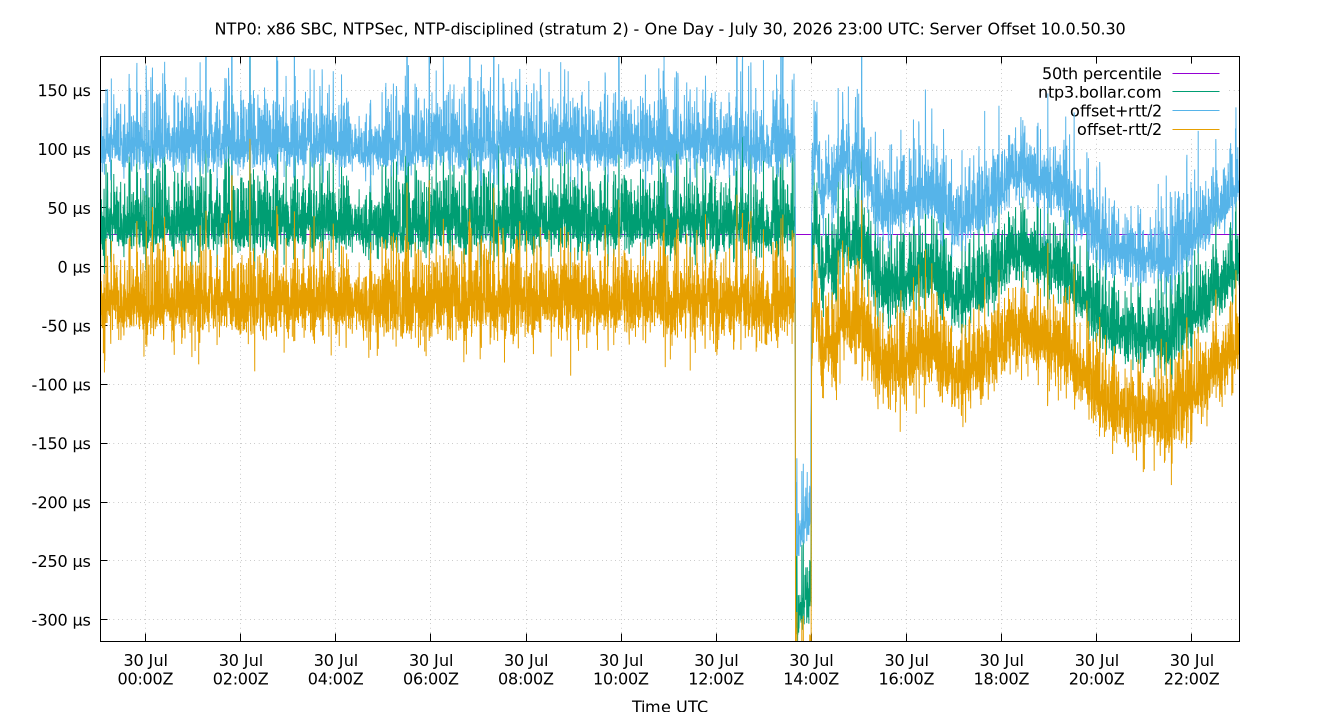

peer offset 10.0.50.30 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.30 -318.225 -273.742 -26.165 31.674 68.426 91.084 178.808 94.591 364.826 44.521 25.044 µs -4.474 31.86

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.40

peer offset 10.0.50.40 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.40 -340.530 -303.231 -49.830 9.436 46.545 70.420 145.658 96.375 373.651 47.034 1.859 µs -4.428 29.98

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 10.0.50.50

peer offset 10.0.50.50 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.50 -306.122 -244.532 0.817 60.554 99.713 123.246 215.111 98.896 367.778 45.435 54.137 µs -4.249 30.15

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Jitters

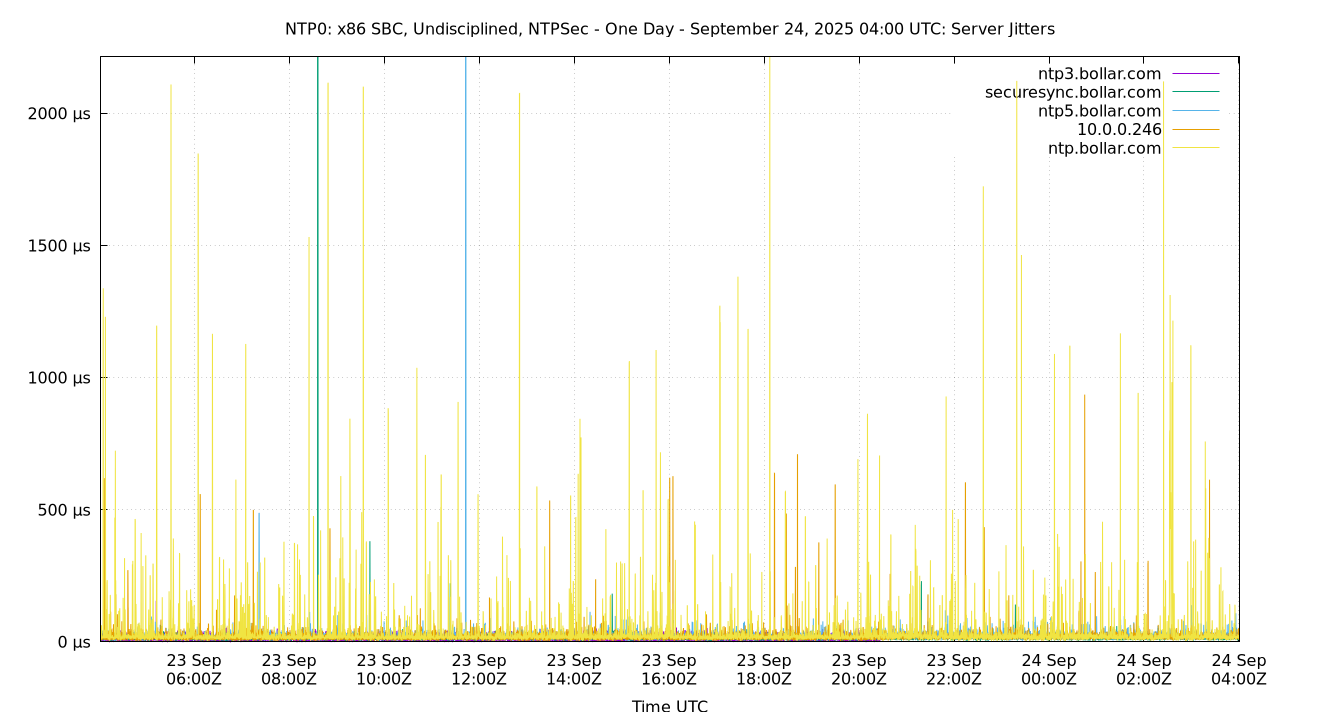

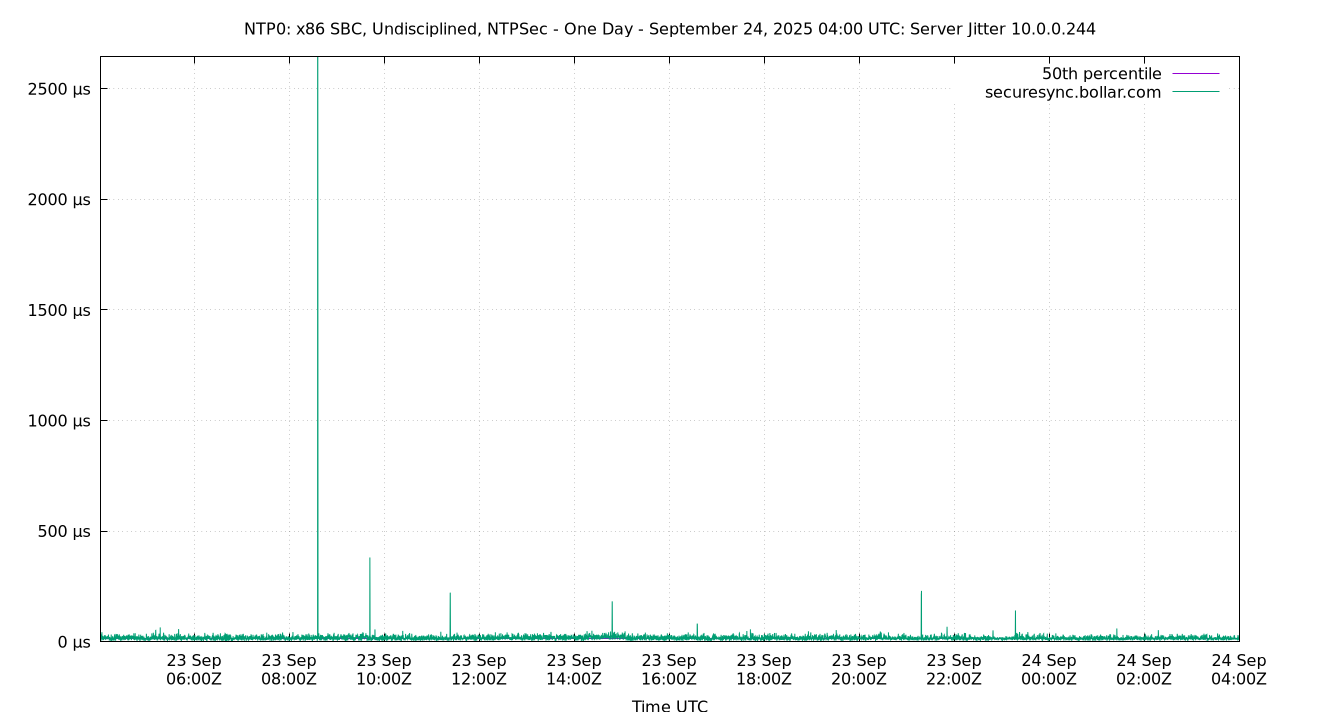

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



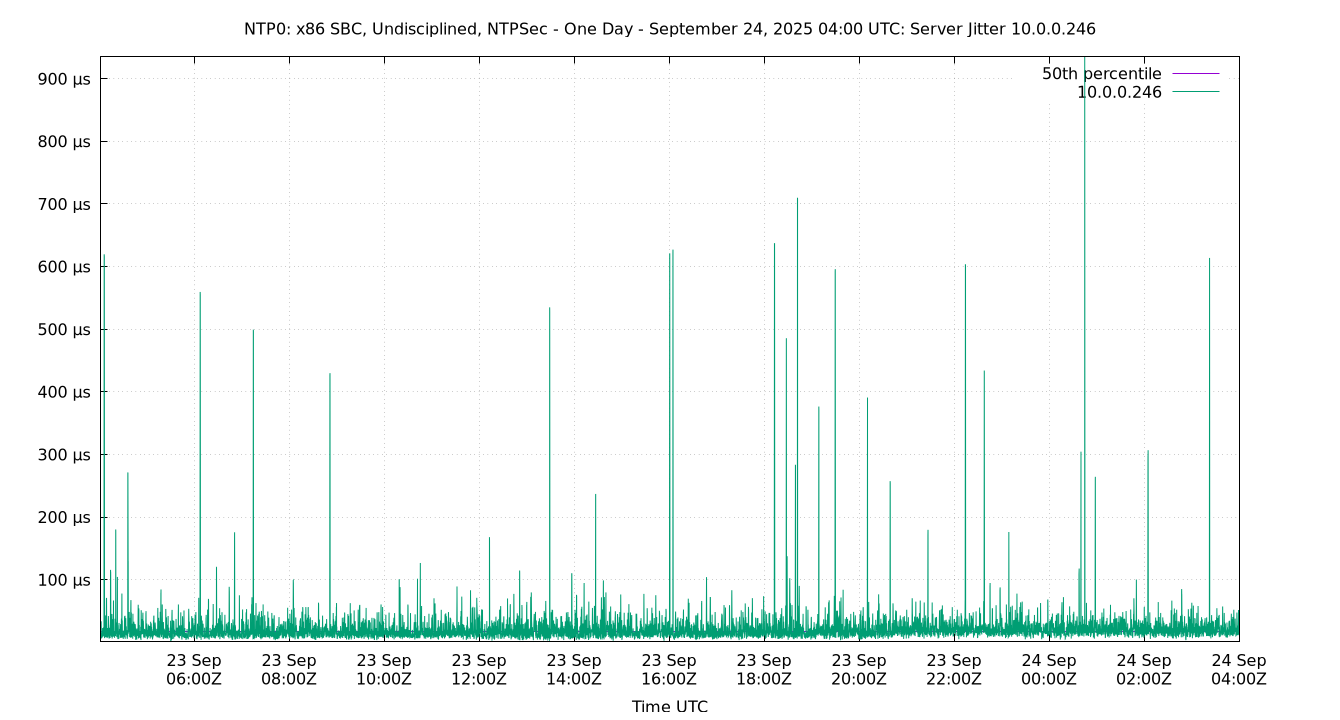

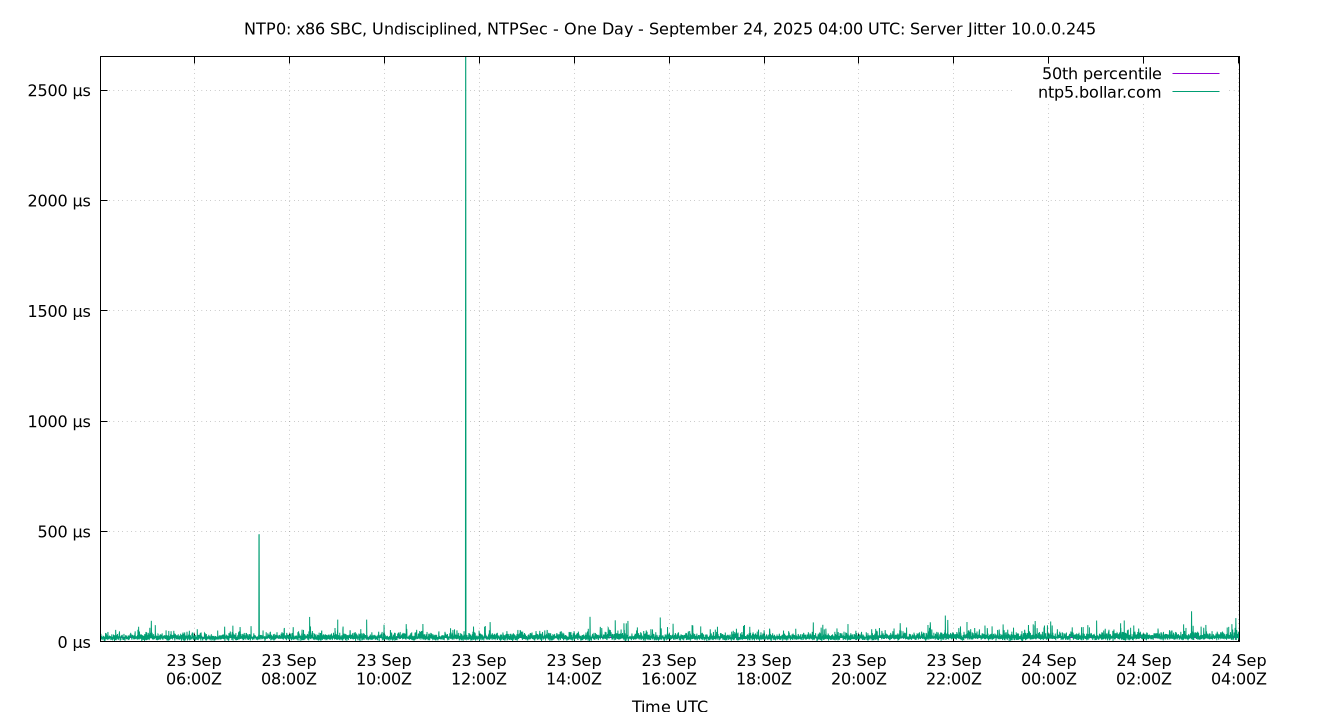

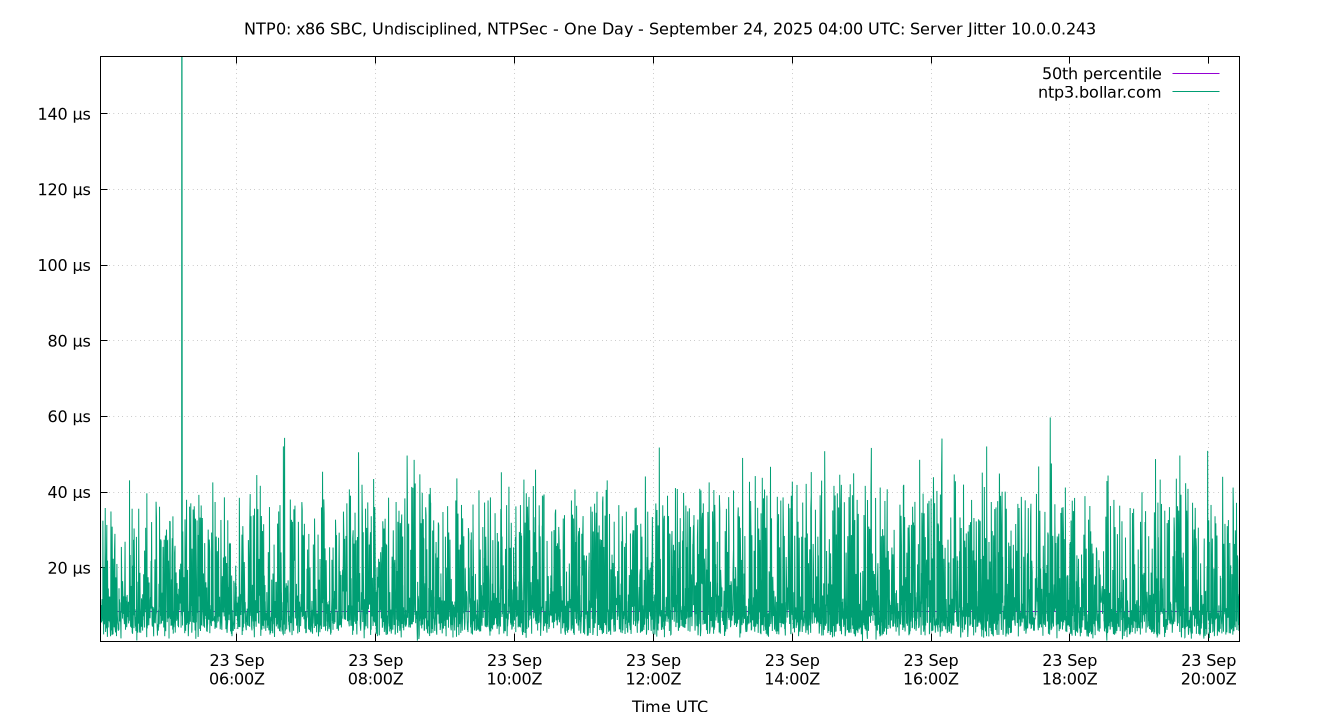

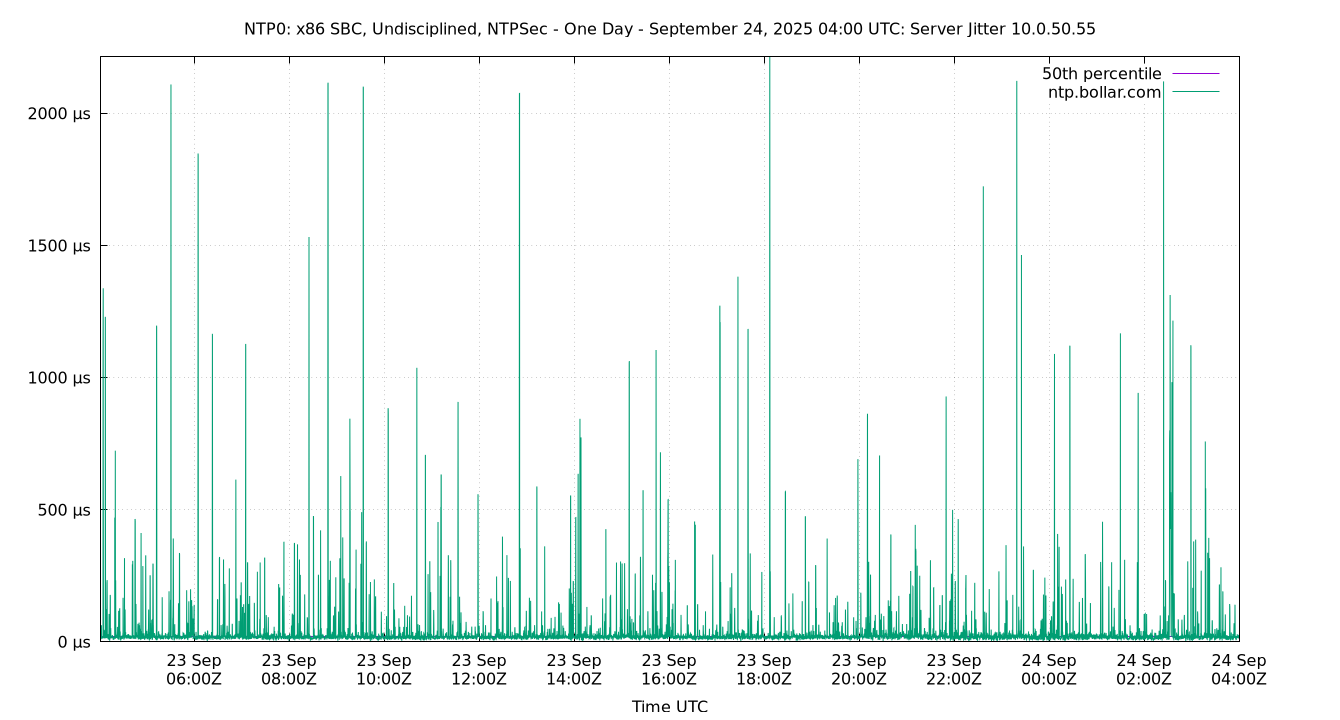

Server Jitter 10.0.50.10

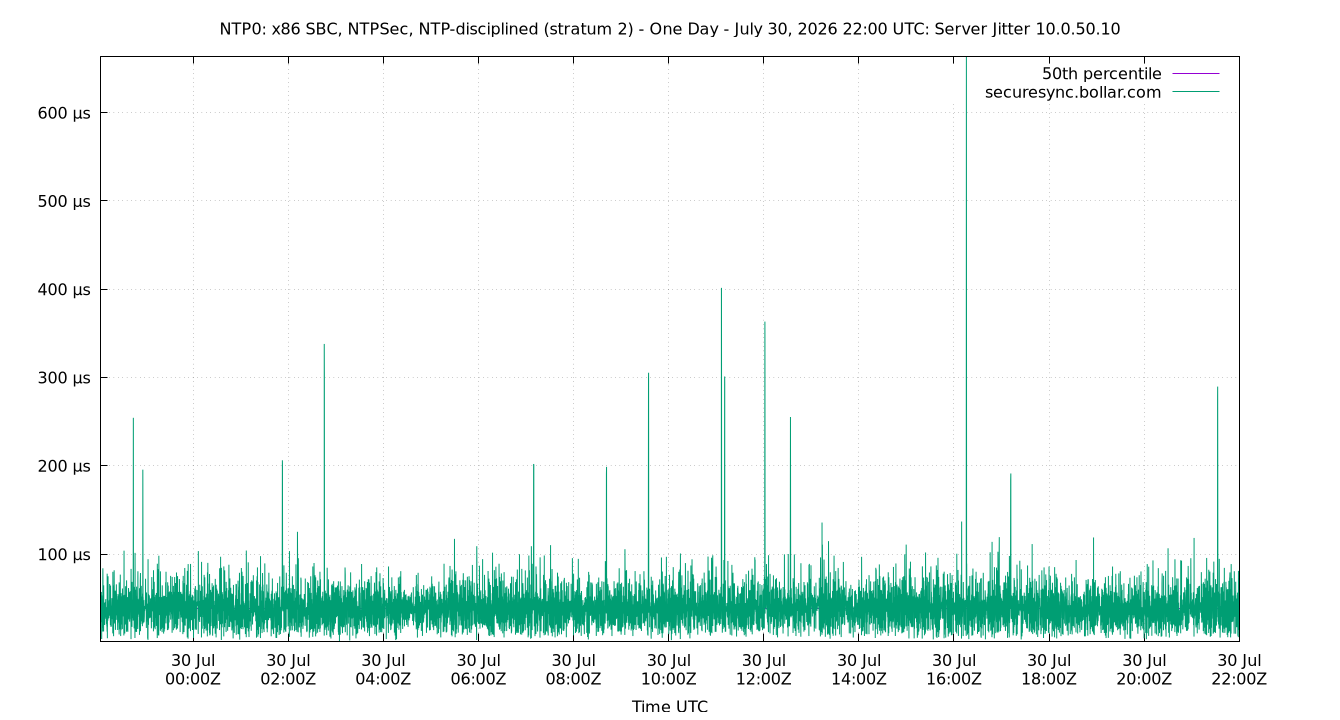

peer jitter 10.0.50.10 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.10 1.304 6.530 12.489 37.974 69.489 93.857 663.740 57.000 87.327 22.801 39.568 µs 6.409 108.7

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.100

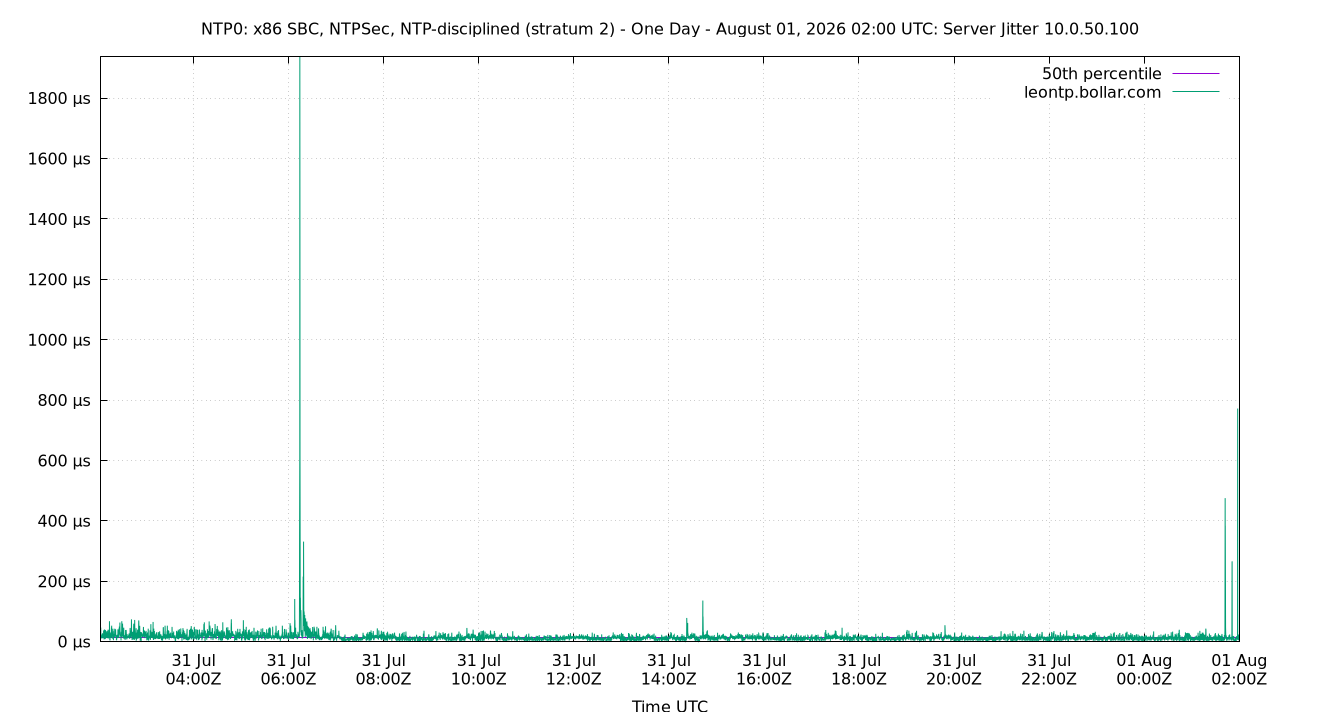

peer jitter 10.0.50.100 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.100 1.646 3.935 7.069 18.725 40.618 57.243 442.400 33.549 53.308 13.248 20.879 µs 10.76 303.3

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.20

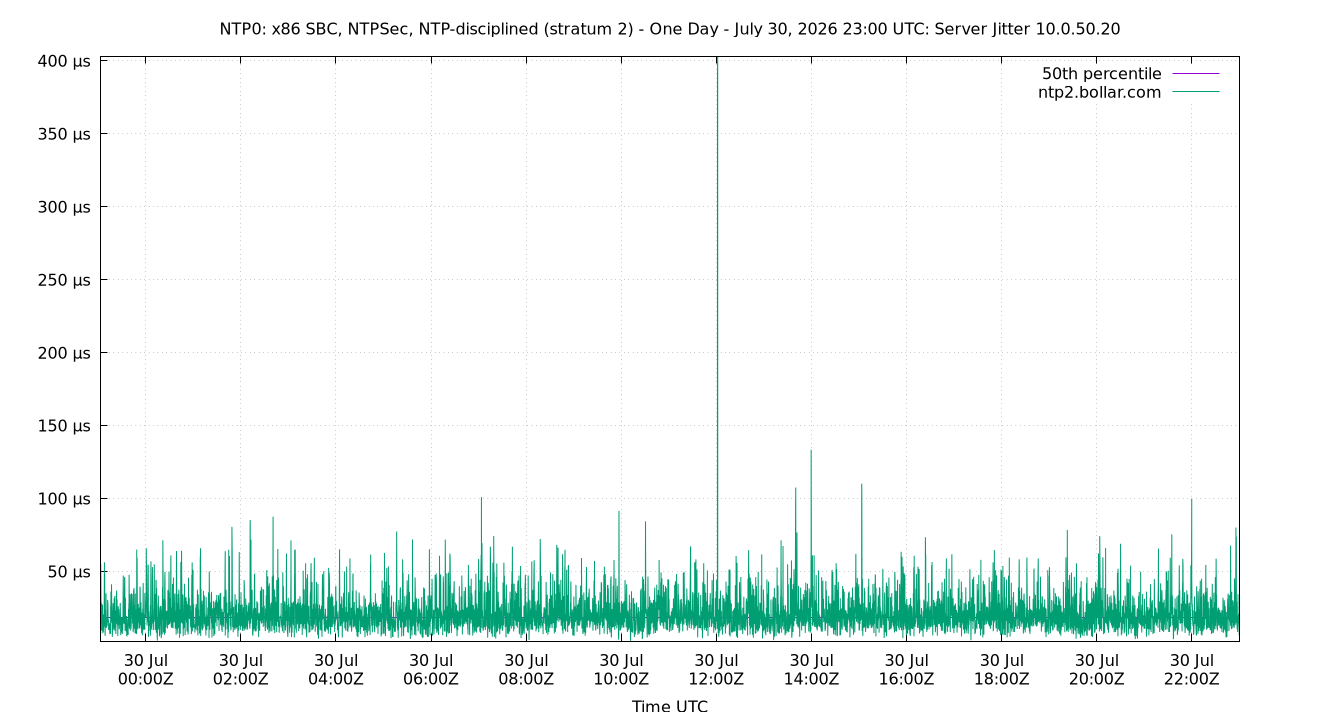

peer jitter 10.0.50.20 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.20 2.218 5.398 8.241 18.441 44.753 61.807 403.021 36.512 56.409 13.822 21.432 µs 8.979 215.5

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.30

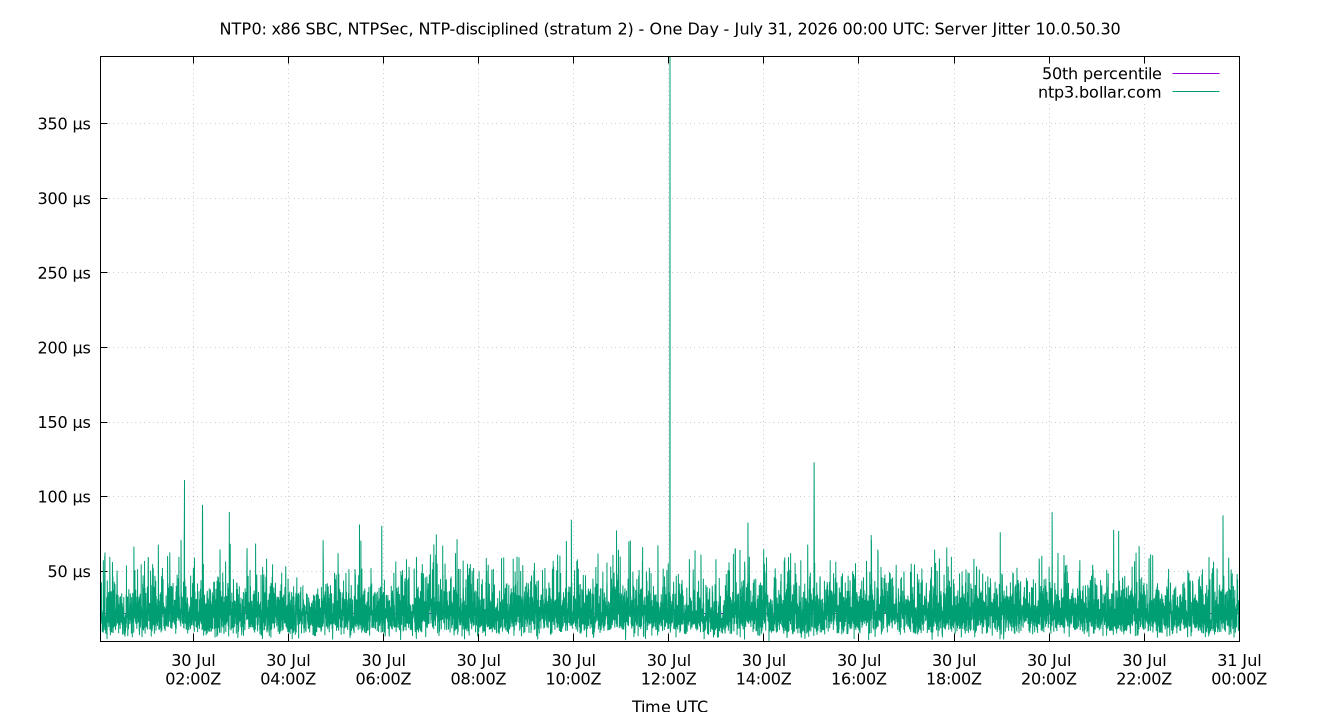

peer jitter 10.0.50.30 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.30 2.660 6.847 10.019 21.850 43.614 58.922 395.015 33.595 52.075 11.508 23.597 µs 4.917 121.2

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.40

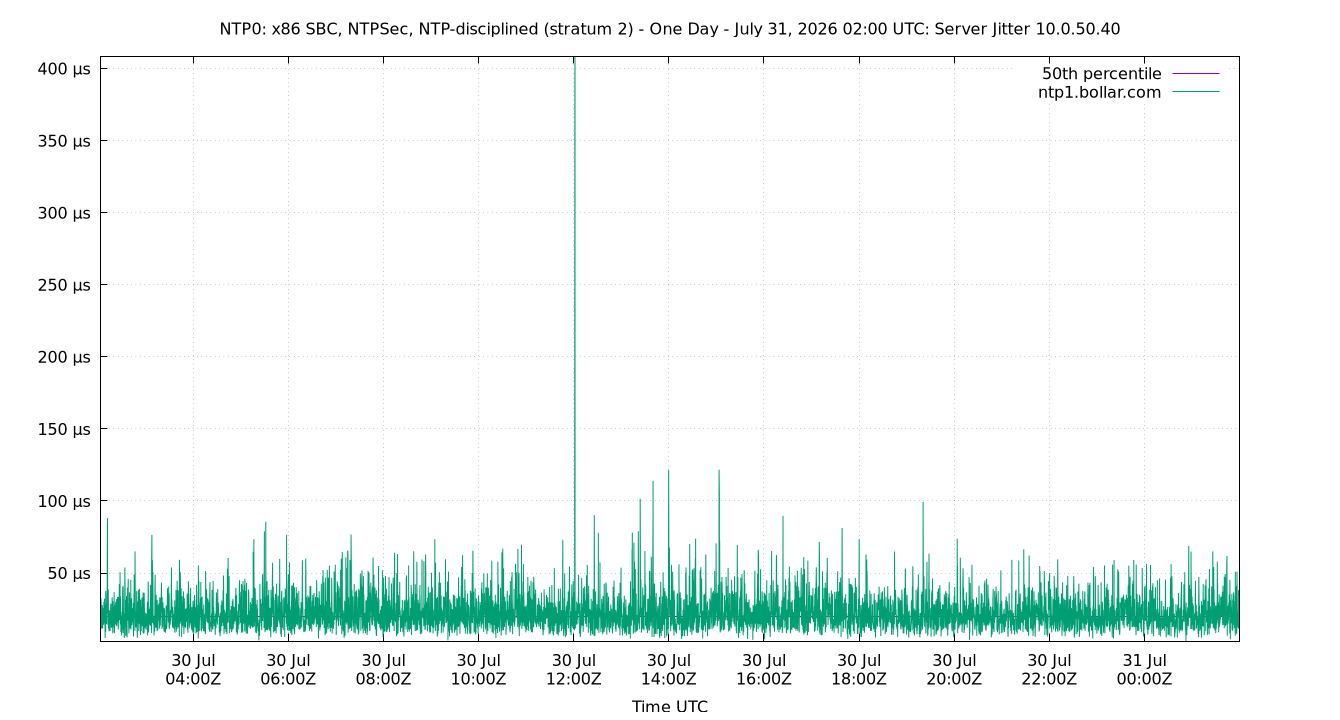

peer jitter 10.0.50.40 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.40 1.759 6.352 8.919 20.150 44.141 62.906 408.464 35.222 56.554 13.380 22.594 µs 7.56 179.7

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.50

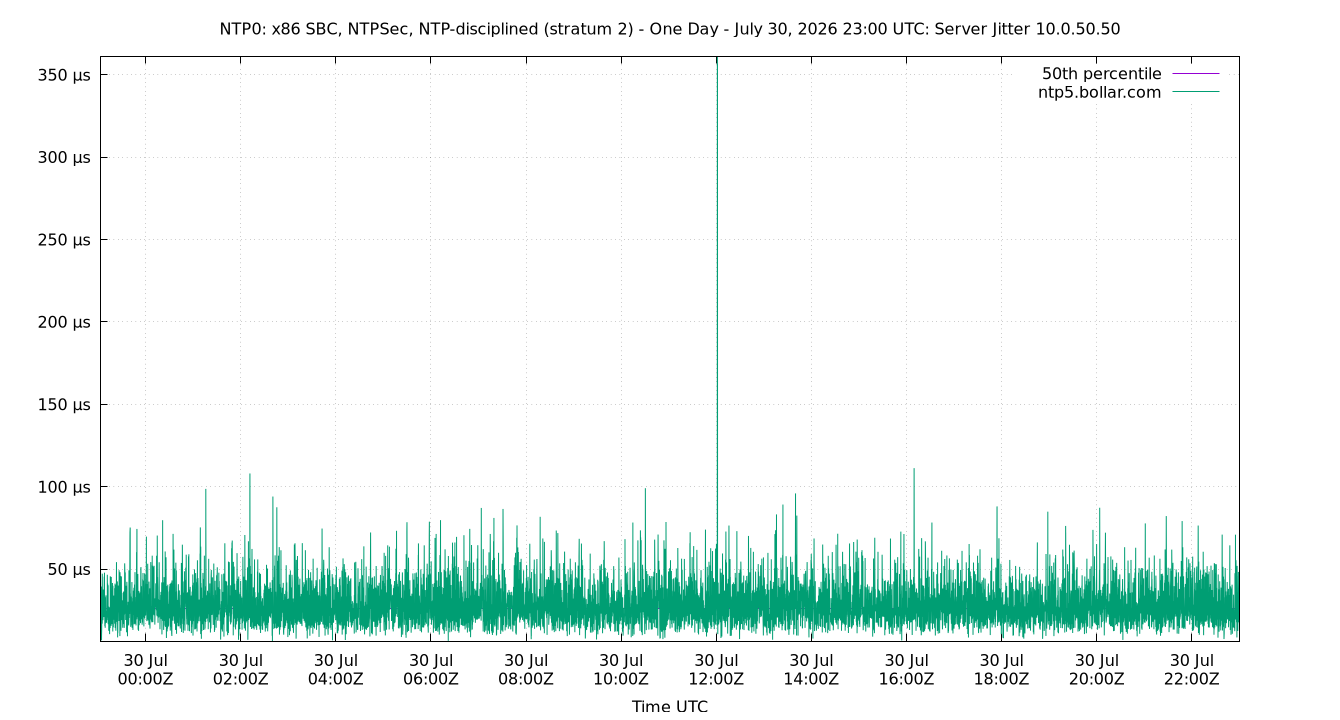

peer jitter 10.0.50.50 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.50 5.446 9.906 13.457 26.041 50.191 66.839 361.094 36.734 56.933 13.092 28.310 µs 5.754 124

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -4.680 -3.242 -2.575 -1.317 -0.429 0.127 4.703 2.146 3.369 0.679 -1.388 ppm -0.2792 5.537
Local Clock Time Offset -87.565 -55.506 -39.436 1.479 43.804 64.518 153.003 83.240 120.024 24.649 1.328 µs 0.209 3.817
Local RMS Frequency Jitter 0.214 0.279 0.342 0.546 0.845 1.018 1.453 0.503 0.739 0.158 0.563 ppm 0.7801 4.169
Local RMS Time Jitter 13.106 17.468 20.719 32.674 47.928 58.255 84.561 27.209 40.787 8.505 33.376 µs 0.7268 4.469
Server Jitter 10.0.50.10 1.304 6.530 12.489 37.974 69.489 93.857 663.740 57.000 87.327 22.801 39.568 µs 6.409 108.7
Server Jitter 10.0.50.100 1.646 3.935 7.069 18.725 40.618 57.243 442.400 33.549 53.308 13.248 20.879 µs 10.76 303.3
Server Jitter 10.0.50.20 2.218 5.398 8.241 18.441 44.753 61.807 403.021 36.512 56.409 13.822 21.432 µs 8.979 215.5
Server Jitter 10.0.50.30 2.660 6.847 10.019 21.850 43.614 58.922 395.015 33.595 52.075 11.508 23.597 µs 4.917 121.2
Server Jitter 10.0.50.40 1.759 6.352 8.919 20.150 44.141 62.906 408.464 35.222 56.554 13.380 22.594 µs 7.56 179.7
Server Jitter 10.0.50.50 5.446 9.906 13.457 26.041 50.191 66.839 361.094 36.734 56.933 13.092 28.310 µs 5.754 124
Server Offset 10.0.50.10 -87.566 -55.507 -39.437 1.480 43.805 64.519 153.004 83.242 120.026 24.650 1.328 µs 0.209 3.817
Server Offset 10.0.50.100 -310.154 -254.945 -10.224 48.246 88.149 111.573 197.494 98.373 366.518 45.542 42.423 µs -4.332 30.49
Server Offset 10.0.50.20 -347.796 -306.332 -54.682 3.865 40.743 63.047 118.489 95.425 369.379 45.498 -3.169 µs -4.473 31.23
Server Offset 10.0.50.30 -318.225 -273.742 -26.165 31.674 68.426 91.084 178.808 94.591 364.826 44.521 25.044 µs -4.474 31.86
Server Offset 10.0.50.40 -340.530 -303.231 -49.830 9.436 46.545 70.420 145.658 96.375 373.651 47.034 1.859 µs -4.428 29.98
Server Offset 10.0.50.50 -306.122 -244.532 0.817 60.554 99.713 123.246 215.111 98.896 367.778 45.435 54.137 µs -4.249 30.15
Temp ZONE0 48.000 48.000 50.000 58.000 58.000 58.000 58.000 8.000 10.000 2.398 56.810 °C
Temp ZONE1 48.000 49.000 50.000 58.000 59.000 59.000 60.000 9.000 10.000 2.466 57.275 °C
Summary as CSV file

Our production NTP servers share the same mast-mounted Tallysman Accutenna® TW3972 Triple Band GNSS Antenna + L-band Correction Services antenna using a Tallysman TW164 1-to-4 Port Smart Power GNSS Signal Splitter. No external NTP servers are contacted and all servers, with the exception of NTP6, the LeoNTP 1200, poll each other. Internal NTP clients poll NTP4 or NTP6.

The LeoNTP 1200 is a black-box appliance that doesn't support timing reporting. Its status can be checked by viwing the Server Jitter & Offset from any of the other servers. It can be found at NTP7 or leontp.bollar.com (10.0.50.100). The LeoNTP link above will take you to the Server Jitter between the LeoNTP and the currently selected server.

NTPQ Stats

NTPQ Statistics are not not available for this NTP server.'

GNSS Performance

GNSS Performance is not available for this NTP server.'

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.

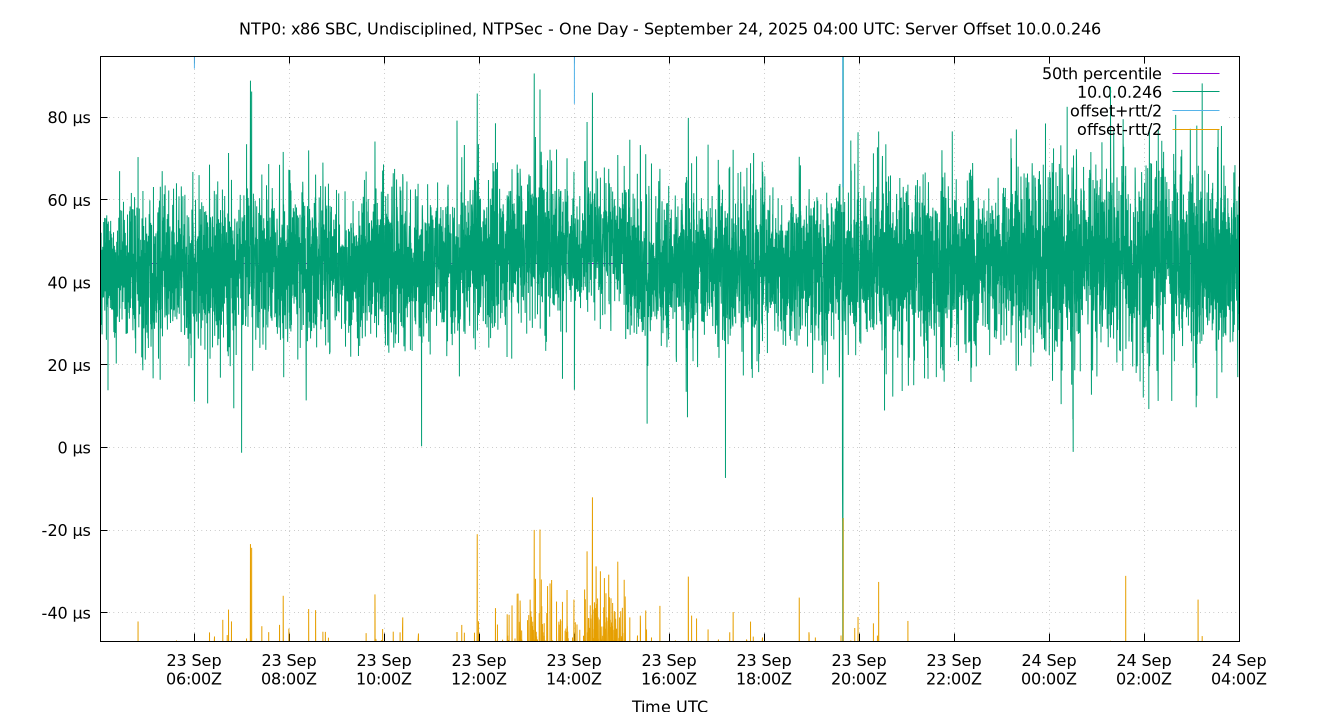

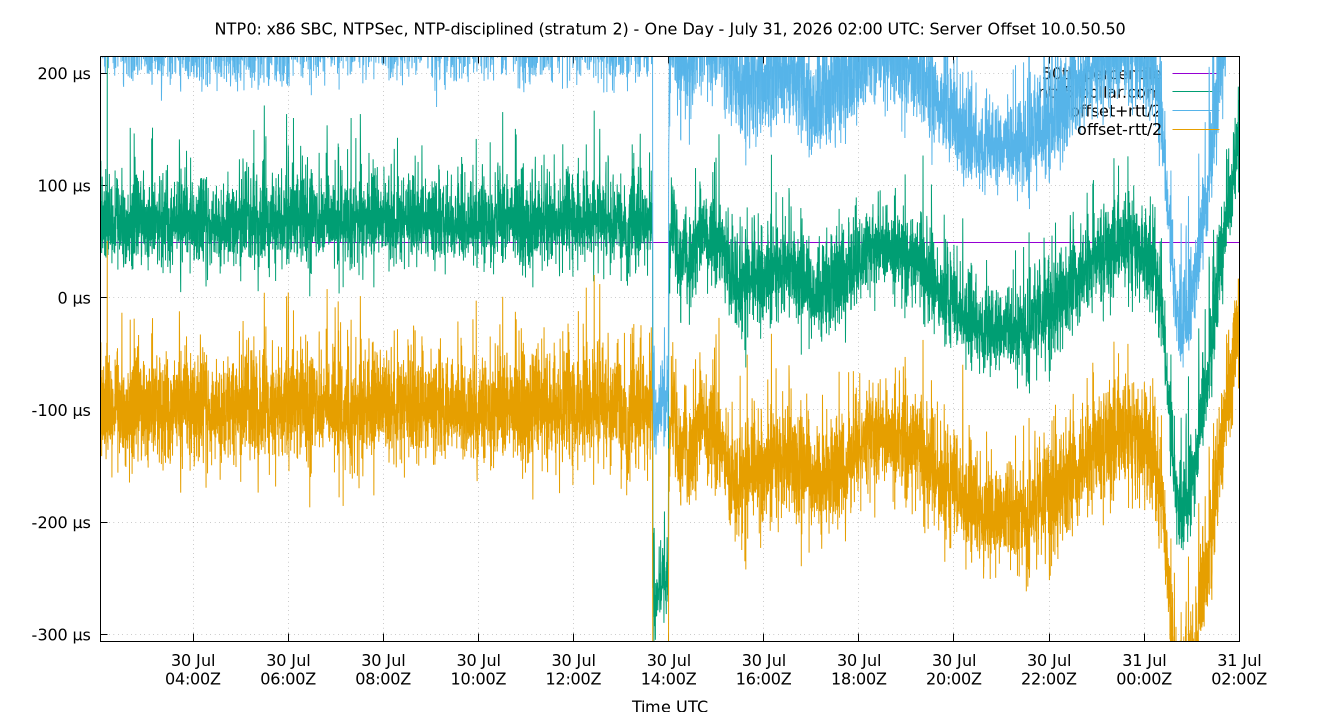

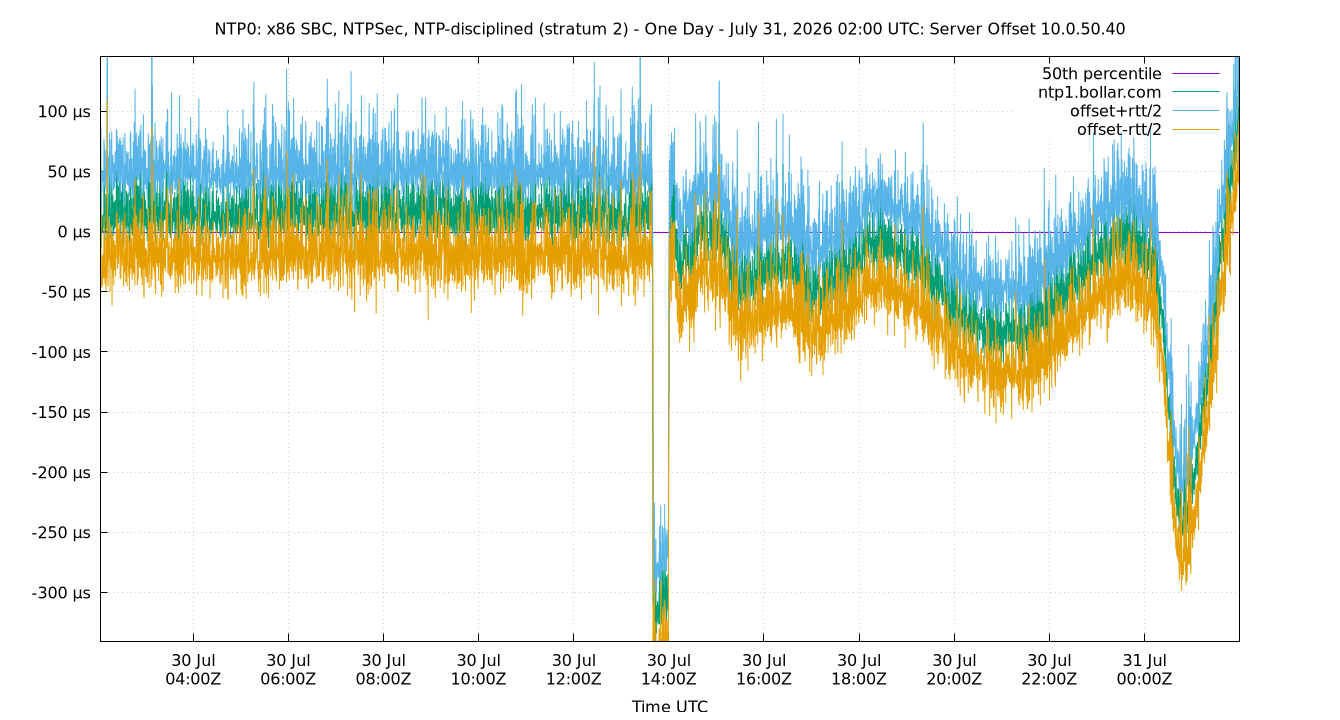

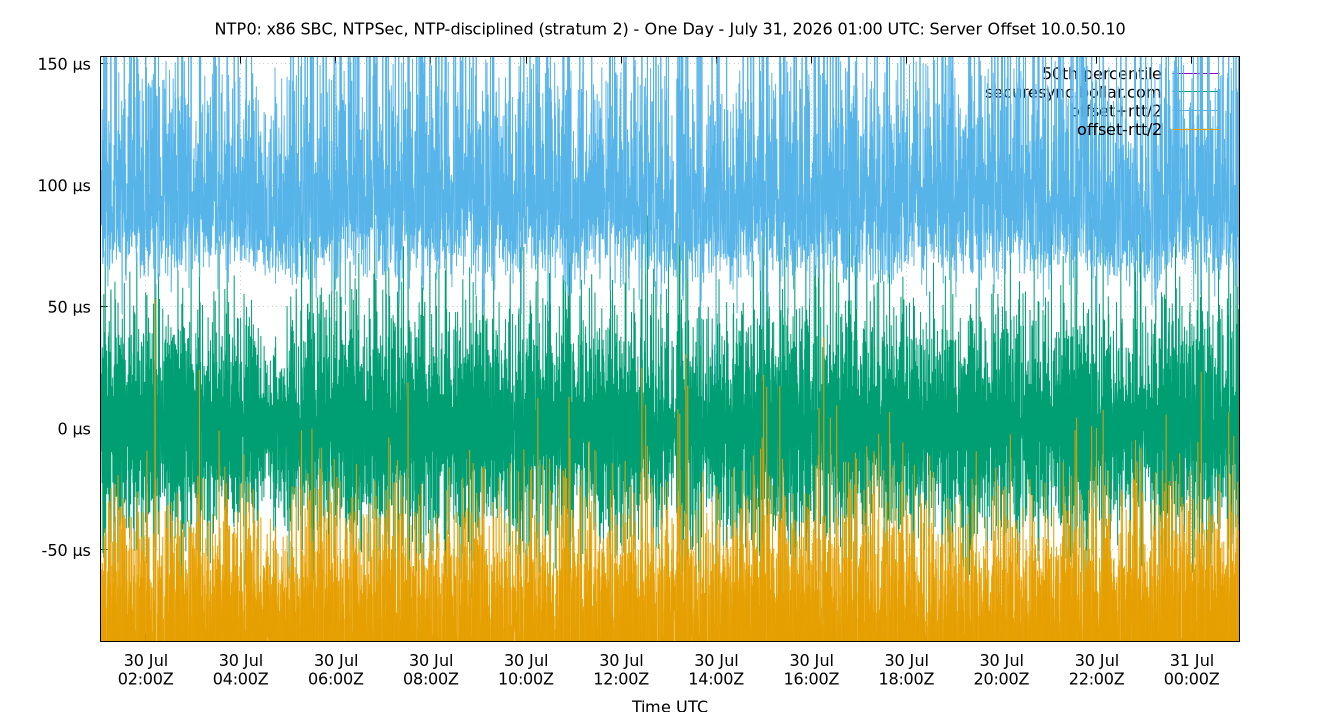

time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
Skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the FIsher-Pearson moment of skewness. There are other different ways to calculate Skewness Wikipedia describes Skewness best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
Kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses standard Kurtosis. There are other different ways to calculate Kurtosis.
A normal distribution has a Kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
