NTPsec

NTP2: CM4, Bollar ZED-F9T, NTPSec
Twelve Hour - September 14, 2026 05:00 UTC

Report generated: Mon Sep 14 05:02:05 2026 UTC
Start Time: Sun Sep 13 17:02:05 2026 UTC
End Time: Mon Sep 14 05:02:05 2026 UTC
Report Period: 0.5 days

Return to It's About Time

Section Time Frame NTP Server
Local Clock Time/Frequency Offsets One Hour NTP0: x86 SBC, NTPSec, NTP-disciplined (stratum 2)
Local RMS Time Jitter Three Hour NTP1: RPi4B, Uputronics M8, NTPSec
Local RMS Frequency Jitter Six Hour NTP2: CM4, Bollar ZED-F9T, NTPSec
Local Clock Time Offset Histogram Twelve Hour NTP3: CM5, TimeHat LEA-M8T, NTPSec
Local Temperatures One Day NTP4: SecureSync, Rubidium, NTP (Classic)
Local Frequency/Temp Two Day NTP5: RPi3B+, Uputronics MAX-M8Q, NTPSec
Local GPS Three Day NTP6: CM4, TimeBeat OTC Mini, PTP
Server Offsets Seven Day NTP7: LeoNTP, Standalone GNSS, Firmware
Server Jitters Fourteen Day (Updated Daily)
Summary One Month (Updated Daily)
NTPQ Stats
GNSS Performance

NTP2 runs on an RPi Compute Module 4 with a custom HAT running a u-blox ZED-F9T multi-frequency module. It tracks all constellations and its position is surveyed.

If graphs don't match report time above, force refresh the browser. The images have been cached.


Local Clock Time/Frequency Offsets

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -14.737 -2.903 -1.906 0.052 1.637 2.416 11.931 3.543 5.319 1.021 0.005 µs -0.566 7.803
Local Clock Frequency Offset -12.126 -11.612 -11.566 -11.508 -11.094 -11.074 -11.034 0.472 0.538 0.148 -11.446 ppm 1.345 3.98

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

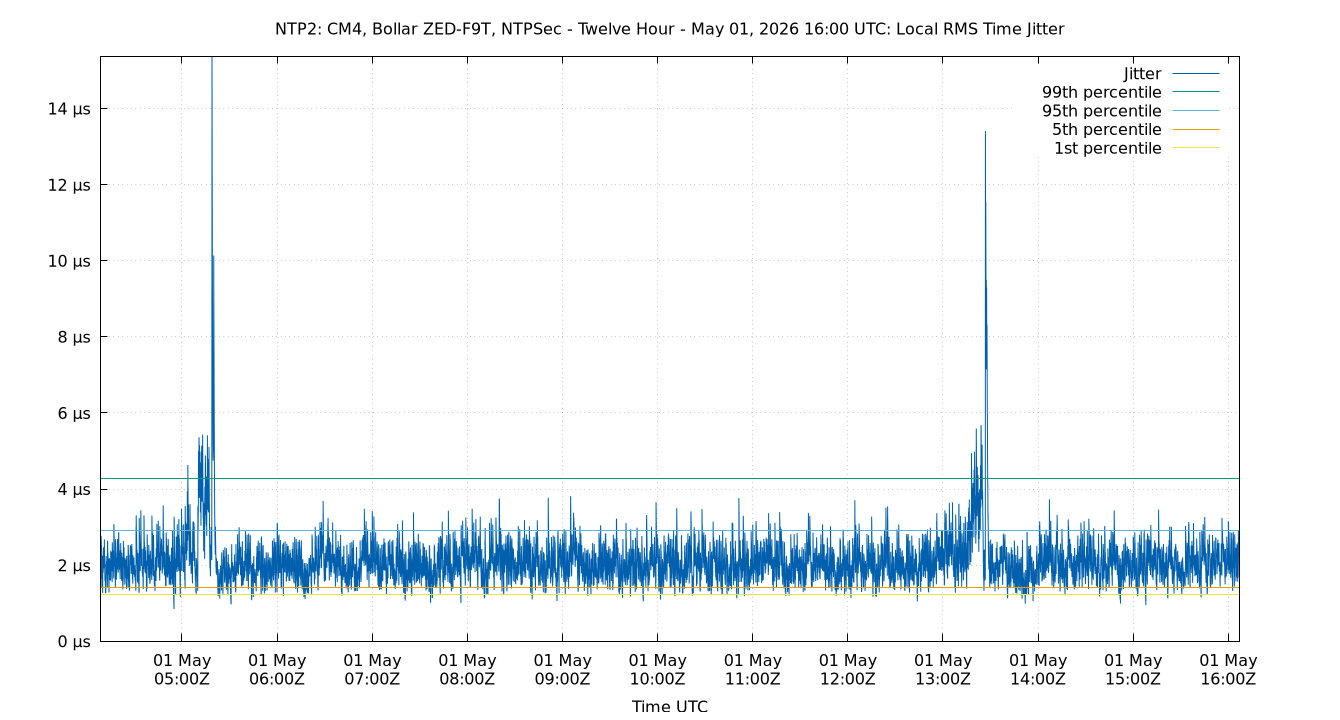

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 0.001 0.598 0.690 1.053 1.621 1.868 12.533 0.931 1.270 0.372 1.101 µs 8.614 201

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

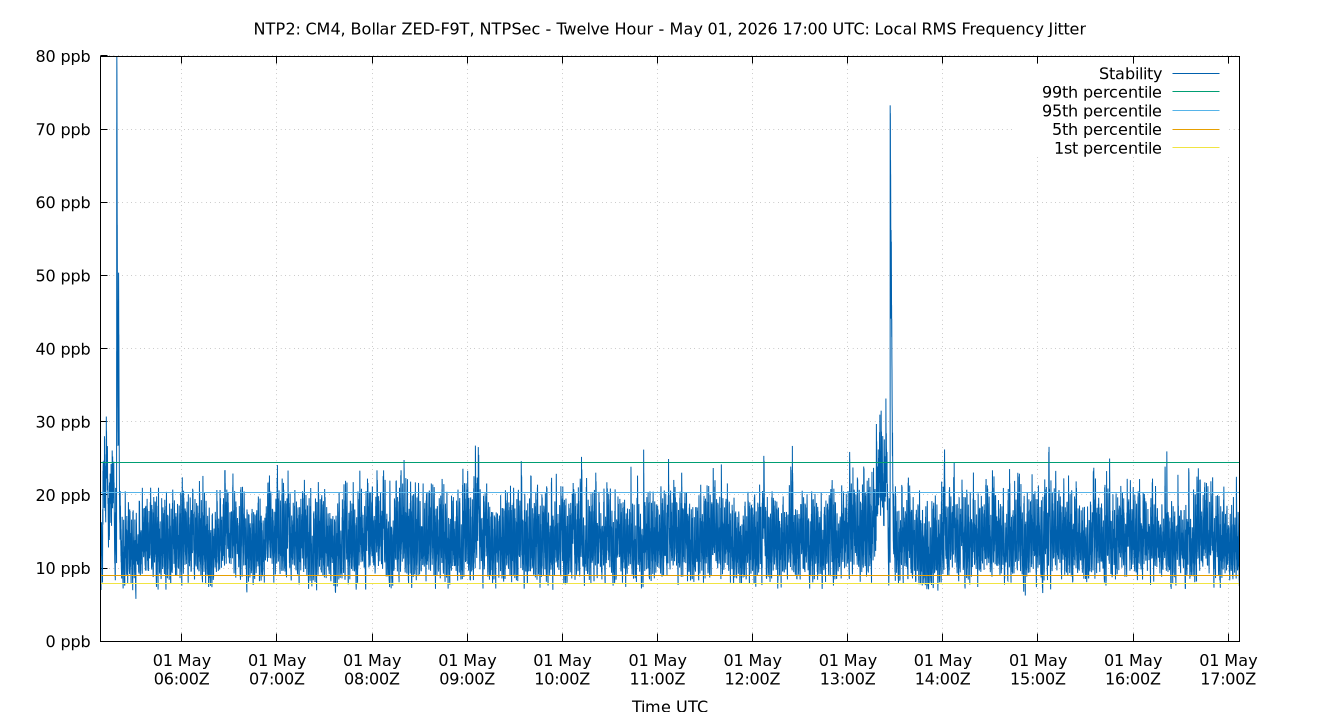

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 0.000 3.919 4.543 7.247 11.580 13.259 165.960 7.037 9.340 4.109 7.692 ppb 19.99 630.9

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.

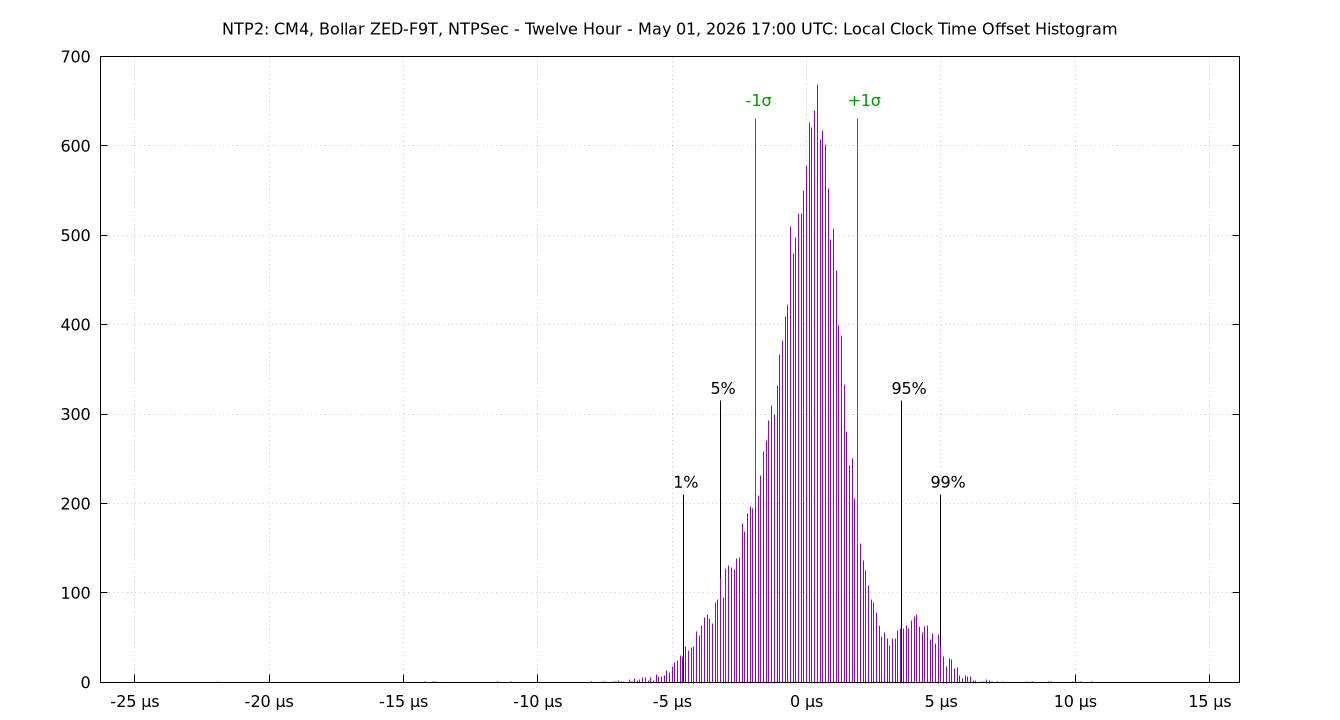

Local Clock Time Offset Histogram

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -14.737 -2.903 -1.906 0.052 1.637 2.416 11.931 3.543 5.319 1.021 0.005 µs -0.566 7.803

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Local Temperatures

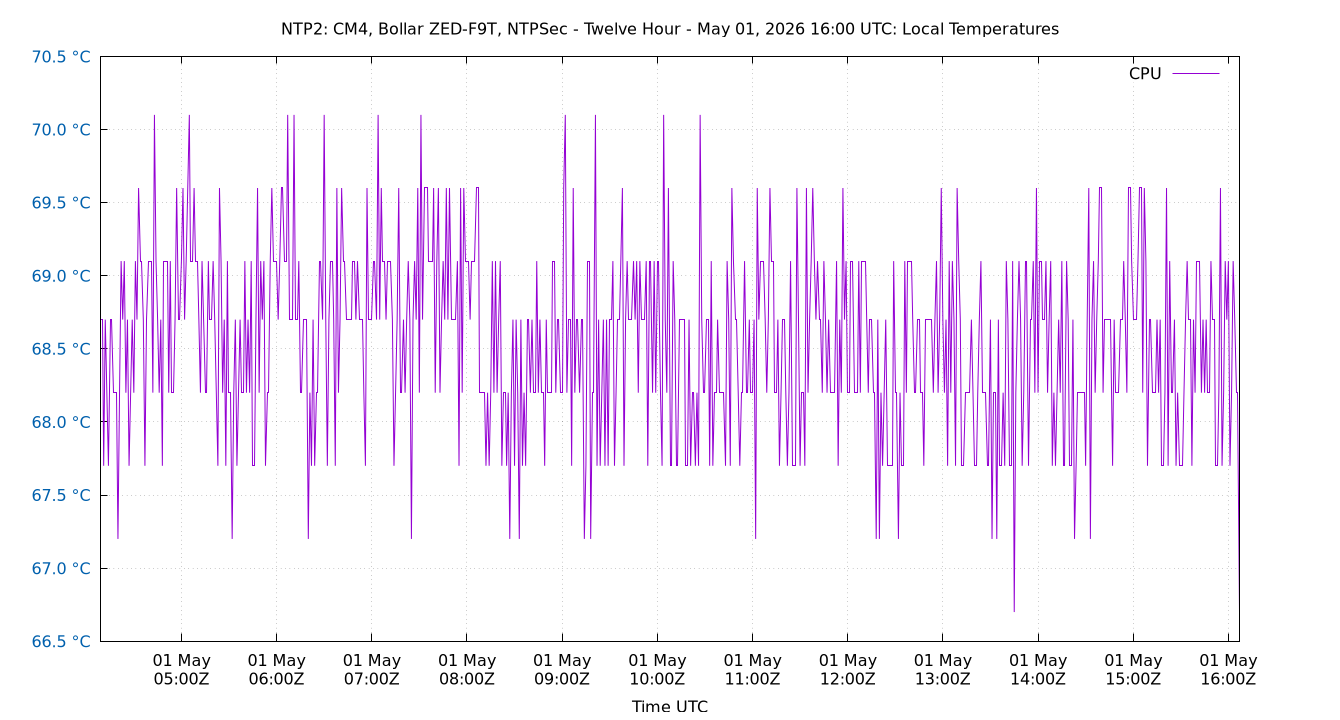

local temps plot

Local temperatures. These will be site-specific depending upon what temperature sensors you collect data from. Temperature changes affect the local clock crystal frequency and stability. The math of how temperature changes frequency is complex, and also depends on crystal aging. So there is no easy way to correct for it in software. This is the single most important component of frequency drift.

The Local Temperatures are from field 3 from the tempstats log file.



Local Frequency/Temp

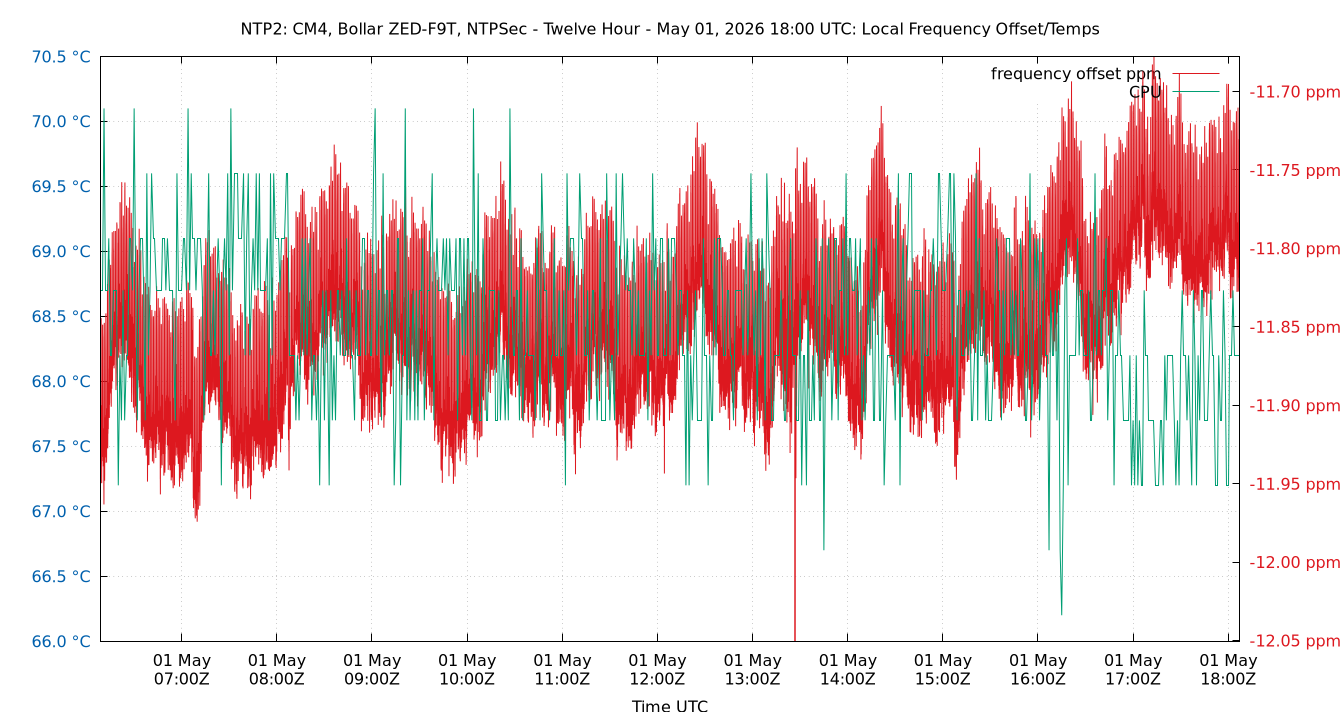

local freq temps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset -12.126 -11.612 -11.566 -11.508 -11.094 -11.074 -11.034 0.472 0.538 0.148 -11.446 ppm 1.345 3.98
Temp CPU 59.900 60.400 61.800 68.200 69.100 69.600 70.100 7.300 9.200 2.104 67.339 °C

The frequency offsets and temperatures. Showing frequency offset (red, in parts per million, scale on right) and the temperatures.

These are field 4 (frequency) from the loopstats log file, and field 3 from the tempstats log file.

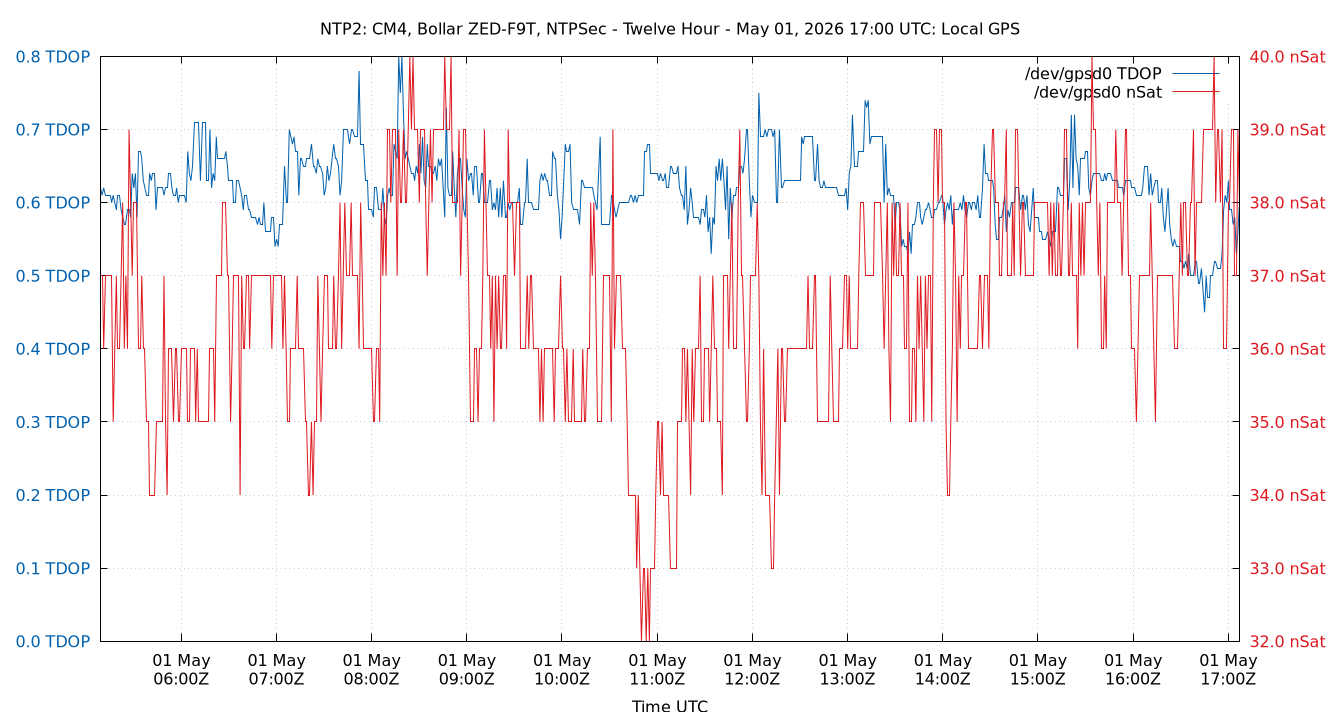

Local GPS

local gps plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
nSats 32.000 33.000 34.000 37.000 39.000 41.000 41.000 5.000 8.000 1.639 36.583 nSat 0.1812 2.967
TDOP 0.470 0.500 0.520 0.610 0.710 0.780 0.860 0.190 0.280 0.061 0.615 0.3866 3.112

Local GPS. The Time Dilution of Precision (TDOP) is plotted in blue. The number of visible satellites (nSat) is plotted in red.

TDOP is field 3, and nSats is field 4, from the gpsd log file. The gpsd log file is created by the ntploggps program.

TDOP is a dimensionless error factor. Smaller numbers are better. TDOP ranges from 1 (ideal), 2 to 5 (good), to greater than 20 (poor). Some GNSS receivers report TDOP less than one which is theoretically impossible.



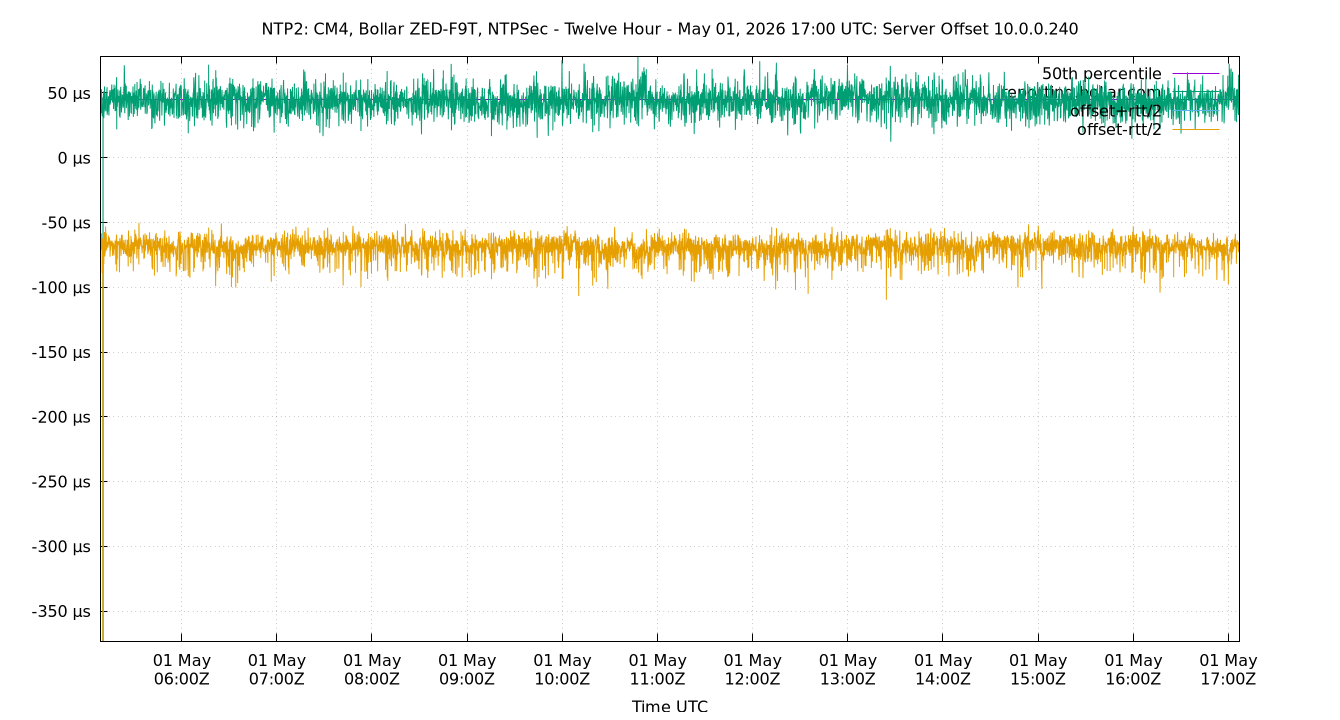

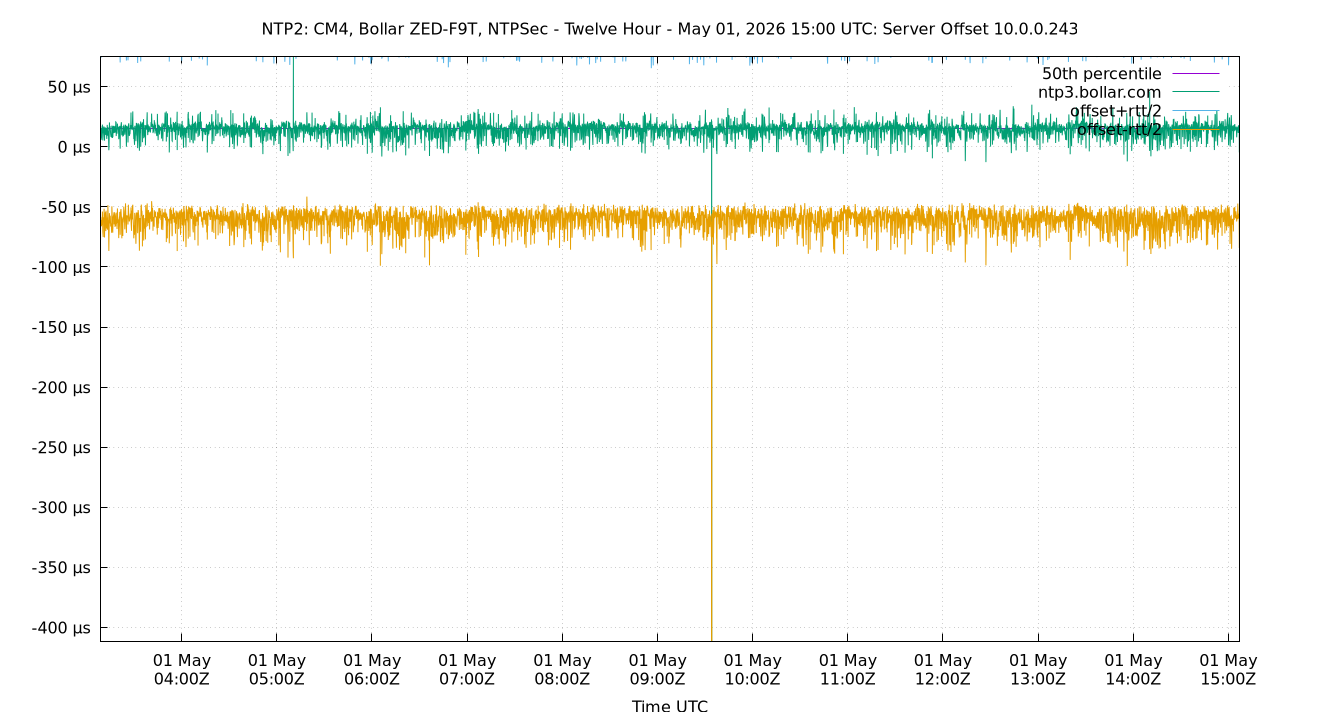

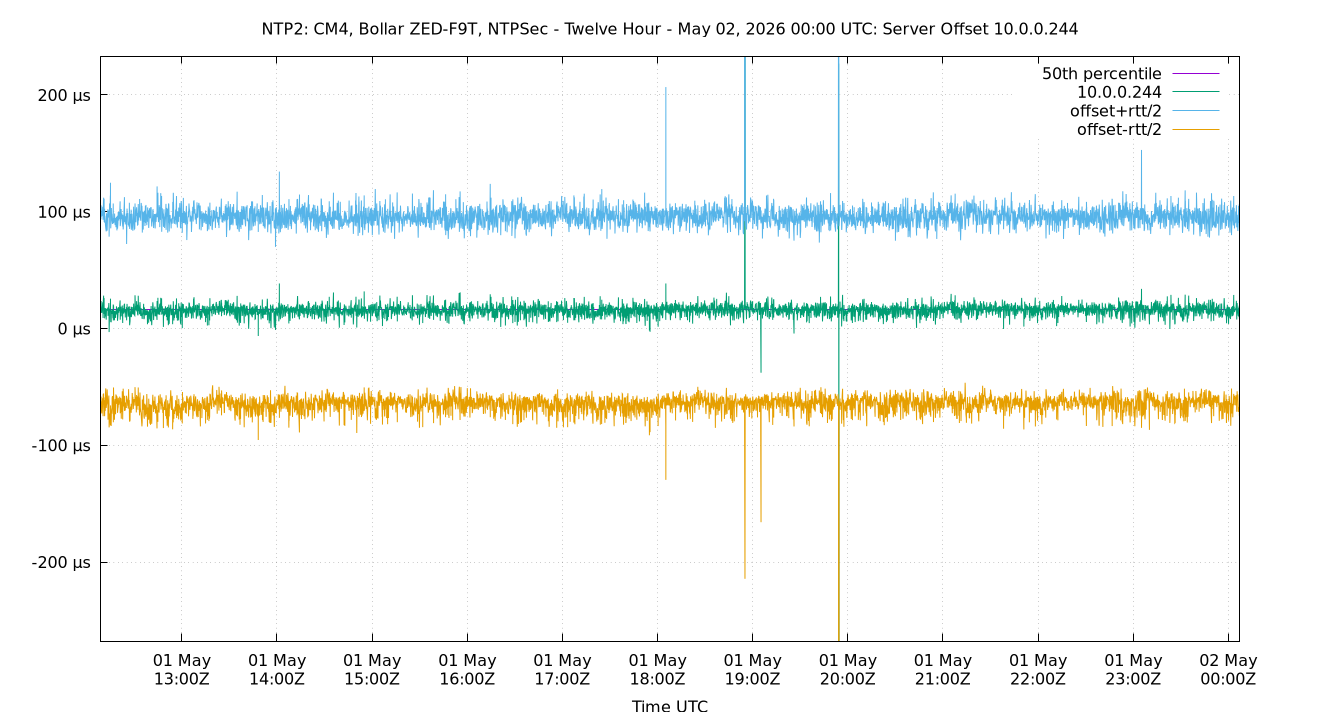

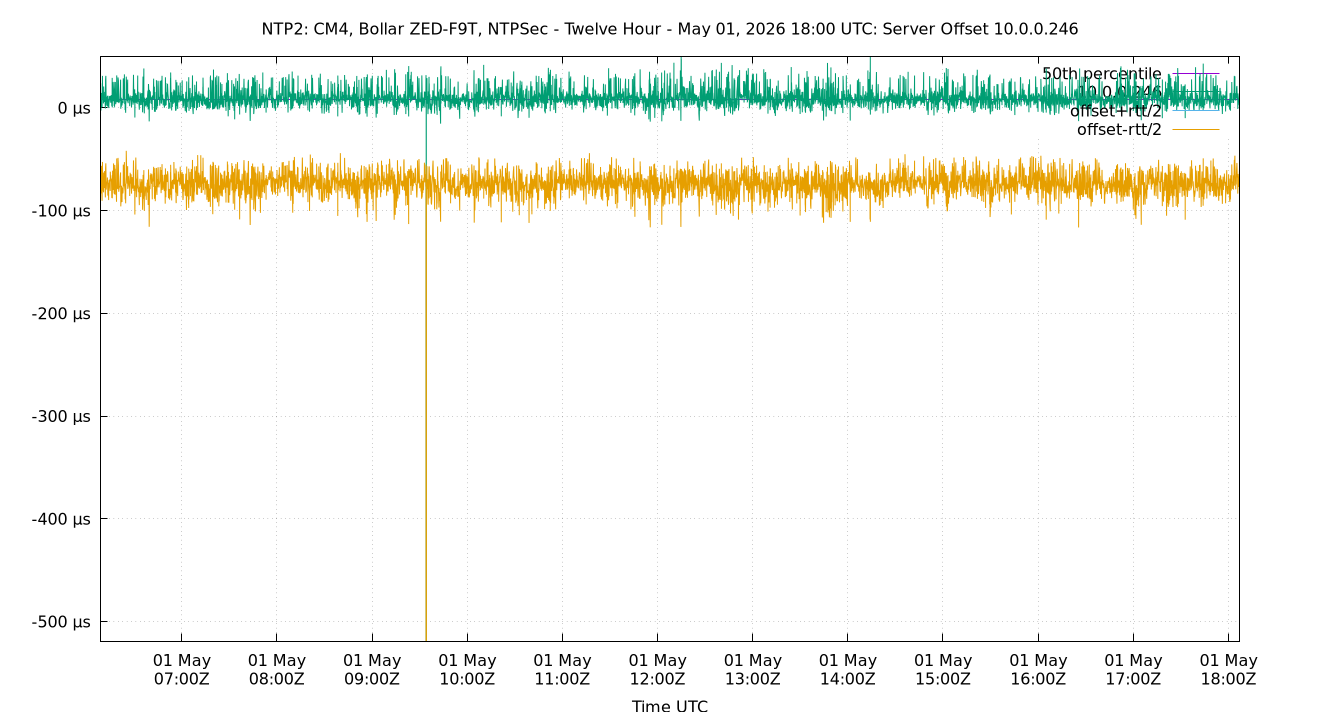

Server Offsets

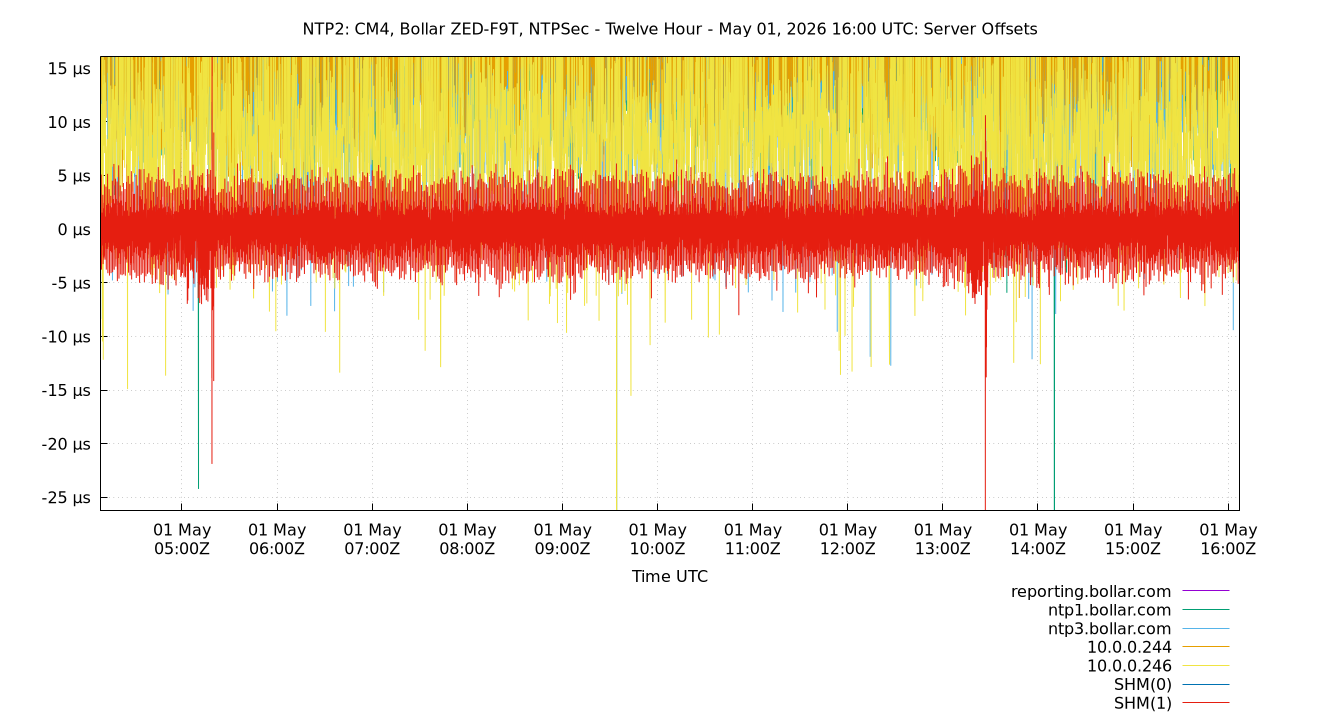

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



Server Offset 10.0.50.10

peer offset 10.0.50.10 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.10 -30.343 -23.000 -19.823 -10.154 0.190 4.084 10.830 20.013 27.084 5.652 -10.197 µs 0.0936 3.492

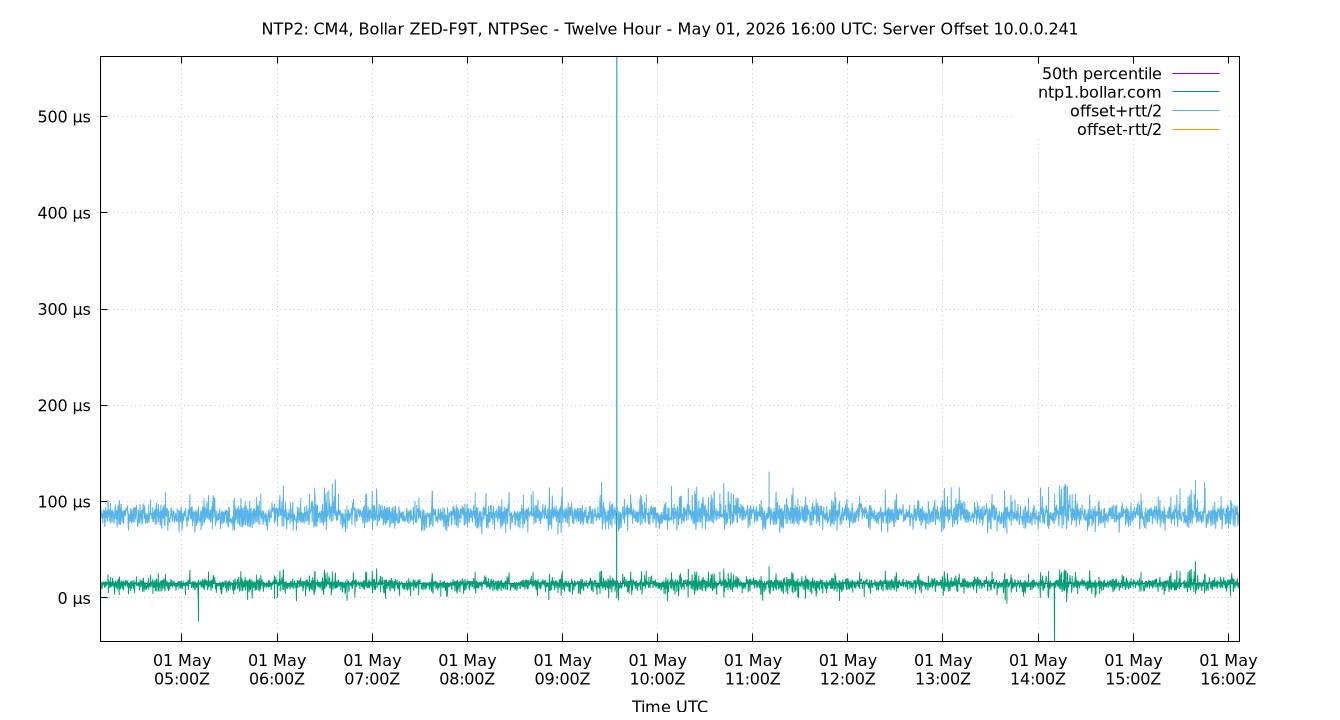

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

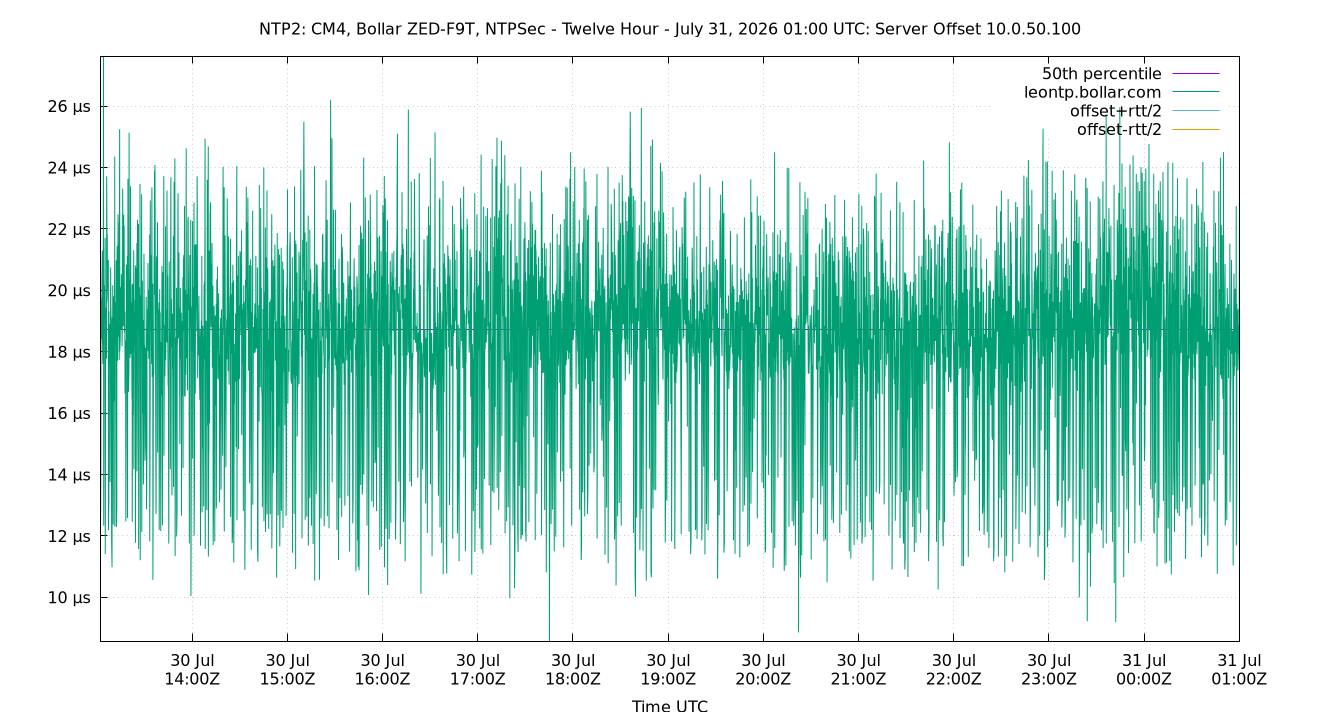

Server Offset 10.0.50.100

peer offset 10.0.50.100 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.100 -12.696 4.516 5.688 9.391 11.274 11.751 12.682 5.586 7.235 1.989 8.892 µs -2.042 17.6

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

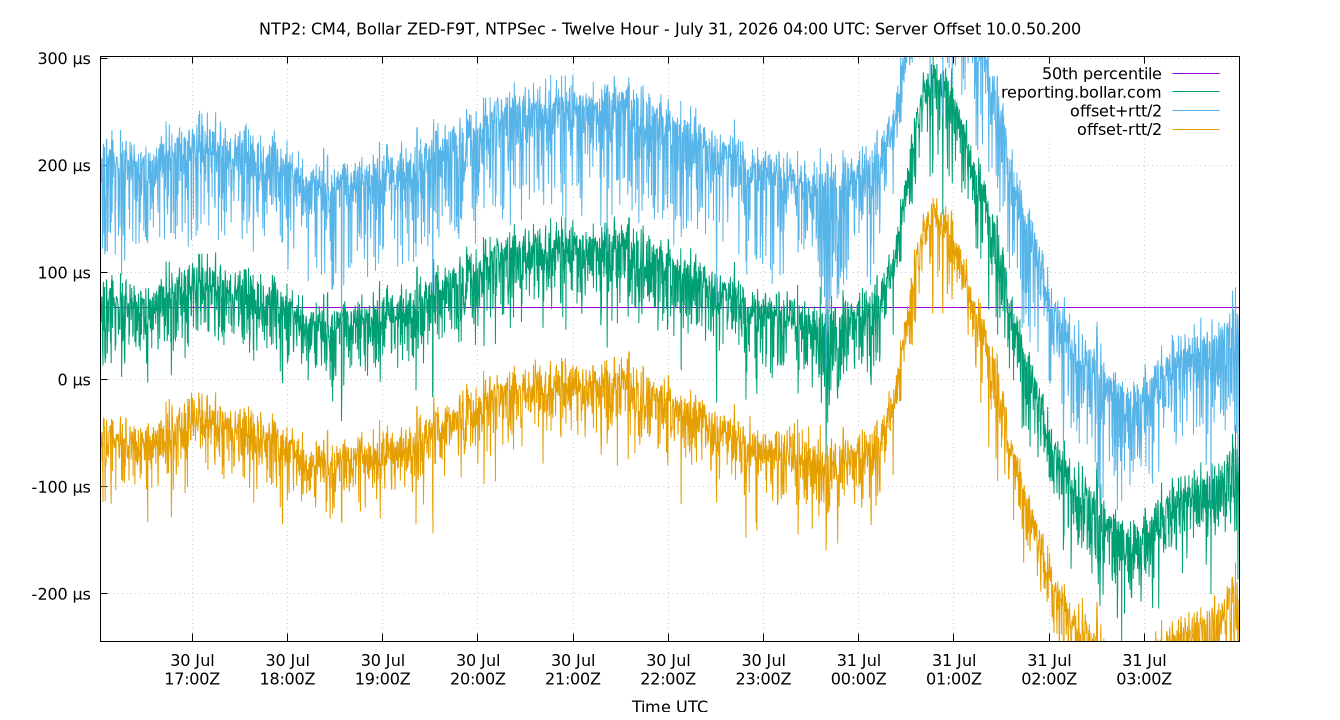

Server Offset 10.0.50.200

peer offset 10.0.50.200 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.200 -123.496 -71.374 -46.336 2.616 30.473 40.851 56.123 76.809 112.225 23.978 -1.122 µs -0.8222 3.957

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

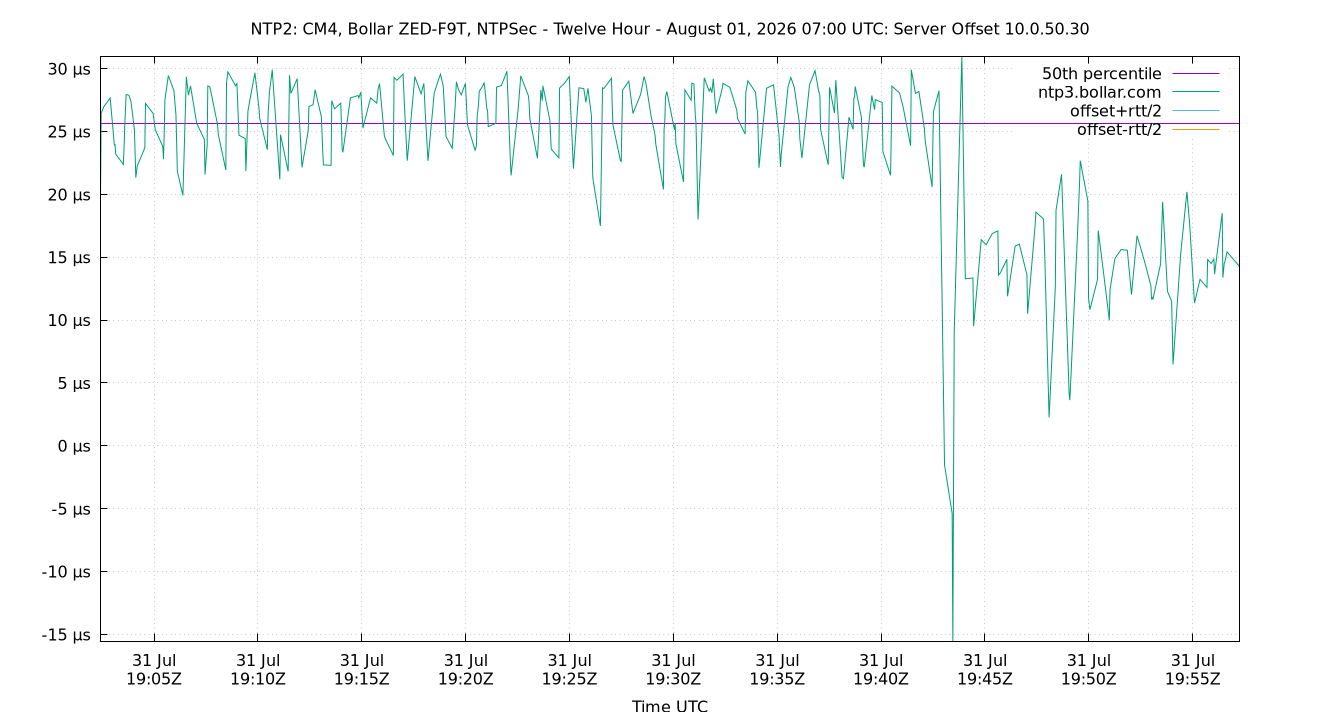

Server Offset 10.0.50.30

peer offset 10.0.50.30 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.30 -6.241 17.744 20.640 26.485 30.062 31.019 33.061 9.422 13.275 3.099 26.023 µs -0.9714 6.215

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

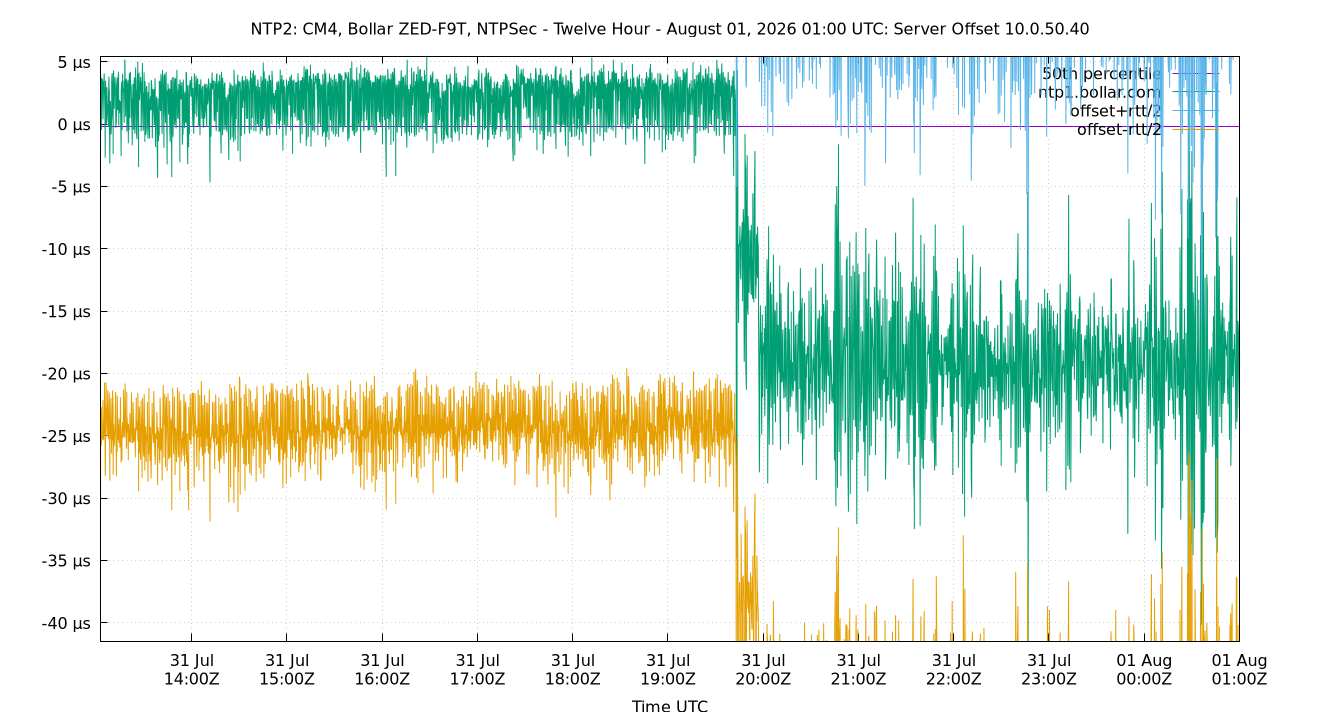

Server Offset 10.0.50.40

peer offset 10.0.50.40 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.40 -20.451 -13.169 -8.840 0.091 4.072 5.031 44.112 12.912 18.200 4.373 -0.760 µs -0.4997 6.395

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

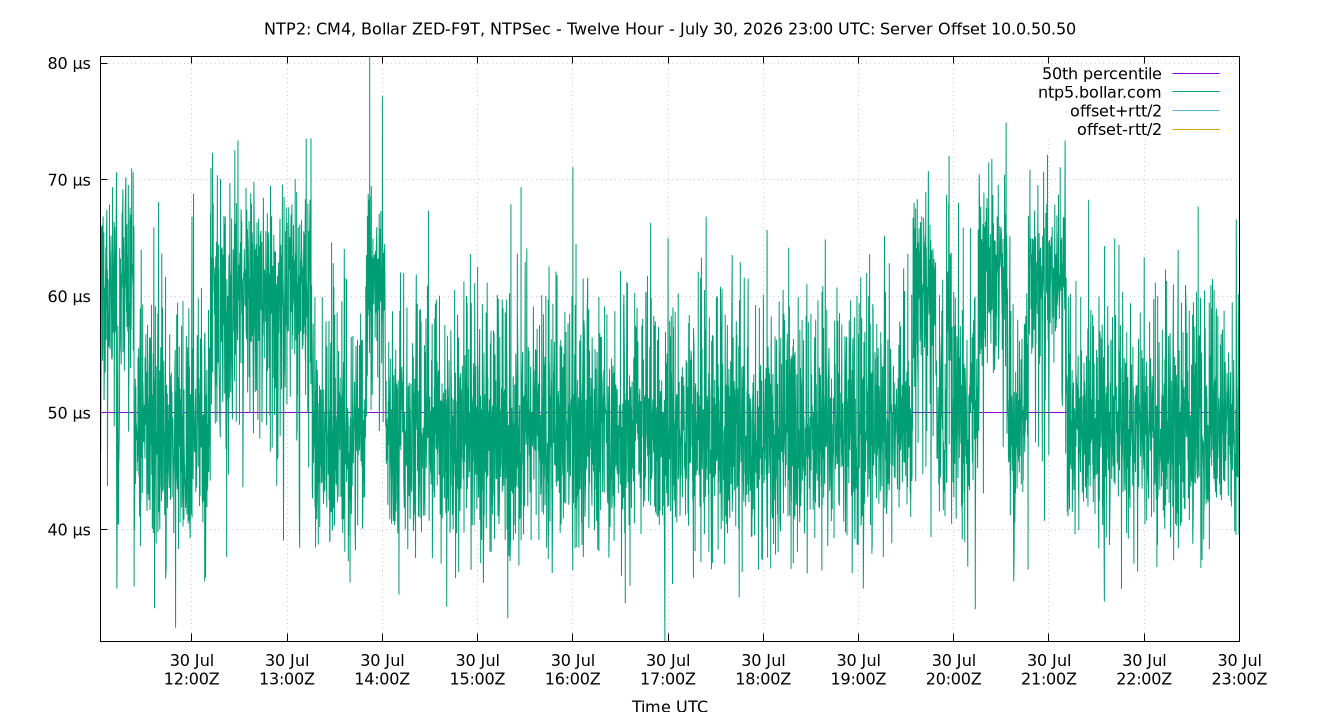

Server Offset 10.0.50.50

peer offset 10.0.50.50 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 10.0.50.50 30.705 37.582 41.541 56.296 69.037 73.564 95.649 27.496 35.982 8.844 55.912 µs -0.04485 2.442

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 2404:e80:8cd6:0:76fe:48ff:fe23:eac3 (2404-e80-8cd6-0-76fe-48ff-fe23-eac3.v6.dyn.launtel.au)

peer offset 2404:e80:8cd6:0:76fe:48ff:fe23:eac3 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2404:e80:8cd6:0:76fe:48ff:fe23:eac3 (2404-e80-8cd6-0-76fe-48ff-fe23-eac3.v6.dyn.launtel.au) -29.039 -15.282 -10.484 5.560 30.150 35.642 42.859 40.634 50.924 12.905 9.018 µs 0.3011 2.256

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

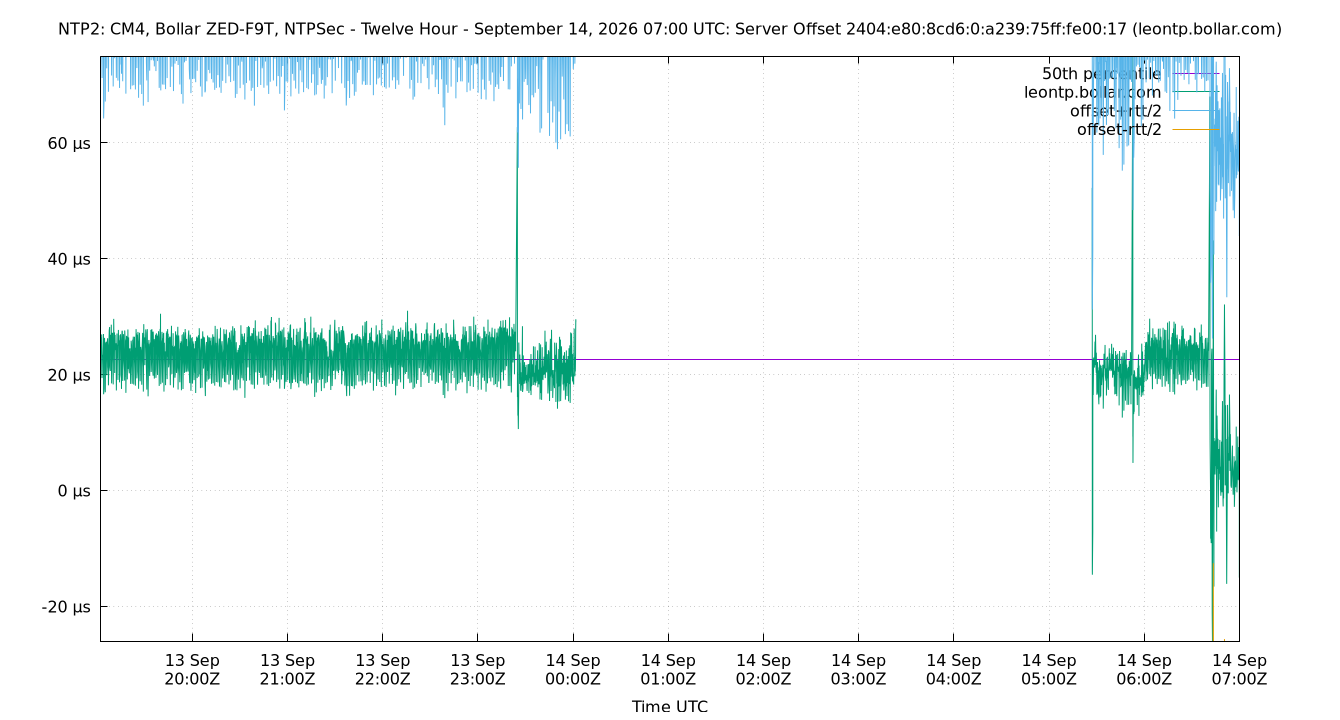

Server Offset 2404:e80:8cd6:0:a239:75ff:fe00:17 (leontp.bollar.com)

peer offset 2404:e80:8cd6:0:a239:75ff:fe00:17 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 2404:e80:8cd6:0:a239:75ff:fe00:17 (leontp.bollar.com) 10.623 16.498 18.116 23.844 27.874 29.271 62.733 9.758 12.773 3.275 23.344 µs 0.3003 8.338

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset SHM(0)

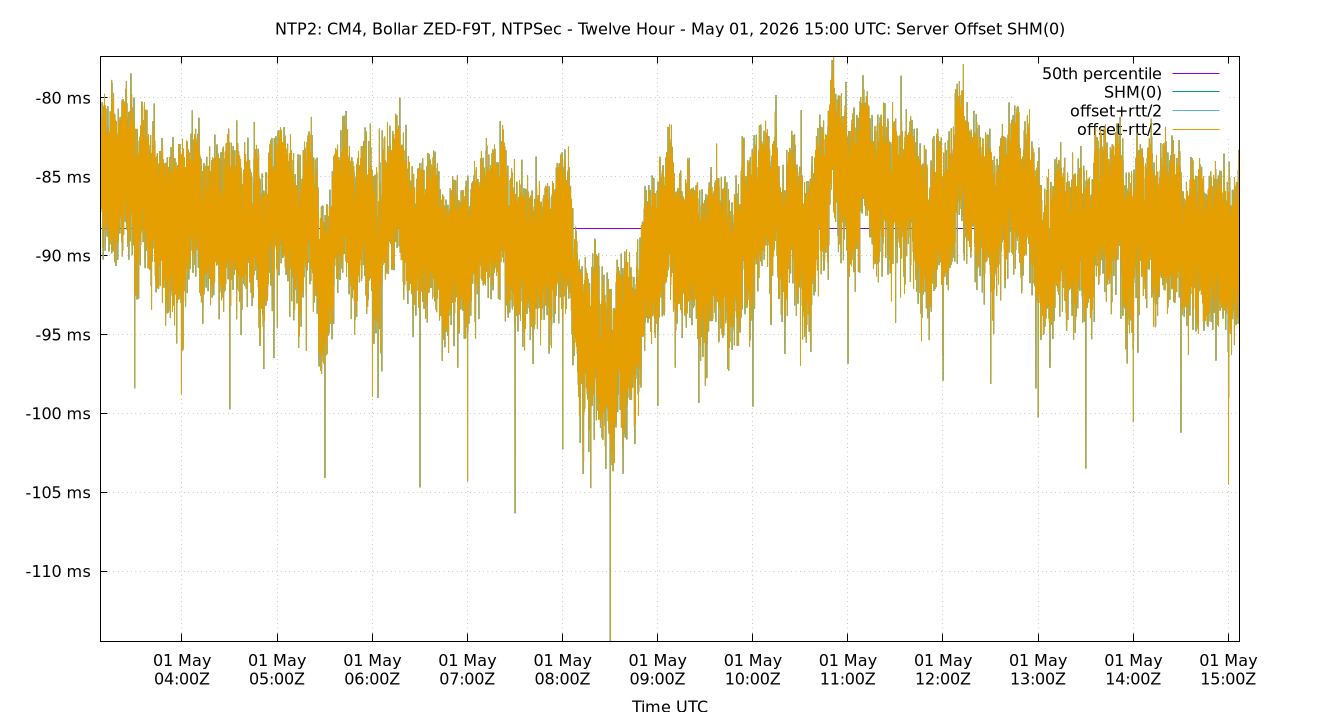

peer offset SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(0) -248.115 -98.951 -95.955 -89.628 -84.147 -82.233 -78.030 11.807 16.718 3.807 -89.784 ms -4.077 152.7

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

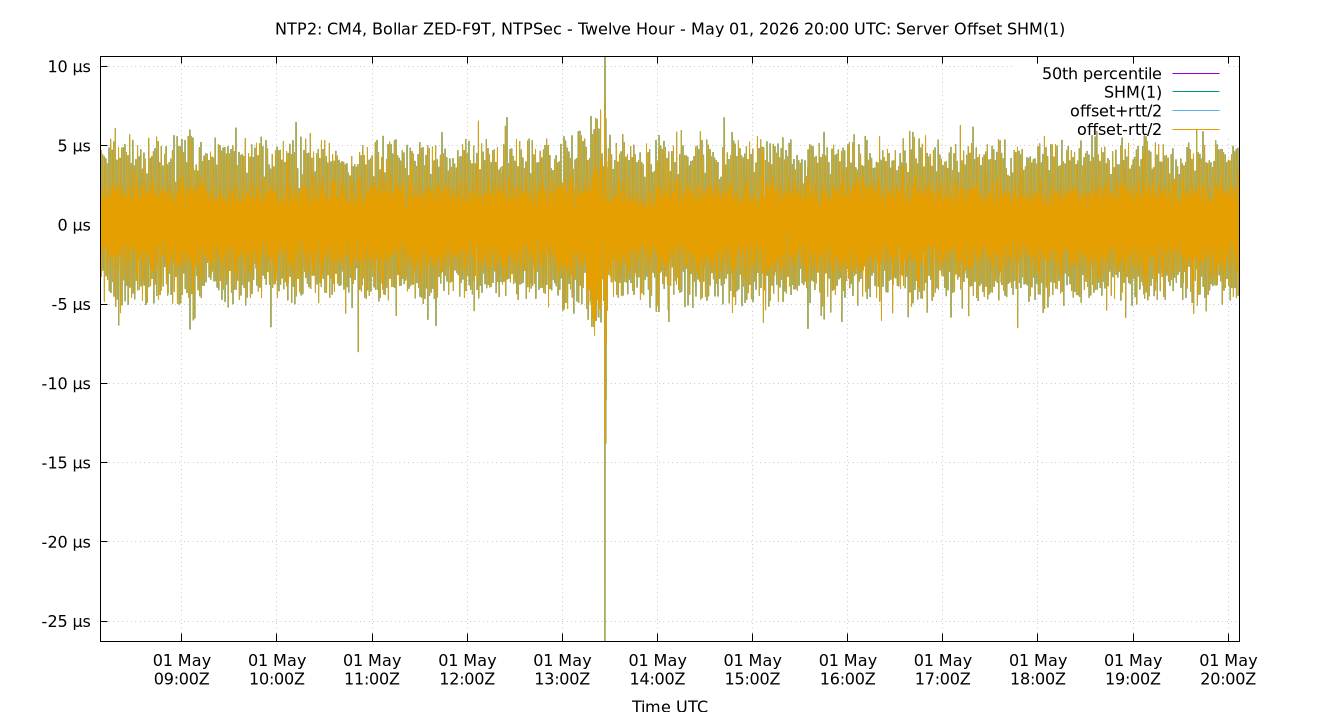

Server Offset SHM(1)

peer offset SHM(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset SHM(1) -9.918 -2.903 -1.906 0.053 1.637 2.412 3.860 3.543 5.315 1.013 0.005 µs -0.5155 5.056

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.

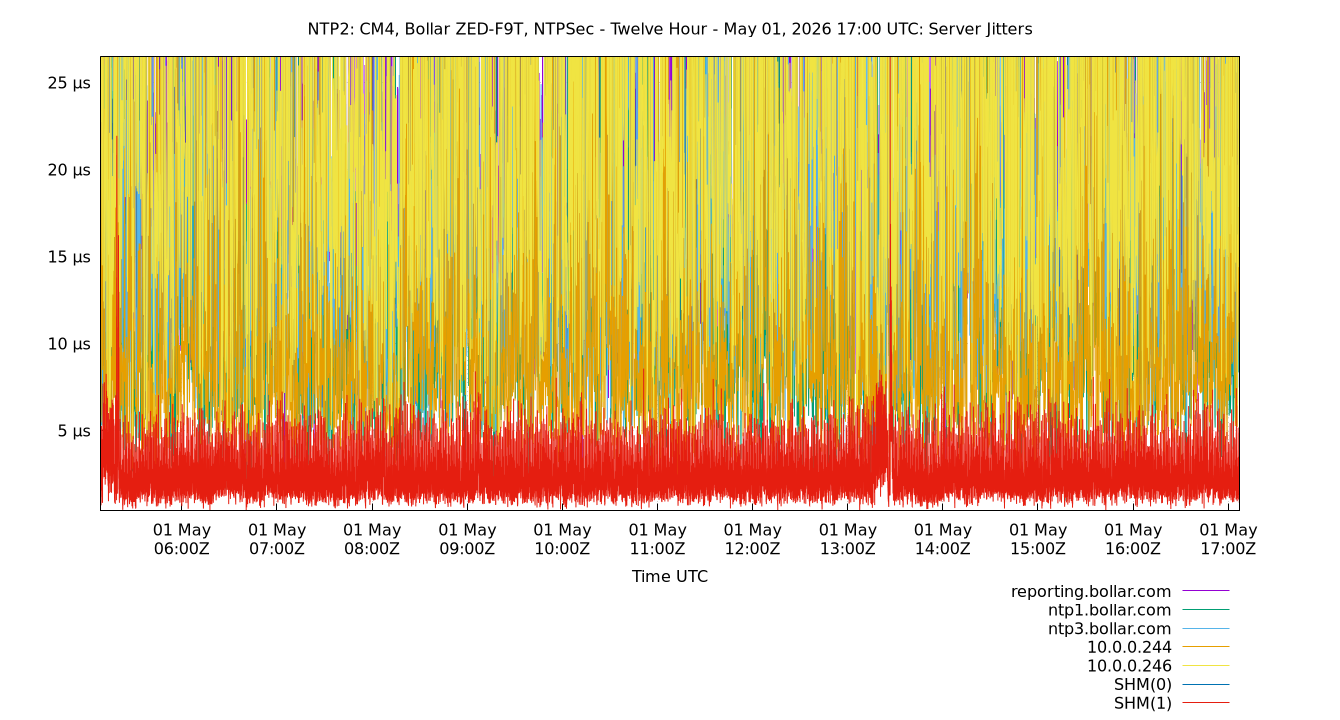

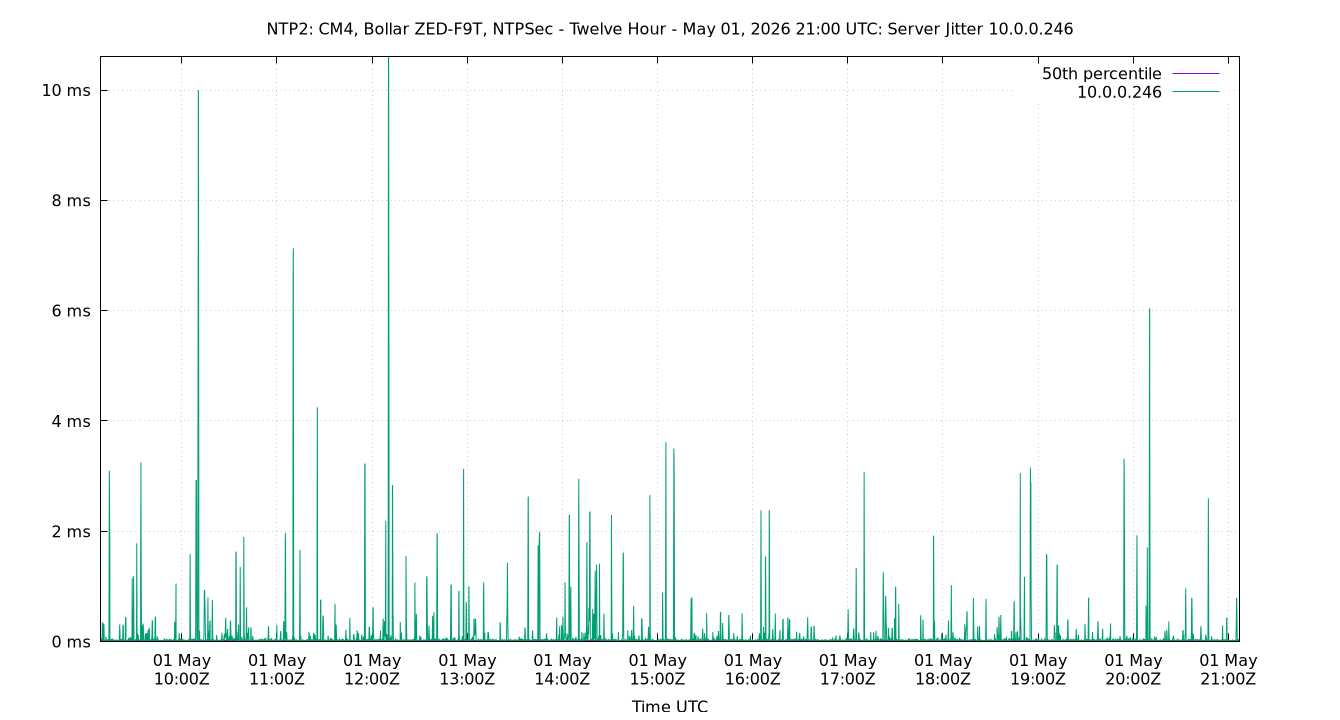

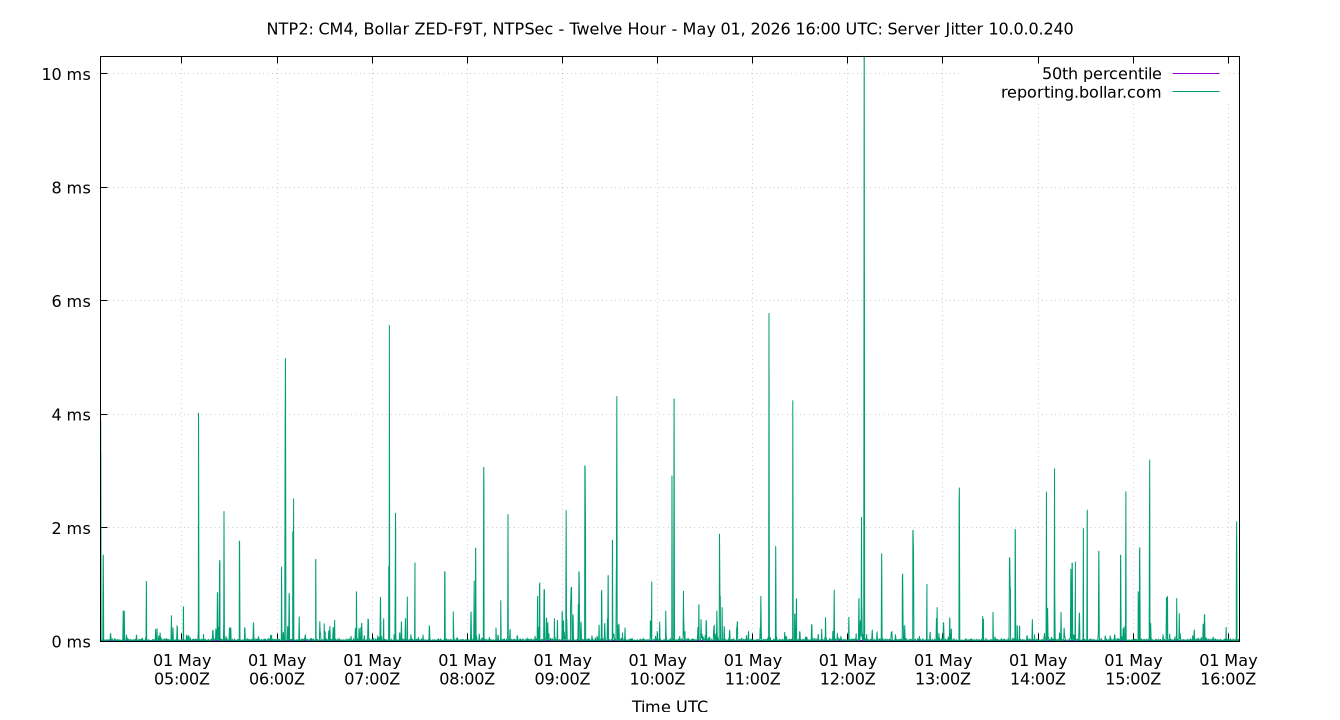

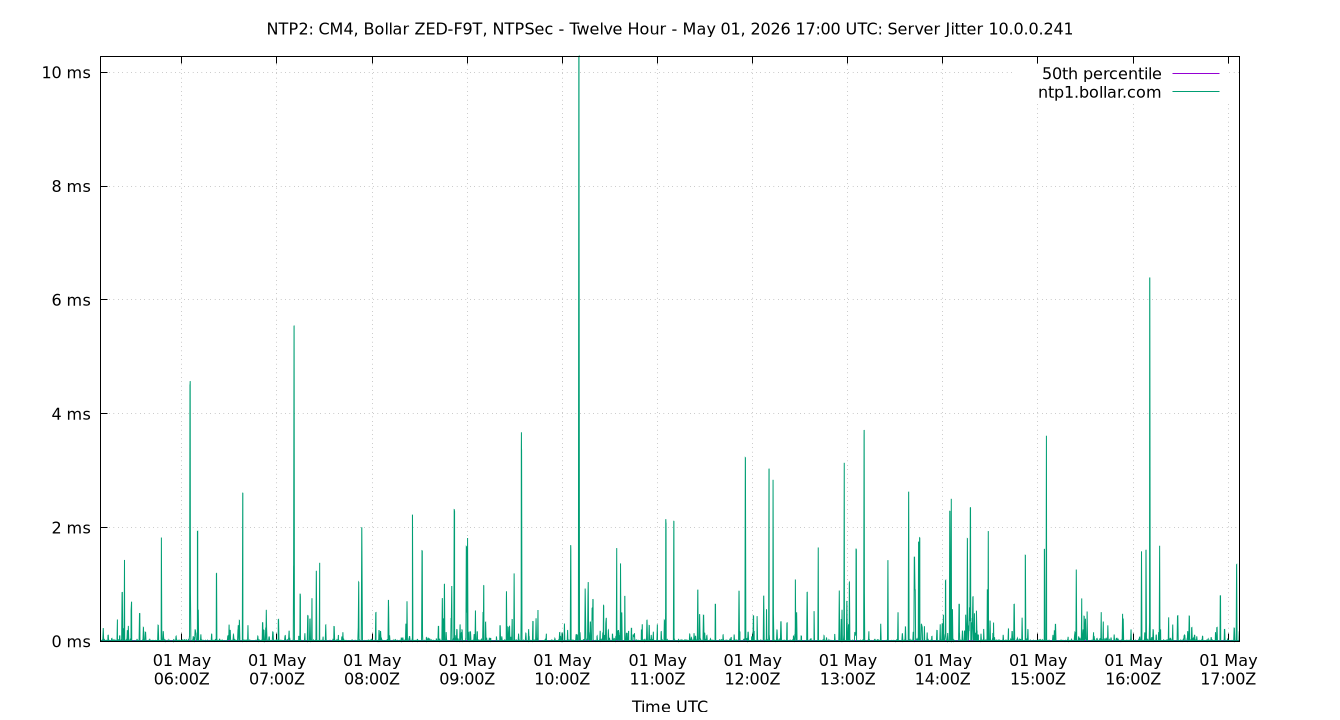

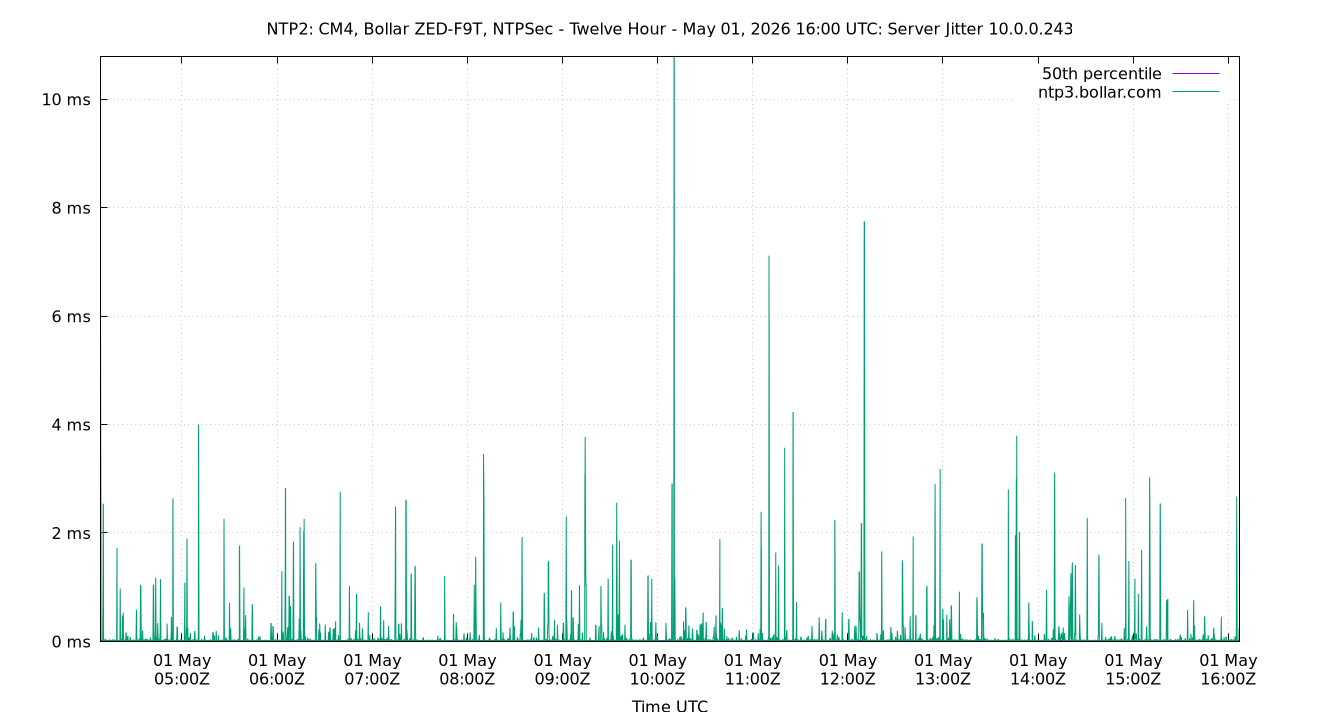

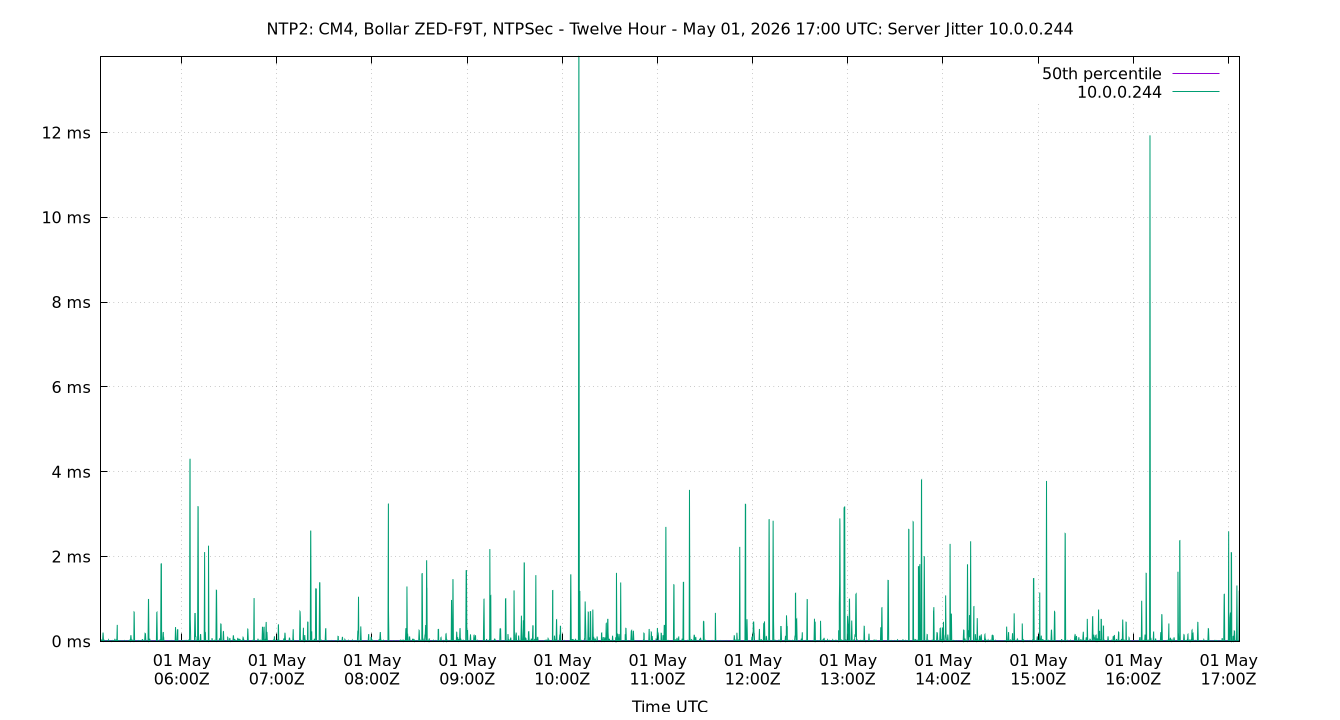

Server Jitters

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.10

peer jitter 10.0.50.10 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.10 1.694 2.479 3.291 7.578 31.477 53.697 520.968 28.186 51.218 28.882 11.569 µs 13.76 210.1

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.100

peer jitter 10.0.50.100 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.100 0.000 0.855 1.286 3.087 6.353 7.680 9.866 5.067 6.825 1.555 3.332 µs 0.8457 3.627

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

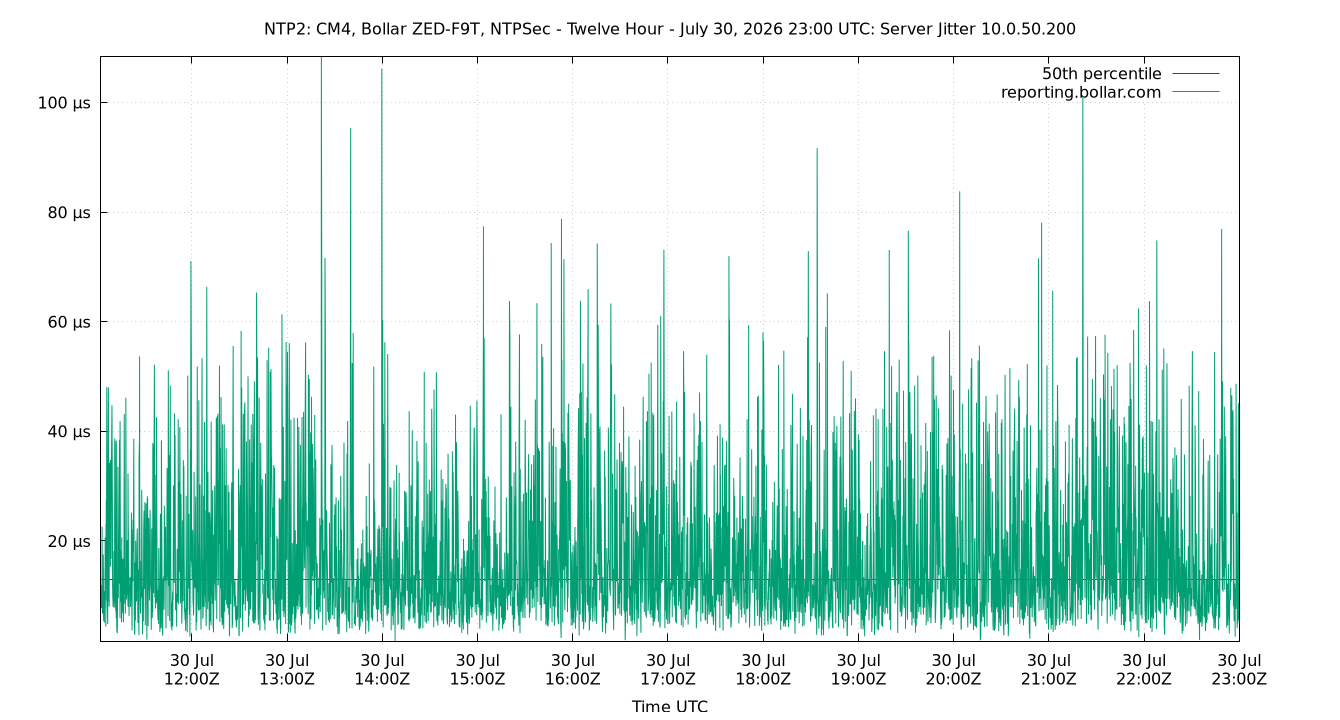

Server Jitter 10.0.50.200

peer jitter 10.0.50.200 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.200 0.000 3.828 5.478 15.197 49.249 68.058 317.334 43.771 64.230 14.780 19.738 µs 3.124 39.63

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

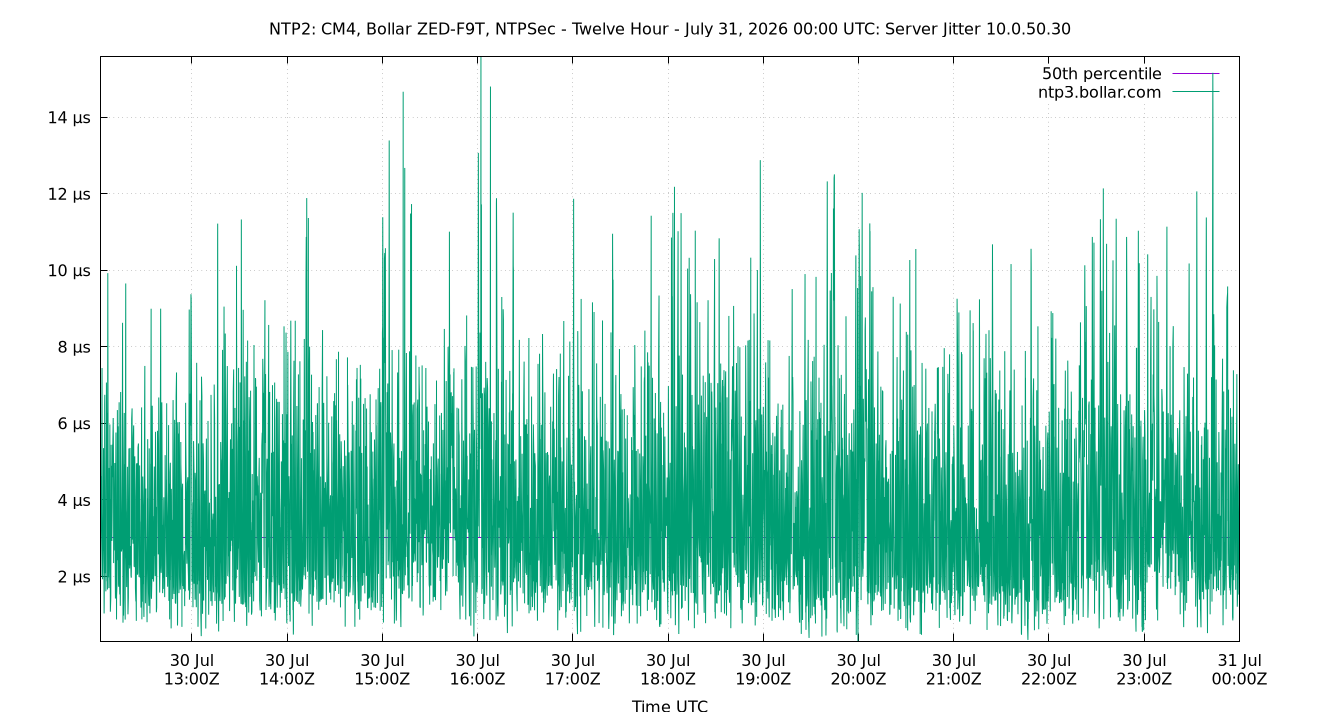

Server Jitter 10.0.50.30

peer jitter 10.0.50.30 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.30 0.000 0.985 1.709 5.769 13.520 19.704 1,068.711 11.811 18.719 16.508 6.844 µs 59.83 3846

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

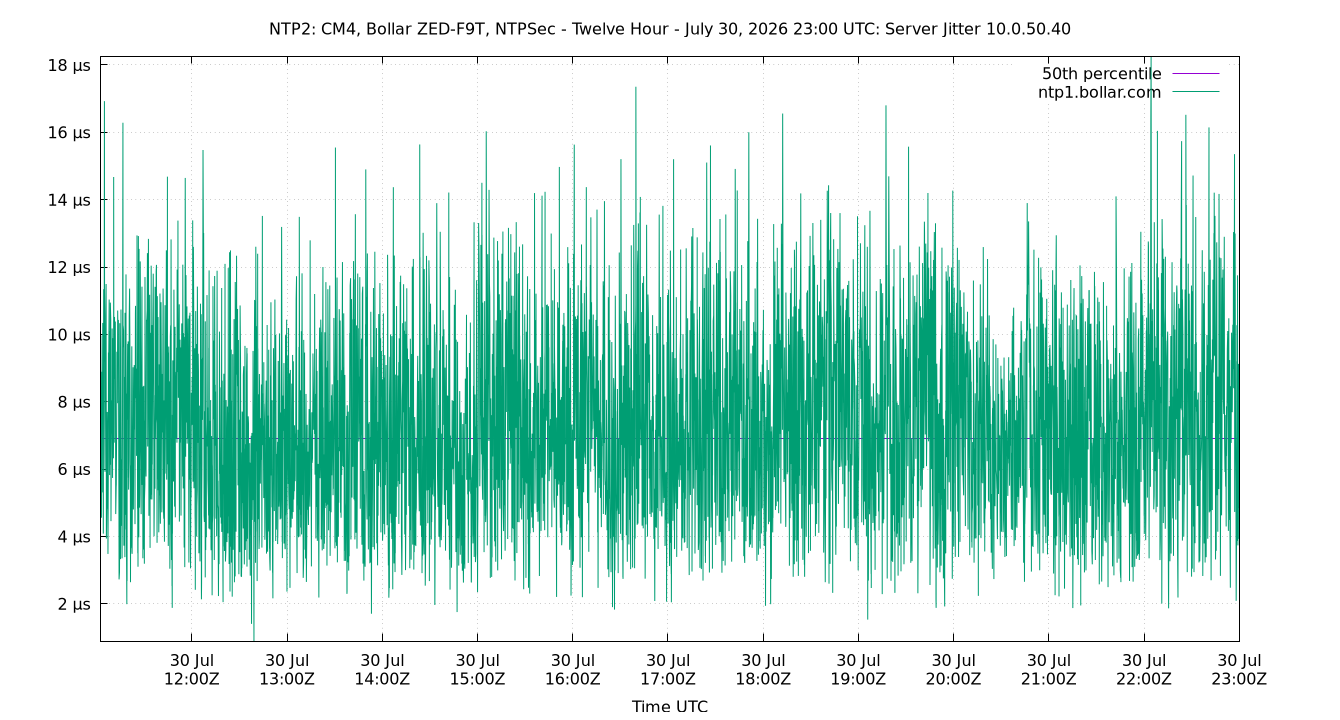

Server Jitter 10.0.50.40

peer jitter 10.0.50.40 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.40 0.000 0.595 0.990 5.363 13.080 16.463 57.918 12.090 15.868 4.699 6.060 µs 2.57 23.59

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 10.0.50.50

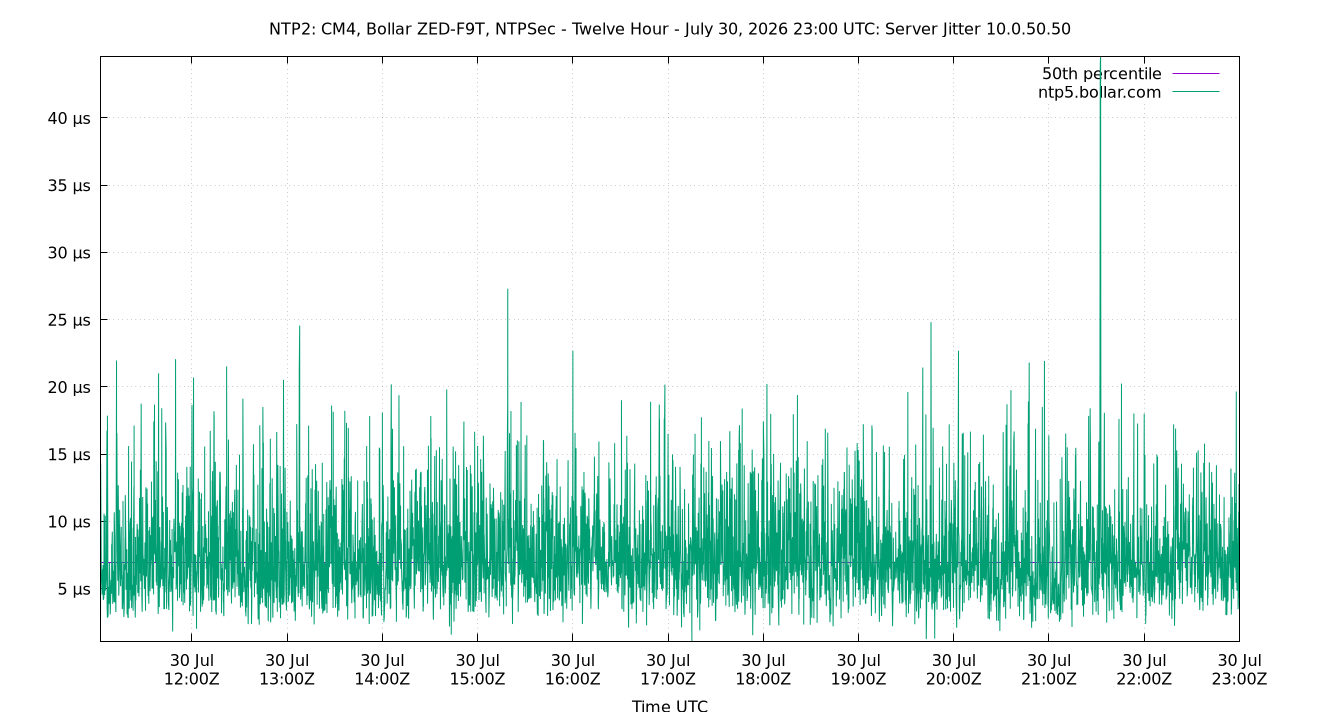

peer jitter 10.0.50.50 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 10.0.50.50 0.000 3.422 4.768 11.833 33.620 98.760 551.815 28.852 95.338 23.605 17.142 µs 13.1 241.3

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2404:e80:8cd6:0:76fe:48ff:fe23:eac3 (2404-e80-8cd6-0-76fe-48ff-fe23-eac3.v6.dyn.launtel.au)

peer jitter 2404:e80:8cd6:0:76fe:48ff:fe23:eac3 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2404:e80:8cd6:0:76fe:48ff:fe23:eac3 (2404-e80-8cd6-0-76fe-48ff-fe23-eac3.v6.dyn.launtel.au) 0.000 1.793 2.919 11.630 30.051 56.637 534.834 27.132 54.844 26.973 15.639 µs 11.97 182.3

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 2404:e80:8cd6:0:a239:75ff:fe00:17 (leontp.bollar.com)

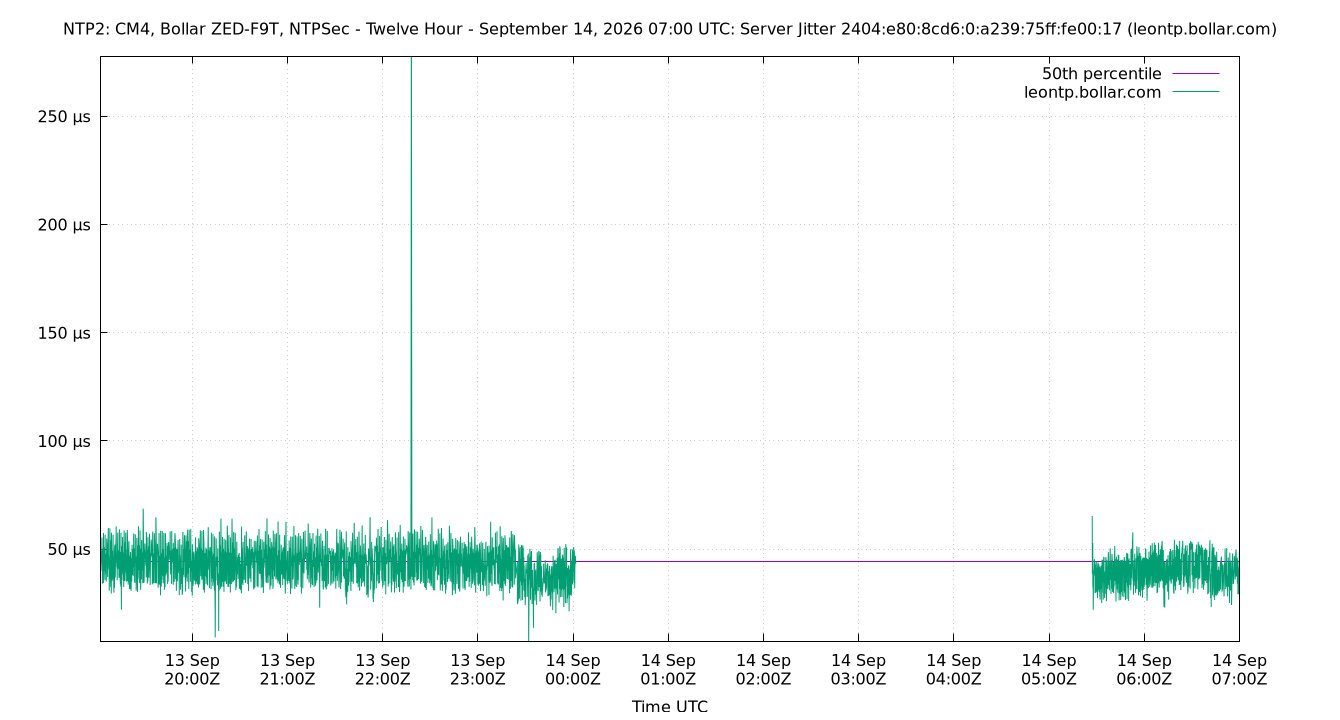

peer jitter 2404:e80:8cd6:0:a239:75ff:fe00:17 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 2404:e80:8cd6:0:a239:75ff:fe00:17 (leontp.bollar.com) 7.402 26.210 31.031 45.552 57.687 61.236 277.727 26.656 35.026 11.054 44.405 µs 8.421 180.4

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

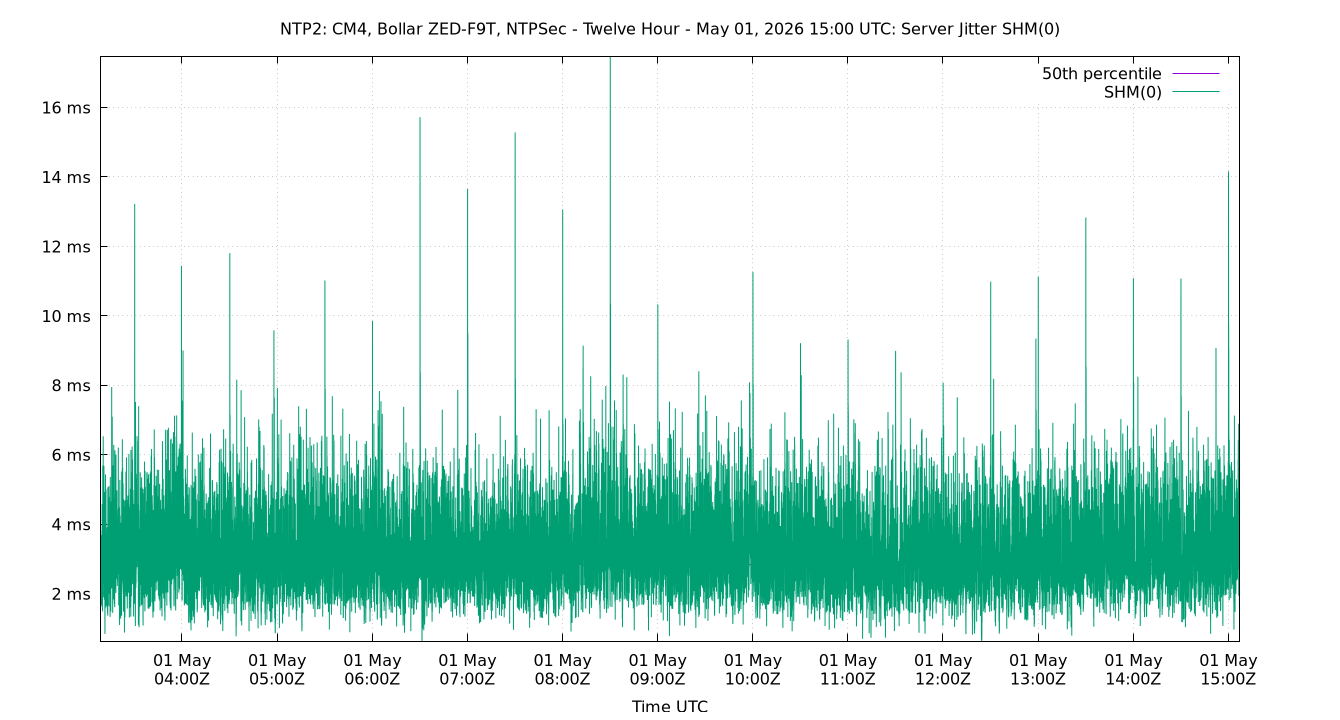

Server Jitter SHM(0)

peer jitter SHM(0) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(0) 0.000 1.378 1.810 3.131 5.956 7.431 155.459 4.145 6.053 2.261 3.459 ms 29.69 1505

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.

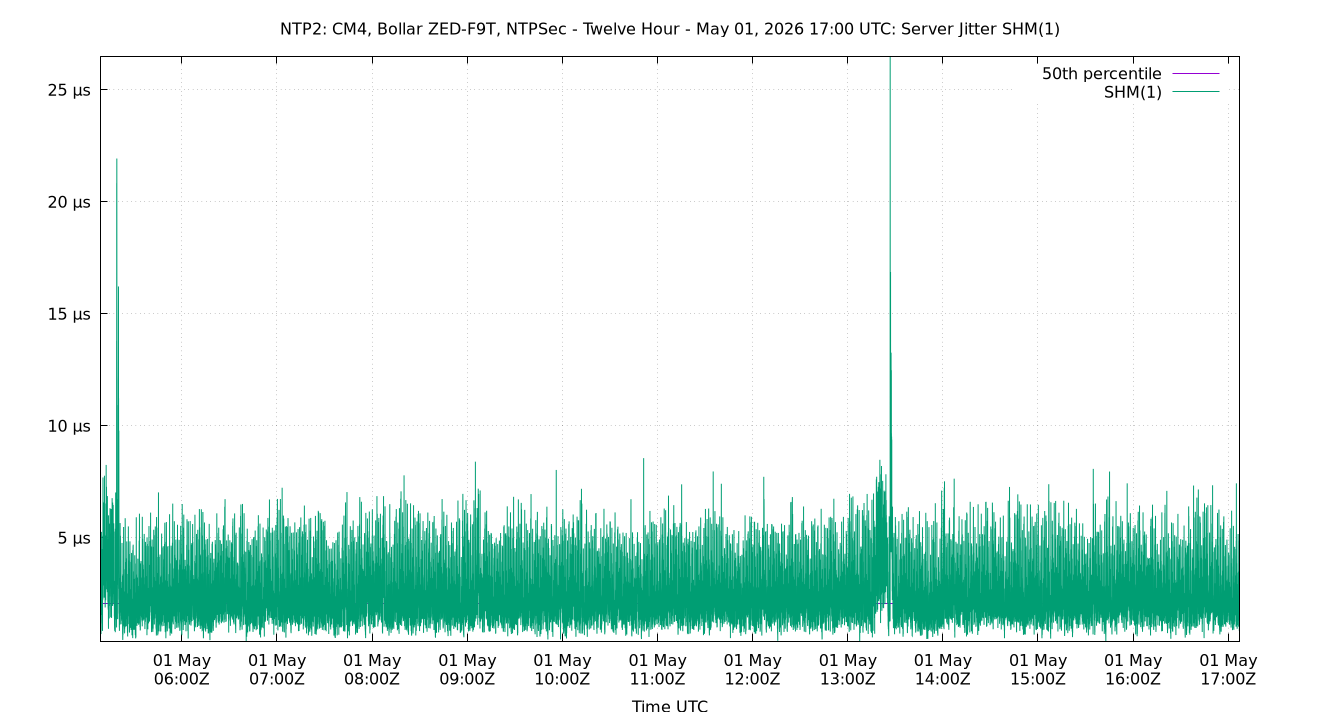

Server Jitter SHM(1)

peer jitter SHM(1) plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter SHM(1) 0.000 0.304 0.426 1.084 2.777 3.669 9.197 2.351 3.365 0.753 1.265 µs 1.444 6.794

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis

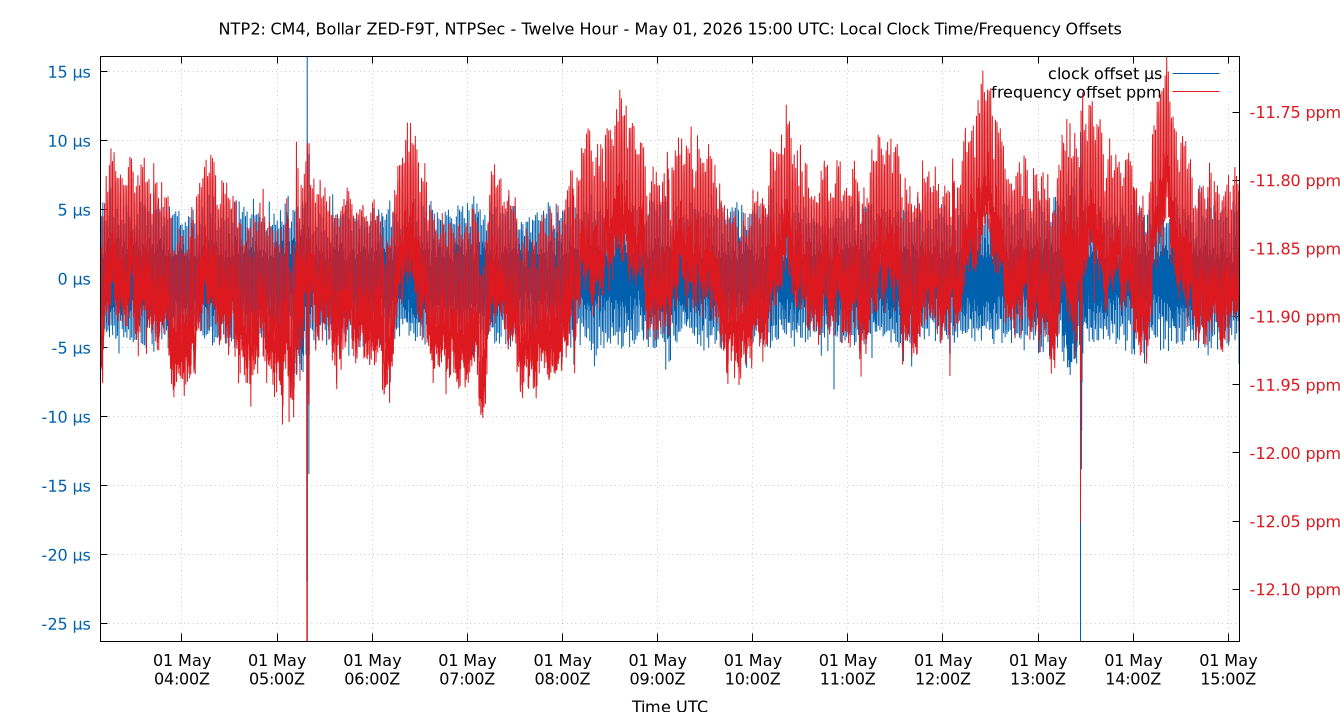

Local Clock Frequency Offset -12.126 -11.612 -11.566 -11.508 -11.094 -11.074 -11.034 0.472 0.538 0.148 -11.446 ppm 1.345 3.98
Local Clock Time Offset -14.737 -2.903 -1.906 0.052 1.637 2.416 11.931 3.543 5.319 1.021 0.005 µs -0.566 7.803
Local RMS Frequency Jitter 0.000 3.919 4.543 7.247 11.580 13.259 165.960 7.037 9.340 4.109 7.692 ppb 19.99 630.9
Local RMS Time Jitter 0.001 0.598 0.690 1.053 1.621 1.868 12.533 0.931 1.270 0.372 1.101 µs 8.614 201
Server Jitter 10.0.50.10 1.694 2.479 3.291 7.578 31.477 53.697 520.968 28.186 51.218 28.882 11.569 µs 13.76 210.1
Server Jitter 10.0.50.100 0.000 0.855 1.286 3.087 6.353 7.680 9.866 5.067 6.825 1.555 3.332 µs 0.8457 3.627
Server Jitter 10.0.50.200 0.000 3.828 5.478 15.197 49.249 68.058 317.334 43.771 64.230 14.780 19.738 µs 3.124 39.63
Server Jitter 10.0.50.30 0.000 0.985 1.709 5.769 13.520 19.704 1,068.711 11.811 18.719 16.508 6.844 µs 59.83 3846
Server Jitter 10.0.50.40 0.000 0.595 0.990 5.363 13.080 16.463 57.918 12.090 15.868 4.699 6.060 µs 2.57 23.59
Server Jitter 10.0.50.50 0.000 3.422 4.768 11.833 33.620 98.760 551.815 28.852 95.338 23.605 17.142 µs 13.1 241.3
Server Jitter 2404:e80:8cd6:0:76fe:48ff:fe23:eac3 (2404-e80-8cd6-0-76fe-48ff-fe23-eac3.v6.dyn.launtel.au) 0.000 1.793 2.919 11.630 30.051 56.637 534.834 27.132 54.844 26.973 15.639 µs 11.97 182.3
Server Jitter 2404:e80:8cd6:0:a239:75ff:fe00:17 (leontp.bollar.com) 7.402 26.210 31.031 45.552 57.687 61.236 277.727 26.656 35.026 11.054 44.405 µs 8.421 180.4
Server Jitter SHM(0) 0.000 1.378 1.810 3.131 5.956 7.431 155.459 4.145 6.053 2.261 3.459 ms 29.69 1505
Server Jitter SHM(1) 0.000 0.304 0.426 1.084 2.777 3.669 9.197 2.351 3.365 0.753 1.265 µs 1.444 6.794
Server Offset 10.0.50.10 -30.343 -23.000 -19.823 -10.154 0.190 4.084 10.830 20.013 27.084 5.652 -10.197 µs 0.0936 3.492
Server Offset 10.0.50.100 -12.696 4.516 5.688 9.391 11.274 11.751 12.682 5.586 7.235 1.989 8.892 µs -2.042 17.6
Server Offset 10.0.50.200 -123.496 -71.374 -46.336 2.616 30.473 40.851 56.123 76.809 112.225 23.978 -1.122 µs -0.8222 3.957
Server Offset 10.0.50.30 -6.241 17.744 20.640 26.485 30.062 31.019 33.061 9.422 13.275 3.099 26.023 µs -0.9714 6.215
Server Offset 10.0.50.40 -20.451 -13.169 -8.840 0.091 4.072 5.031 44.112 12.912 18.200 4.373 -0.760 µs -0.4997 6.395
Server Offset 10.0.50.50 30.705 37.582 41.541 56.296 69.037 73.564 95.649 27.496 35.982 8.844 55.912 µs -0.04485 2.442
Server Offset 2404:e80:8cd6:0:76fe:48ff:fe23:eac3 (2404-e80-8cd6-0-76fe-48ff-fe23-eac3.v6.dyn.launtel.au) -29.039 -15.282 -10.484 5.560 30.150 35.642 42.859 40.634 50.924 12.905 9.018 µs 0.3011 2.256
Server Offset 2404:e80:8cd6:0:a239:75ff:fe00:17 (leontp.bollar.com) 10.623 16.498 18.116 23.844 27.874 29.271 62.733 9.758 12.773 3.275 23.344 µs 0.3003 8.338
Server Offset SHM(0) -248.115 -98.951 -95.955 -89.628 -84.147 -82.233 -78.030 11.807 16.718 3.807 -89.784 ms -4.077 152.7
Server Offset SHM(1) -9.918 -2.903 -1.906 0.053 1.637 2.412 3.860 3.543 5.315 1.013 0.005 µs -0.5155 5.056
TDOP 0.470 0.500 0.520 0.610 0.710 0.780 0.860 0.190 0.280 0.061 0.615 0.3866 3.112
Temp CPU 59.900 60.400 61.800 68.200 69.100 69.600 70.100 7.300 9.200 2.104 67.339 °C
nSats 32.000 33.000 34.000 37.000 39.000 41.000 41.000 5.000 8.000 1.639 36.583 nSat 0.1812 2.967
Summary as CSV file

Our production NTP servers share the same mast-mounted Tallysman Accutenna® TW3972 Triple Band GNSS Antenna + L-band Correction Services antenna using a Tallysman TW164 1-to-4 Port Smart Power GNSS Signal Splitter. No external NTP servers are contacted and all servers, with the exception of NTP6, the LeoNTP 1200, poll each other. Internal NTP clients poll NTP4 or NTP6.

The LeoNTP 1200 is a black-box appliance that doesn't support timing reporting. Its status can be checked by viwing the Server Jitter & Offset from any of the other servers. It can be found at NTP7 or leontp.bollar.com (10.0.50.100). The LeoNTP link above will take you to the Server Jitter between the LeoNTP and the currently selected server.

NTPQ Stats

NTPQ Statistics are not not available for this NTP server.'

GNSS Performance

This server has a u-blox ZED-F9T multiband Timing GNSS Receiver that is configured in Time Mode, using a fixed location, it rejects all fixes calculated to be more than one meter off.

GNSS Performance is not available for this NTP server.'

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
Skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the FIsher-Pearson moment of skewness. There are other different ways to calculate Skewness Wikipedia describes Skewness best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
Kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses standard Kurtosis. There are other different ways to calculate Kurtosis.
A normal distribution has a Kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
